BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) ACTUATOR Parts Diagram

Marine Engine, Made in Japan

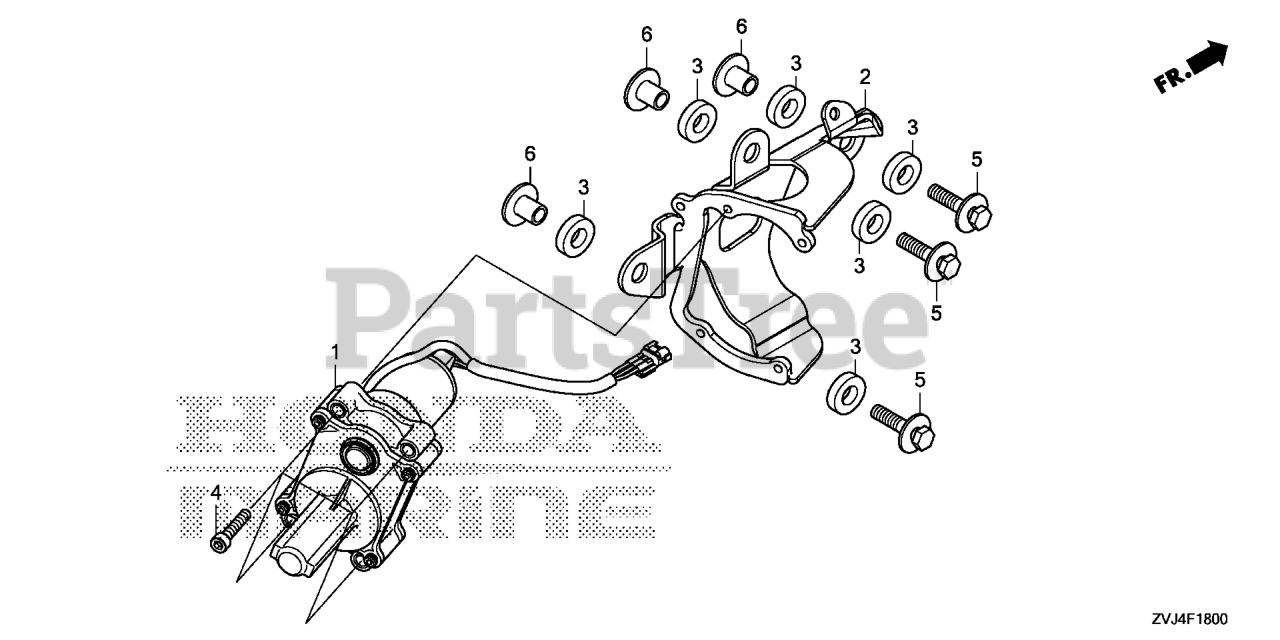

ACTUATOR Parts Diagram

  • Title

1

Honda 36520-ZVL-003

ACTUATOR ASSY., SHIFT

$792.99

$

Usually ships in 3-6 days

0

2

Honda 36521-ZVL-000

BRACKET, SHIFT ACTUATOR

$123.99

$

Usually ships in 3-6 days

0

3

Honda 36522-ZVL-000

RUBBER, CUSHION

$5.49

$

Usually ships in 3-6 days

0

4

Honda 90106-ZVL-000

BOLT, SOCKET (6X30)

Note: Use up to Frame SN 8011124.

$5.99

$

Usually ships in 3-6 days

0

4

Honda 90106-ZVL-010

BOLT, SOCKET (6X30)

Note: Use from Frame SN 8011125.

$5.49

$

Usually ships in 3-6 days

0

5

Honda 90107-ZVL-000

BOLT-WASHER (8X35)

$7.99

$

Usually ships in 3-6 days

0

6

Honda 91504-ZY9-M00

COLLAR (8.5X14.5)

Note: Use up to Frame SN 8011240.

$5.49

$

Usually ships in 3-6 days

0

6

Honda 91504-ZY9-M01

COLLAR (8.5X14.5)
(Superseded to 91504-ZY9-M03)

Note: Use from Frame SN 8011241.

$7.99

$

Usually ships in 3-6 days

0

6

Honda 91504-ZY9-M03

COLLAR (8.5X14.5)

Note: Use from Frame SN 8011241.

$7.99

$

Usually ships in 3-6 days

0
