BF250 D UCDA (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) TIMING BELT Parts Diagram

Marine Engine, Made in Japan

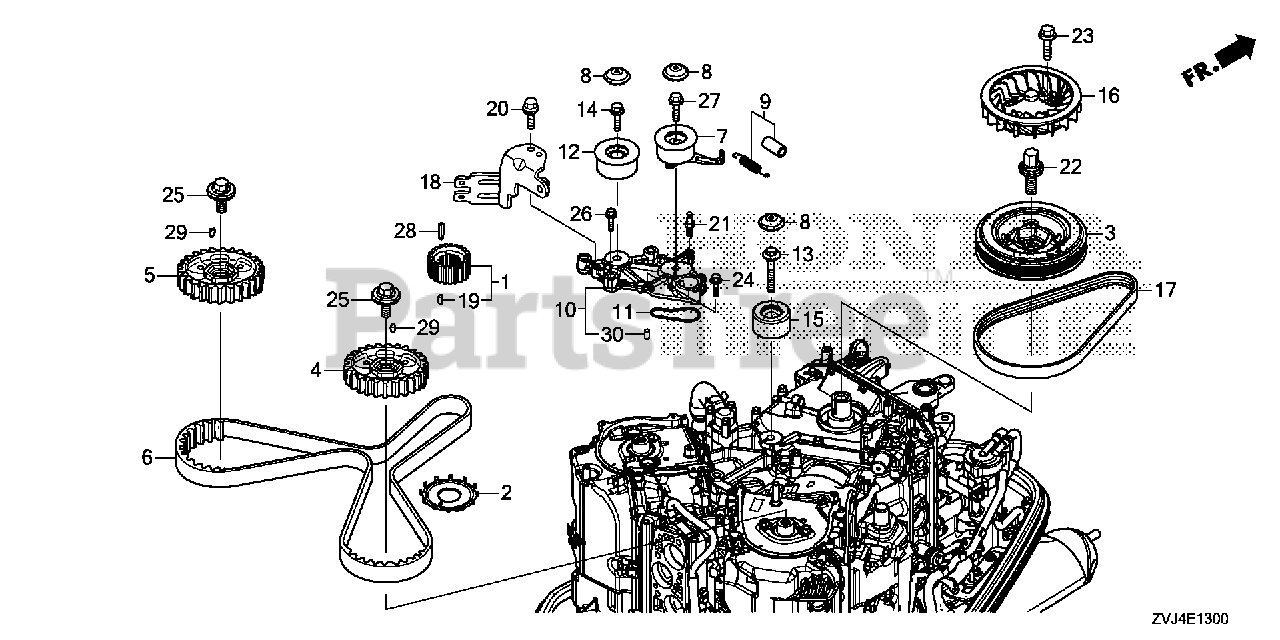

TIMING BELT Parts Diagram

  • Title

1

Honda 13621-ZY3-C01

PULLEY, TIMING BELT DRIVE

$81.99

$

Usually ships in 3-6 days

0

2

Honda 13622-ZVL-000

PLATE, CRANK PULSER

$53.99

$

Usually ships in 3-6 days

0

3

Honda 13811-ZX2-000

PULLEY, CRANKSHAFT

$143.99

$

Usually ships in 3-6 days

0

4

Honda 14261-ZY3-C00

PULLEY, R. TIMING BELT DRIVEN

$115.99

$

Usually ships in 3-6 days

0

5

Honda 14270-ZVL-000

PULLEY, L. TIMING BELT DRIVEN

$150.99

$

Usually ships in 3-6 days

0

6

Honda 14400-P8A-A02

BELT, TIMING (197YU26 GB-323)

$98.99

$

Usually ships in 3-6 days

0

7

Honda 14510-ZY3-003

TENSIONER, TIMING BELT
(Superseded to 14510-ZY3-013)

$154.99

$

Usually ships in 3-6 days

0

8

Honda 14515-ZY3-000

CAP, TIMING BELT TENSIONER

$5.99

$

Usually ships in 3-6 days

0

9

Honda 14520-ZY3-000

SPRING, TIMING BELT ADJUSTING

$6.99

$

Usually ships in 3-6 days

0

10

Honda 14526-ZVL-405ZA

BASE, TIMING BELT TENSIONER *NH8* (DARK GRAY)
(Superseded to 14526-ZVL-415ZA)

$146.99

$

Usually ships in 3-6 days

0

11

Honda 14529-ZY3-000

O-RING, TIMING BELT TENSIONER BASE

$7.49

$

Usually ships in 3-6 days

0

12

Honda 14550-ZY3-003

IDLER, TIMING BELT (KOYO SEIKO)

$139.99

$

Usually ships in 3-6 days

0

13

Honda 14551-P8A-A01

BOLT, IDLER

$17.99

$

Usually ships in 3-6 days

0

14

Honda 14553-ZVL-003

BOLT, TIMING BELT IDLER

$11.99

$

Usually ships in 3-6 days

0

15

Honda 14555-ZY3-003

IDLER B, TIMING BELT

$107.99

$

Usually ships in 3-6 days

0

16

Honda 19511-ZX2-000

FAN, COOLING

$63.99

$

Usually ships in 3-6 days

0

17

Honda 31638-ZY3-003

BELT, ALTERNATOR (6PK745 M-180)

$43.99

$

Usually ships in 3-6 days

0

18

Honda 32111-ZVL-000

BRACKET, CONNECTOR D

$14.99

$

Usually ships in 3-6 days

0

19

Honda 41122-ZV0-000

PIN, VERTICAL SHAFT

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90011-ZZ5-M00

BOLT, FLANGE (6X14) (CT200)
(Superseded to 90011-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90012-ZZ5-M01

BOLT, TIMING BELT ADJUSTING SPRING

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90017-RJA-003

SEE PART DETAILS - PRI; BOLT-WASHER (16X49)

$45.99

$

Usually ships in 3-6 days

0

23

Honda 90017-ZZ5-M00

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

24

Honda 90030-ZZ5-M00

BOLT, FLANGE (6X22)
(Superseded to 90030-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 90031-P8A-A01

BOLT-WASHER (12X35)

$21.99

$

Usually ships in 3-6 days

0

26

Honda 90039-ZVL-000

BOLT, FLANGE (10X40)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90040-ZVL-000

BOLT, FLANGE (10X43)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90704-RCA-A00

KEY (4.5X24)

$11.99

$

Usually ships in 3-6 days

0

29

Honda 90741-ZY3-000

KEY, SPECIAL

$4.99

$

Usually ships in 3-6 days

0

30

Honda 94301-06100

SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256).
