BF250 A XXW (BBJJ) - Honda Marine Engine, Made in Japan (SN: BBJJ-1000001 - BBJJ-9999999) FUEL TUBE (1) Parts Diagram

Marine Engine, Made in Japan

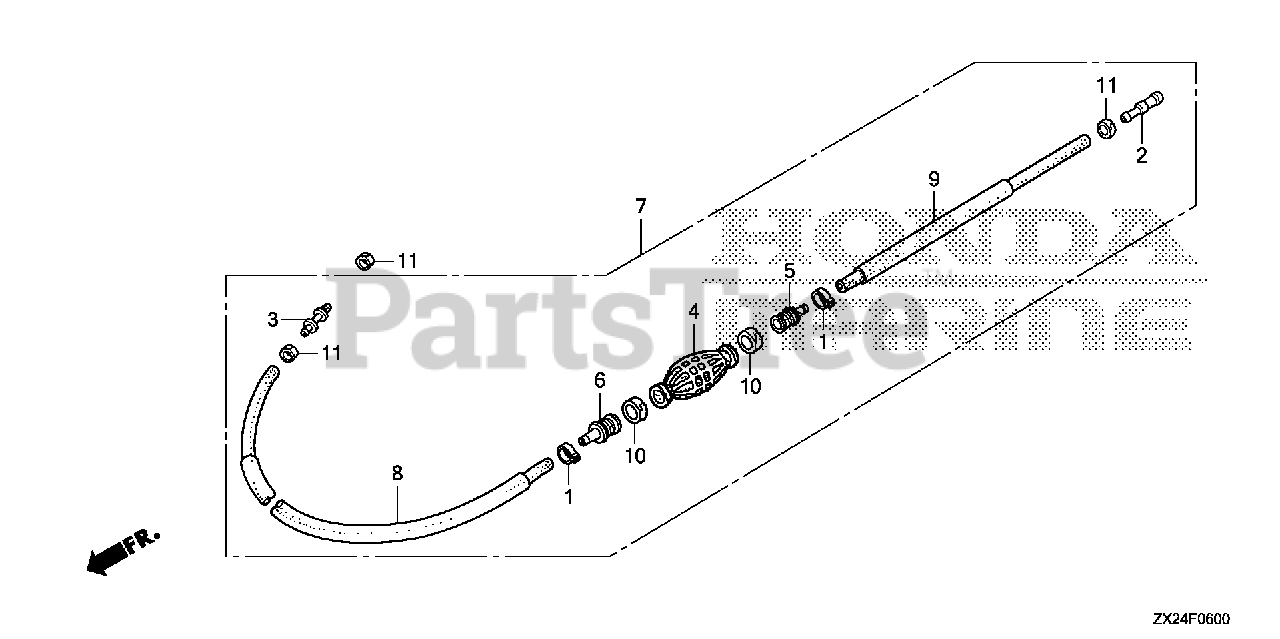

FUEL TUBE (1) Parts Diagram

  • Title
1

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0)

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16966-MR1-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

3

Honda 16966-MR5-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

4

Honda 17661-ZW9-900

BULB, PRIMER

$65.99

$

Usually ships in 3-6 days

0

5

Honda 17665-ZX2-003

VALVE, IN.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 17680-ZX2-003

VALVE, OUTLET

$14.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZX2-C01

TUBE ASSY., FUEL TANK
(Superseded to 17700-ZX2-C02)

$265.99

$

Usually ships in 3-6 days

0

8

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

$132.99

$

Usually ships in 3-6 days

0

9

Honda 17702-ZY9-E04

TUBE, FUEL SHORT

$33.99

$

Usually ships in 3-6 days

0

10

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0
