BF250 A XXW (BBJJ) - Honda Marine Engine, Made in Japan (SN: BBJJ-1000001 - BBJJ-9999999) CAMSHAFT + ROCKER ARM Parts Diagram

Marine Engine, Made in Japan

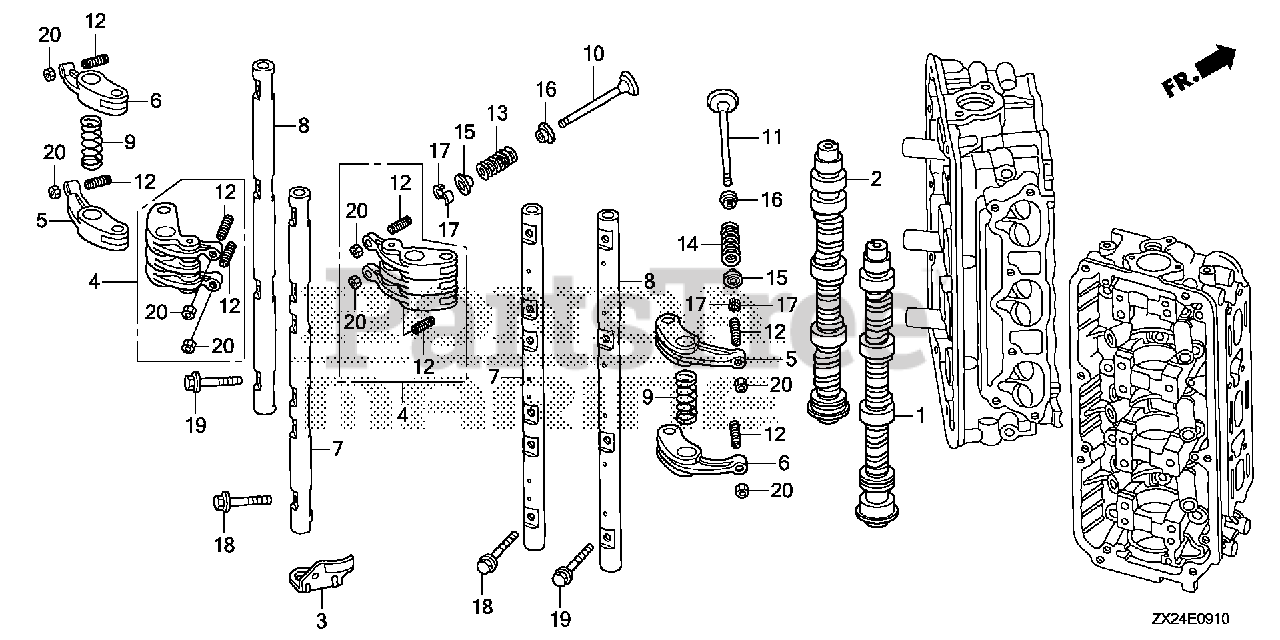

CAMSHAFT + ROCKER ARM Parts Diagram

  • Title

1

Honda 14111-ZX2-000

CAMSHAFT, R.

$560.99

$

Usually ships in 3-6 days

0

2

Honda 14211-ZX2-000

CAMSHAFT, L.

$560.99

$

Usually ships in 3-6 days

0

3

Honda 14436-ZY3-000

ARM, FUEL PUMP ROCKER

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14620-P8A-A01

ARM ASSY., IN. ROCKER

$603.99

$

Usually ships in 3-6 days

0

5

Honda 14626-P8A-A00

ARM A, EX. ROCKER

$57.99

$

Usually ships in 3-6 days

0

6

Honda 14627-P8A-A00

ARM B, EX. ROCKER

$57.99

$

Usually ships in 3-6 days

0

7

Honda 14631-P8A-A00

SHAFT, IN. ROCKER ARM

$148.99

$

Usually ships in 3-6 days

0

8

Honda 14632-RCA-A00

SHAFT, EX. ROCKER ARM

$140.99

$

Usually ships in 3-6 days

0

9

Honda 14645-P8A-A01

SPRING, ROCKER ARM

$1.99

$

Usually ships in 3-6 days

0

10

Honda 14711-RJA-000

VALVE, IN.

$52.99

$

Usually ships in 3-6 days

0

11

Honda 14721-RJA-E00

VALVE, EX.

$53.99

$

Usually ships in 3-6 days

0

12

Honda 14744-PT0-004

SCREW, TAPPET ADJUSTING

$11.99

$

Usually ships in 3-6 days

0

13

Honda 14761-RKG-003

SPRING, VALVE (PINK) (NIPPON HATSUJO)

$16.99

$

Usually ships in 3-6 days

0

14

Honda 14762-P8E-A02

SPRING, EX. VALVE (YEL/GRN) (ASSOCIATE)

$20.99

$

Usually ships in 3-6 days

0

15

Honda 14765-RDV-J00

RETAINER, VALVE SPRING

$8.99

$

Usually ships in 3-6 days

0

16

Honda 14775-PM3-000

SEAT, VALVE SPRING

$8.99

$

Usually ships in 3-6 days

0

17

Honda 14781-RGM-A01

COTTER, VALVE (FUJI VALVE)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90003-P8A-A00

BOLT, FLANGE (8X30)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90004-P8A-A00

BOLT, FLANGE (8X40)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90206-PT0-004

NUT, TAPPET ADJUSTING

$4.99

$

Usually ships in 3-6 days

0
