BF250 A XCA (BBJJ) - Honda Marine Engine, Made in Japan (SN: BBJJ-8000001 - BBJJ-9999999) INTAKE MANIFOLD Parts Diagram

Marine Engine, Made in Japan

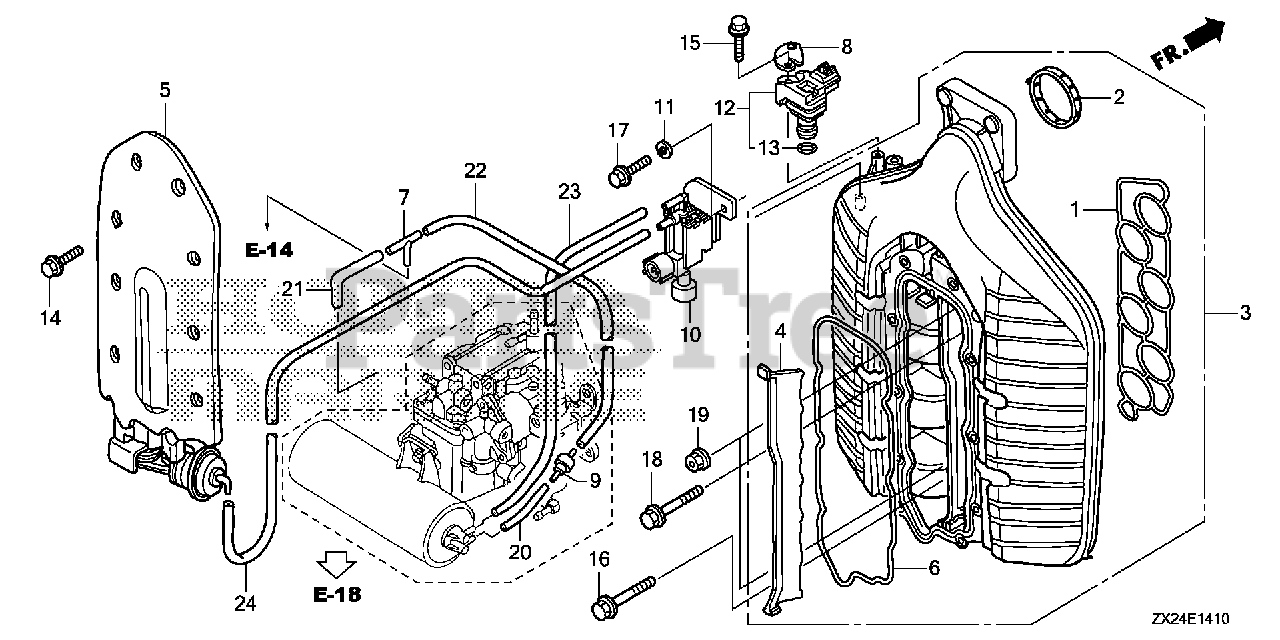

INTAKE MANIFOLD Parts Diagram

  • Title
1

Honda 17105-ZY3-004

GASKET, IN. MANIFOLD

$83.99

$

Usually ships in 3-6 days

0

2

Honda 17109-ZY3-004

GASKET, THROTTLE BODY

$15.99

$

Usually ships in 3-6 days

0

3

Honda 17110-ZY3-003

MANIFOLD, IN.

$2078.99

$

Usually ships in 3-6 days

0

4

Honda 17113-ZY3-003

PLATE, IN. MANIFOLD CENTER

$96.99

$

Usually ships in 3-6 days

0

5

Honda 17130-ZY3-003ZA

COVER, IN. MANIFOLD *NH8* (DARK GRAY)

$754.99

$

Usually ships in 3-6 days

0

6

Honda 17138-ZY3-004

GASKET, IN. MANIFOLD UP COVER

$69.99

$

Usually ships in 3-6 days

0

7

Honda 17201-MG9-000

JOINT A, VACUUM TUBE

$20.99

$

Usually ships in 3-6 days

0

8

Honda 32128-ZY3-000

BRACKET, SENSOR WIRE

$4.49

$

Usually ships in 3-6 days

0

9

Honda 36145-PM4-004

VALVE, CHECK

$72.99

$

Usually ships in 3-6 days

0

10

Honda 36163-ZY3-003

VALVE ASSY., AIR BYPASS

$120.99

$

Usually ships in 3-6 days

0

11

Honda 36165-P8D-J00

WASHER, CONICAL SPRING (5)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 37830-RNA-A01

SENSOR ASSY., MAP

$114.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90023-ZY3-000

BOLT, FLANGE (6X22)
(Superseded to 90023-ZVL-010)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90029-ZY3-000

BOLT-WASHER (5X18)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 90058-ZY3-000

BOLT, FLANGE (5X10)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90156-ZW4-000

BOLT, FLANGE (8X50)
(Superseded to 90020-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90205-ZY3-000

NUT, FLANGE (8MM)
(Superseded to 90205-ZY9-M01)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X40)

$31.99

$

In Stock, only 1 left!

0

21

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X130)

$31.99

$

In Stock, only 1 left!

0

22

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X540)

$31.99

$

In Stock, only 1 left!

0

23

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X590)

$31.99

$

In Stock, only 1 left!

0

24

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X600)

$31.99

$

In Stock, only 1 left!

0
