BF250 A XCA (BBJJ) - Honda Marine Engine, Made in Japan (SN: BBJJ-8000001 - BBJJ-9999999) ELECTRONIC CONTROL UNIT Parts Diagram

Marine Engine, Made in Japan

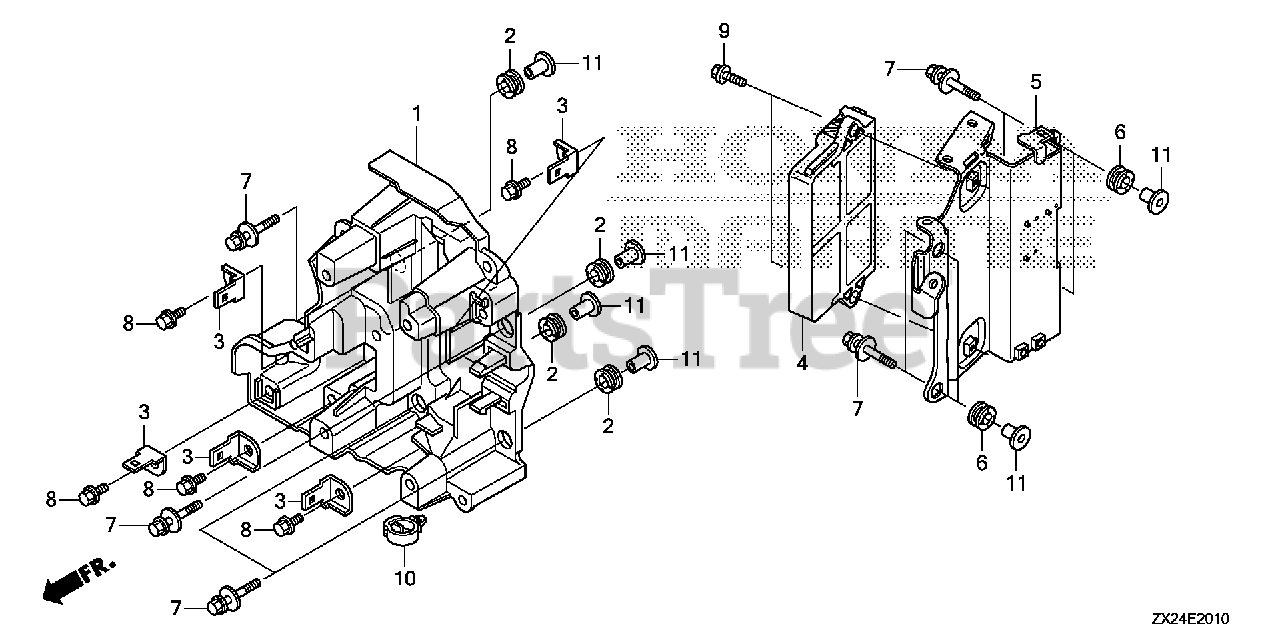

ELECTRONIC CONTROL UNIT Parts Diagram

  • Title

1

Honda 30416-ZX2-000

CASE, ELECTRONIC PARTS

$102.99

$

Usually ships in 3-6 days

0

2

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$6.49

$

Usually ships in 3-6 days

0

3

Honda 32101-ZZ3-000

BRACKET, ALTERNATOR FUSE
(Superseded to 32101-ZZ3-010)

$7.49

$

Usually ships in 3-6 days

0

4

Honda 34750-ZX2-043

CONTROL UNIT, ELECTRONIC
(Superseded to 34750-ZX2-053)

Note: Use up to Engine SN 1009540.

$1576.99

$

Usually ships in 3-6 days

0

4

Honda 34750-ZX2-053

CONTROL UNIT, ELECTRONIC

Note: Use from Engine SN 1009541.

$1576.99

$

Usually ships in 3-6 days

0

5

Honda 34754-ZY3-C00

BRACKET, ECU

$123.99

$

Usually ships in 3-6 days

0

6

Honda 38553-ZY9-003

GROMMET, RELAY BRACKET

$6.49

$

Usually ships in 3-6 days

0

7

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)
(Superseded to 90003-ZZ5-M01)

Note: Use up to Engine SN 1007687.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90004-ZY3-000

BOLT-WASHER (6X27)

Note: Use from Engine SN 1007688.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0
