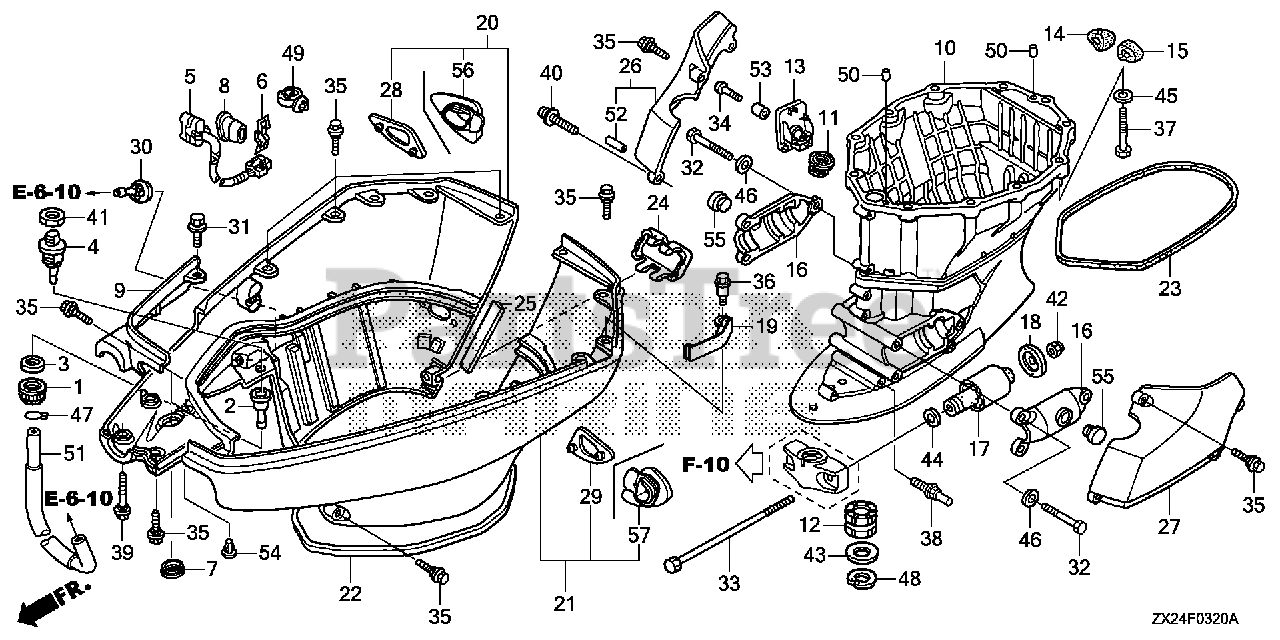

BF250 A LW (BBJJ) - Honda Marine Engine, Made in Japan (SN: BBJJ-1000001 - BBJJ-9999999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

EXTENSION CASE Parts Diagram

  • Title

1

Honda 19270-ZY3-000

NUT, WATER MOUTH

$17.99

$

Usually ships in 3-6 days

0

2

Honda 19271-ZY3-000

JOINT, WATER HOSE

$11.99

$

Usually ships in 3-6 days

0

3

Honda 19272-ZY3-000

SEAT, WATER MOUTH

$5.49

$

Usually ships in 3-6 days

0

4

Honda 19289-ZY3-000

CAP, WATER JOINT

$3.99

$

Usually ships in 3-6 days

0

5

Honda 35640-ZY3-013

SEE PART DETAILS - PRI; SWITCH ASSY., POWER TILT

$66.99

$

Usually ships in 3-6 days

0

6

Honda 35645-ZY3-000

STAY, POWER TILT SWITCH

$12.99

$

In Stock, only 1 left!

0

7

Honda 40107-ZV5-000

GROMMET, CASE (LOWER) (C)

$7.99

$

Usually ships in 3-6 days

0

8

Honda 40114-ZY3-010

SEE PART DETAILS - PRI; GROMMET, POWER TILT SWITCH

$15.99

$

Usually ships in 3-6 days

0

9

Honda 40151-ZY3-000ZB

COVER, FR. SEPARATE *NHB14M* (AQUA MARINE SILVER METALLIC)

$190.99

$

Usually ships in 3-6 days

0

9

Honda 40151-ZY3-000ZD

COVER, FR. SEPARATE *NH565* (GRAND PRIX WHITE)

$184.99

$

Usually ships in 3-6 days

0

10

Honda 40201-ZY3-020ZB

CASE, EXTENSION *NHB14M* (AQUA MARINE SILVER METALLIC)

$1547.99

$

Usually ships in 3-6 days

0

10

Honda 40201-ZY3-020ZD

CASE, EXTENSION *NH565* (GRAND PRIX WHITE)

$1315.99

$

Usually ships in 3-6 days

0

11

Honda 40209-ZW1-000

RUBBER, DRAIN PLUG

$19.99

$

Usually ships in 3-6 days

0

13

Honda 40212-ZY3-010ZB

COVER, DRAIN PLUG *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

$47.99

$

Usually ships in 3-6 days

0

13

Honda 40212-ZY3-010ZD

COVER, DRAIN PLUG *NH565* (L) (GRAND PRIX WHITE)

$46.99

$

Usually ships in 3-6 days

0

14

Honda 40225-ZY3-010

SEAL, R. IDOL PORT

Note: Use up to Frame SN 1004857.

$11.99

$

Usually ships in 3-6 days

0

15

Honda 40226-ZY3-010

SEAL, L. IDOL PORT

Note: Use up to Frame SN 1004857.

$11.99

$

Usually ships in 3-6 days

0

16

Honda 50111-ZY3-020

SEE PART DETAILS - PRI; HOUSING, MOUNTING (LOWER)

$91.99

$

Usually ships in 3-6 days

0

17

Honda 50155-ZY3-000

MOUNT, RUBBER (LOWER)

$116.99

$

Usually ships in 3-6 days

0

18

Honda 50157-ZY3-010

STOPPER, MOUNT (LOWER)

$18.99

$

Usually ships in 3-6 days

0

19

Honda 63347-ZY3-C00

COVER, PLUG MAINTENANCE

$9.49

$

Usually ships in 3-6 days

0

20

Honda 63710-ZX2-C01ZA

COVER, R. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$414.99

$

Usually ships in 3-6 days

0

20

Honda 63710-ZX2-C01ZC

COVER, R. ENGINE (LOWER) *NH565* (GRAND PRIX WHITE)

Note: Use from Frame SN 1004858.

$435.99

$

Usually ships in 3-6 days

0

21

Honda 63715-ZX2-C00ZA

SEE PART DETAILS - SUP; COVER, L. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)
(Superseded to 63715-ZX2-C01ZA)

Note: Use up to Frame SN 1004857.

$404.99

$

Usually ships in 3-6 days

0

21

Honda 63715-ZX2-C01ZA

SEE PART DETAILS - PRI; COVER, L. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$404.99

$

Usually ships in 3-6 days

0

21

Honda 63715-ZX2-C01ZC

COVER, L. ENGINE (LOWER) *NH565* (GRAND PRIX WHITE)

Note: Use from Frame SN 1004858.

$423.99

$

Usually ships in 3-6 days

0

22

Honda 63718-ZY3-000

SEAL A, COVER (LOWER)

$38.99

$

Usually ships in 3-6 days

0

23

Honda 63719-ZX2-C00

SEAL B, COVER (LOWER)

$15.99

$

Usually ships in 3-6 days

0

24

Honda 63722-ZY3-010ZB

CAP, COVER (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$51.99

$

Usually ships in 3-6 days

0

24

Honda 63722-ZY3-010ZD

CAP, COVER (LOWER) *NH565* (GRAND PRIX WHITE)

$42.99

$

Usually ships in 3-6 days

0

25

Honda 63728-ZY3-000

SEAL C, COVER (LOWER)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 63731-ZY3-A03ZB

COVER, R. MOUNTING (LOWER) *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

$204.99

$

Usually ships in 3-6 days

0

26

Honda 63731-ZY3-A03ZD

COVER, R. MOUNTING (LOWER) *NH565* (L) (GRAND PRIX WHITE)

$179.99

$

Usually ships in 3-6 days

0

27

Honda 63736-ZY3-A03ZB

COVER, L. MOUNTING (LOWER) *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

$204.99

$

Usually ships in 3-6 days

0

27

Honda 63736-ZY3-A03ZD

COVER, L. MOUNTING (LOWER) *NH565* (L) (GRAND PRIX WHITE)

$179.99

$

Usually ships in 3-6 days

0

28

Honda 63751-ZY3-C01

SEE PART DETAILS - PRI; GROMMET, R. IDLE PORT

Note: Use up to Frame SN 1004857.

$8.99

$

Usually ships in 3-6 days

0

29

Honda 63756-ZY3-C01

SEE PART DETAILS - PRI; GROMMET, L. IDLE PORT

Note: Use up to Frame SN 1004857.

$8.99

$

Usually ships in 3-6 days

0

30

Honda 82873-ZV5-003

GROMMET, WATER CHECK

$7.99

$

Usually ships in 3-6 days

0

31

Honda 90102-ZX2-C00

BOLT-WASHER (6X25)

$3.99

$

Usually ships in 3-6 days

0

32

Honda 90102-ZY3-A00

BOLT, HEX. (10X35)

$8.49

$

Usually ships in 3-6 days

0

33

Honda 90105-ZY3-010

BOLT, HEX. (14X180)

$80.99

$

Usually ships in 3-6 days

0

34

Honda 90110-ZV5-000

SCREW, SPECIAL (6X35)

$4.49

$

In Stock, only 1 left!

0

35

Honda 90111-ZY3-000

BOLT, SPECIAL (6X17)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90113-ZY3-C00

BOLT, SPECIAL (6X22)

$13.99

$

Usually ships in 3-6 days

0

37

Honda 90122-ZY3-000

BOLT, HEX. (12X50)

$8.49

$

Usually ships in 3-6 days

0

38

Honda 90129-ZY3-A00

BOLT, SPECIAL (6X12)

$3.49

$

Usually ships in 3-6 days

0

39

Honda 90132-ZY3-000

BOLT, SPECIAL (6X37)

$4.49

$

Usually ships in 3-6 days

0

40

Honda 90134-ZY3-000

SCREW-WASHER (6X40)

$4.49

$

Usually ships in 3-6 days

0

41

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

42

Honda 90302-ZY3-000

NUT, SELF-LOCK (14MM)

$31.99

$

Usually ships in 3-6 days

0

44

Honda 90511-ZY3-000

WASHER, PLAIN (14MM)

$4.99

$

Usually ships in 3-6 days

0

45

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

46

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

47

Honda 90605-ZV4-000

CLIP, TUBE (B12.5)

$1.99

$

Usually ships in 3-6 days

0

49

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

50

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

51

Honda 91451-ZY3-000

TUBE, WATER JOINT

$14.99

$

Usually ships in 3-6 days

0

52

Honda 91552-ZY3-000

COLLAR (6.2X10X25.5)

$5.99

$

Usually ships in 3-6 days

0

53

Honda 91563-ZV5-000

COLLAR, DISTANCE (6X10.5X25)

$8.49

$

Usually ships in 3-6 days

0

54

Honda 91651-ZY3-003

PLUG, HOLE (5MM)

$1.99

$

Usually ships in 3-6 days

0

55

Honda 95011-63000

RUBBER C, STAND STOPPER

$5.49

$

Usually ships in 3-6 days

0

56

Honda 63751-ZY3-C01

SEE PART DETAILS - PRI; GROMMET, R. IDLE PORT

Note: Use from Frame SN 1004858.

$8.99

$

Usually ships in 3-6 days

0

57

Honda 63756-ZY3-C01

SEE PART DETAILS - PRI; GROMMET, L. IDLE PORT

Note: Use from Frame SN 1004858.

$8.99

$

Usually ships in 3-6 days

0
