BF25 DK2 LRTA (BATJ) - Honda Marine Engine, Made in Japan (SN: BATJ-1400001 - BATJ-9999999) CYLINDER BLOCK Parts Diagram

Marine Engine, Made in Japan

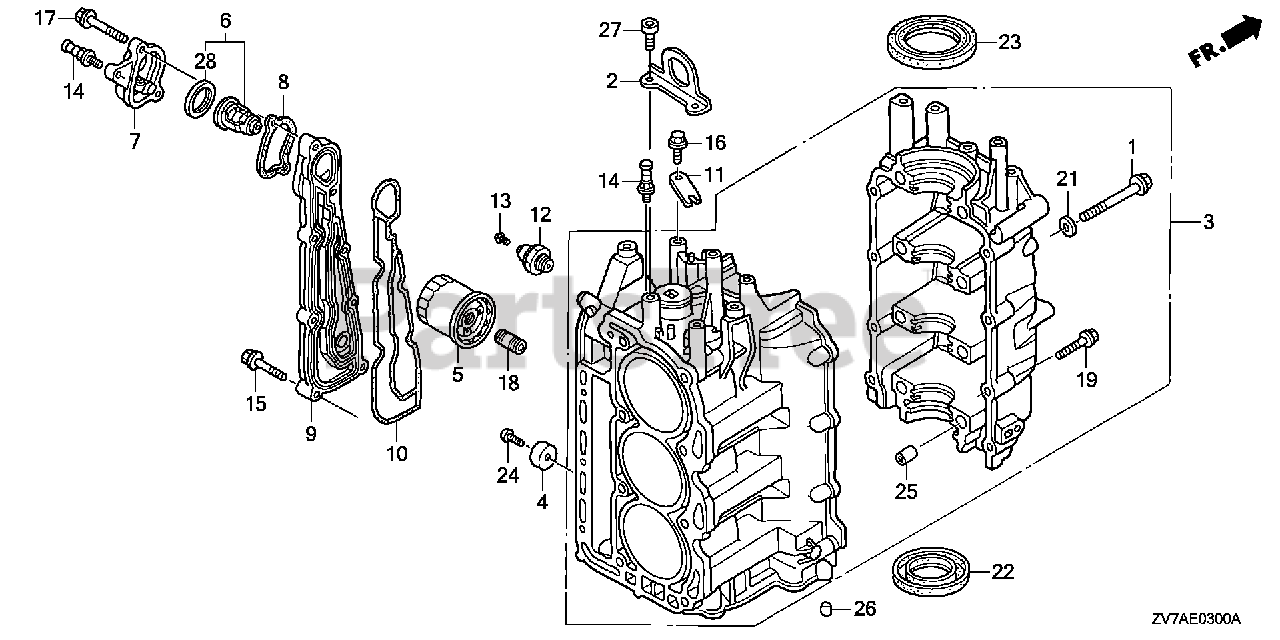

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11115-ZV7-010

BOLT, FLANGE (8X85)

$4.49

$

Usually ships in 3-6 days

0

2

Honda 11911-ZV7-020

HANGER, ENGINE

$12.99

$

Usually ships in 3-6 days

0

3

Honda 12000-ZW2-415ZA

BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

$1458.99

$

Usually ships in 3-6 days

0

4

Honda 12155-ZV5-000

METAL, ANODE
(Superseded to 12155-ZV5-010)

$14.99

$

In Stock, only 3 left!

0

5

Honda 15400-PFB-014

SEE PART DETAILS - PRI; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

$24.99

$

Usually ships in 3-6 days

0

6

Honda 19300-ZW9-003

THERMOSTAT ASSY.

$63.99

$

Usually ships in 3-6 days

0

7

Honda 19315-ZV5-010

COVER, THERMOSTAT

$37.99

$

Usually ships in 3-6 days

0

8

Honda 19351-ZV5-000

GASKET, THERMOSTAT COVER

$4.49

$

In Stock, only 1 left!

0

9

Honda 19361-ZV7-000ZA

COVER, WATER JACKET *NH8* (DARK GRAY)

$98.99

$

Usually ships in 3-6 days

0

10

Honda 19371-ZV7-000

GASKET, WATER JACKET COVER

$17.99

$

Usually ships in 3-6 days

0

11

Honda 24626-ZV5-010

SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT

$3.49

$

Usually ships in 3-6 days

0

12

Honda 35490-ZW2-F01

SWITCH ASSY., OIL PRESSURE

$41.99

$

Usually ships in 3-6 days

0

13

Honda 90002-ZW2-F01

SCREW-WASHER (4X8)

$1.99

$

In Stock, only 1 left!

0

14

Honda 90012-ZV5-013

BOLT, TIMING BELT ADJUSTING SPRING
(Superseded to 90012-ZZ5-M02)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90012-ZW9-000

BOLT, FLANGE (6X22) (CT200)

$

$

Not available

16

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.99

$

In Stock, only 3 left!

0

17

Honda 90014-ZV7-010

BOLT, FLANGE (6X35) (CT200)
(Superseded to 90014-ZV7-040)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90018-PN3-000

HOLDER, OIL FILTER

$10.99

$

In Stock, only 1 left!

0

19

Honda 90145-ZW4-000

BOLT, FLANGE (6X40)
(Superseded to 90045-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90405-ZV5-010

WASHER, PLAIN (8MM)
(Superseded to 90405-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$11.99

$

In Stock, Qty 5

0

23

Honda 91262-SL4-005

OIL SEAL (44.5X60.5X8) (NOK)

$15.99

$

Usually ships in 3-6 days

0

24

Honda 93500-06018-4J

SCREW, PAN (6X18)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94301-10120

PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 94303-06100

PIN, DOWEL (6X10)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 90001-ZW2-000

BOLT, SOCKET (8X18)

$4.49

$

Usually ships in 3-6 days

0

28

Honda 19303-ZW9-003

RUBBER, RING

$7.99

$

In Stock, only 1 left!

0
