BF25 DK2 LRTA (BATJ) - Honda Marine Engine, Made in Japan (SN: BATJ-1400001 - BATJ-9999999) CONTROL PANEL KIT Parts Diagram

Marine Engine, Made in Japan

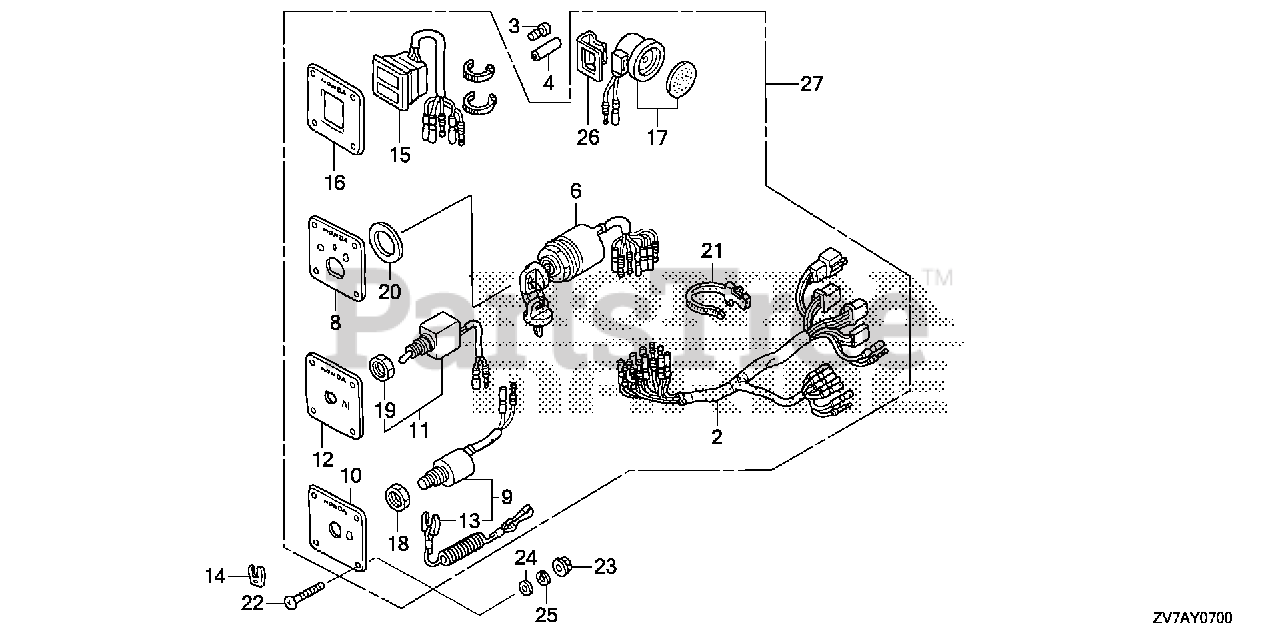

CONTROL PANEL KIT Parts Diagram

  • Title

2

Honda 32545-ZW1-V03

HARNESS ASSY., SWITCH PANEL

Note: (Optional).

$146.99

$

Usually ships in 3-6 days

0

3

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

4

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 35100-ZV5-013

SWITCH ASSY., COMBINATION

Note: (Optional).

$119.99

$

Usually ships in 3-6 days

0

8

Honda 35118-ZW5-U02

PANEL, SWITCH

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

9

Honda 35180-ZV7-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional).

$82.99

$

Usually ships in 3-6 days

0

10

Honda 35184-ZW5-U03

PANEL, EMERGENCY STOP SWITCH

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

11

Honda 35630-ZW5-U11

SWITCH ASSY., SOLENOID

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

12

Honda 35634-ZW5-U12

PANEL, SOLENOID

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

13

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

14

Honda 36187-ZV4-652

CLIP, EMERGENCY LOCK

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

15

Honda 37210-ZW5-U01

LAMP ASSY., INDICATOR (2-LED)

Note: (Optional).

$102.99

$

Usually ships in 3-6 days

0

16

Honda 37214-ZW5-U02

PANEL, INDICATOR

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

17

Honda 38410-ZW5-U01

BUZZER, WARNING

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

18

Honda 90302-921-000

NUT, HEX. (16MM)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

19

Honda 90305-ZW1-V01

NUT, HEX. (12MM)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90513-ZW5-U00

WASHER, PLAIN

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

22

Honda 90109-ZW5-000

SCREW, PAN (5X40)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

23

Honda 18334-MT8-770

NUT, FLANGE (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

24

Honda 94103-05400

WASHER, PLAIN (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94111-05400

WASHER, SPRING (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 38414-ZW5-U00

BRACKET, BUZZER

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

27

Honda 32340-ZW5-U07

PANEL ASSY., CONTROL

Note: (Optional).

$437.99

$

Usually ships in 3-6 days

0
