BF25 D4 LHA (BATJ) - Honda Marine Engine, Made in Japan (SN: BATJ-1000001 - BATJ-1099999) ENGINE COVER + LOWER CASE Parts Diagram

Marine Engine, Made in Japan

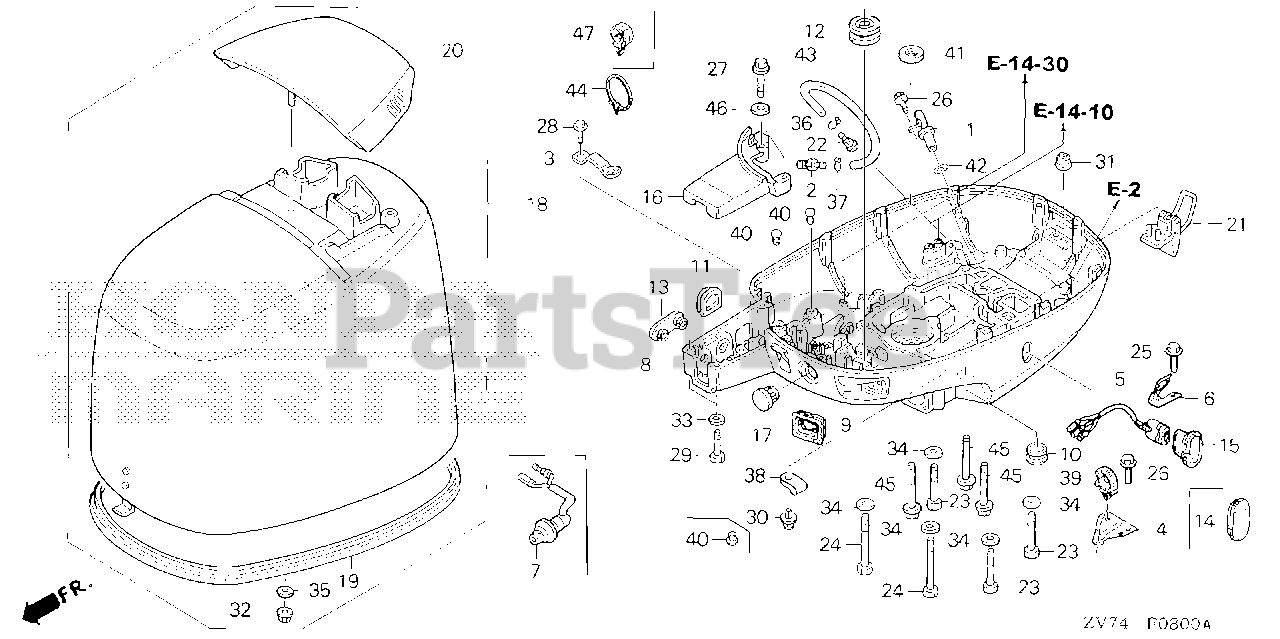

ENGINE COVER + LOWER CASE Parts Diagram

  • Title

1

Honda 15665-ZV7-020

SEE PART DETAILS - PRI; PIPE, OIL LEVEL

$17.99

$

Usually ships in 3-6 days

0

2

Honda 19312-ZW4-H00

JOINT, WATER TUBE

$13.99

$

Usually ships in 3-6 days

0

3

Honda 32112-ZV7-751

BRACKET, CABLE CLIP (S)

$

$

Not available

7

Honda 37210-ZV4-003

SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR

$52.99

$

Usually ships in 3-6 days

0

8

Honda 40101-ZW2-425ZA

CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 40101-ZW2-435ZA)

$1115.99

$

Usually ships in 3-6 days

0

9

Honda 40106-ZV5-000

GROMMET, CASE (LOWER) (B)

$11.99

$

Usually ships in 3-6 days

0

10

Honda 40107-ZV5-000

GROMMET, CASE (LOWER) (C)

$8.49

$

Usually ships in 3-6 days

0

12

Honda 40109-ZV4-010

GROMMET, OIL CASE (E)

$7.49

$

Usually ships in 3-6 days

0

13

Honda 40113-ZW4-H11

GROMMET, CASE (LOWER)

$9.99

$

Usually ships in 3-6 days

0

14

Honda 40114-ZV5-010

SEE PART DETAILS - PRI; GROMMET, CASE (LOWER)

$9.49

$

Usually ships in 3-6 days

0

16

Honda 40151-ZV7-000ZA

CASE, SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U)

$99.99

$

Usually ships in 3-6 days

0

18

Honda 63100-ZW2-F31ZA

COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

19

Honda 63102-ZV7-300

SEAL, ENGINE COVER

$79.99

$

Usually ships in 3-6 days

0

20

Honda 63105-ZW4-H01ZA

HANDLE, TILT *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 63105-ZW4-H03ZA)

$113.99

$

Usually ships in 3-6 days

0

21

Honda 63240-ZV5-000

LEVER, FASTENER

$56.99

$

Usually ships in 3-6 days

0

22

Honda 82873-ZV5-000

GROMMET, WATER CHECK
(Superseded to 82873-ZV5-003)

$8.49

$

Usually ships in 3-6 days

0

23

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

$6.99

$

Usually ships in 3-6 days

0

24

Honda 90010-ZV7-000

BOLT, HEX. (8X80)

$10.99

$

Usually ships in 3-6 days

0

26

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.99

$

In Stock, only 3 left!

0

27

Honda 90015-ZV0-C10

BOLT, FLANGE (6X28) (CT200)
(Superseded to 90103-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90019-ZV1-010

BOLT, FLANGE (5X10) (CT200)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90121-ZV4-000

BOLT, HEX. (6X45)

$4.99

$

Usually ships in 3-6 days

0

31

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$6.99

$

Usually ships in 3-6 days

0

32

Honda 90301-473-003

NUT, U (6MM) (FUSE RASHI)

$5.99

$

Usually ships in 3-6 days

0

33

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

34

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 90512-921-010

WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 90801-SB0-000

PLUG, CHANGE REINFORCEMENT

$4.99

$

Usually ships in 3-6 days

0

41

Honda 91251-ZW2-F01

SEAL, WATER (17X26X7)

$8.99

$

Usually ships in 3-6 days

0

42

Honda 91309-PJ7-010

O-RING (11.5X3.5)

$4.49

$

Usually ships in 3-6 days

0

43

Honda 91402-ZW2-F00

TUBE, WATER CHECK

$5.99

$

Usually ships in 3-6 days

0

45

Honda 95701-08070-00

BOLT, FLANGE (8X70)

$3.99

$

Usually ships in 3-6 days

0

46

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

47

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0
