BF25 AY SHA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3200001 - BAJS-9999999) CHARGE RECEPTACLE KIT (1) Parts Diagram

Marine Engine, Made in Japan

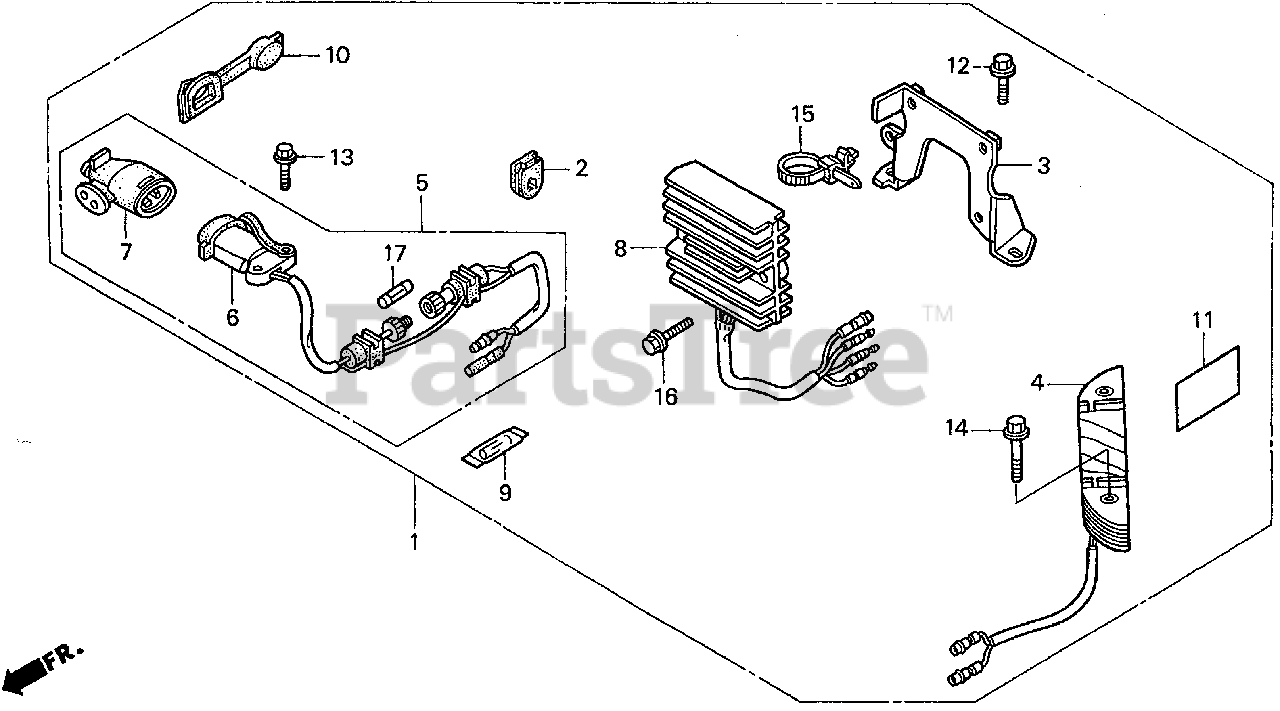

CHARGE RECEPTACLE KIT (1) Parts Diagram

  • Title
1

Honda 06310-ZV7-010

RECEPTACLE KIT, CHARGE (6A)
(Superseded to 06310-ZV7-020)

$444.99

$

Usually ships in 3-6 days

0

2

Honda 30564-ZA5-000

GROMMET, WIRE

$6.99

$

Usually ships in 3-6 days

0

3

Honda 31604-ZV7-000

SEE PART DETAILS - SUP; BRACKET, REGULATOR
(Superseded to 31604-ZV7-010)

$25.99

$

Usually ships in 3-6 days

0

3

Honda 31604-ZV7-010

SEE PART DETAILS - PRI; BRACKET, REGULATOR

$25.99

$

Usually ships in 3-6 days

0

4

Honda 31630-ZV7-003

COIL ASSY., CHARGE (12V-6A)

$

$

Not available

5

Honda 31650-ZV7-003

SEE PART DETAILS - SUP; RECEPTACLE ASSY., CHARGE

$

$

Currently unavailable

5

Honda 31650-ZV7-013

SEE PART DETAILS - PRI; RECEPTACLE ASSY., CHARGE

$

$

Not available

6

Honda 31651-ZV7-003

RECEPTACLE

$

$

Not available

7

Honda 31652-881-014

SEE PART DETAILS - SUP; PLUG, RECEPTACLE
(Superseded to 31652-881-024)

$23.99

$

Usually ships in 3-6 days

0

7

Honda 31652-881-024

SEE PART DETAILS - PRI; PLUG, RECEPTACLE

$23.99

$

Usually ships in 3-6 days

0

8

Honda 31750-ZV7-003

SEE PART DETAILS - PRI; REGULATOR ASSY. (RECTIFIER)

$

$

Not available

9

Honda 38207-ZV4-000

FUSE, SPARE (15A)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 40107-ZV7-000

GROMMET, CASE (LOWER) (C)

$19.99

$

Usually ships in 3-6 days

0

11

Honda 87512-ZV4-A21

MARK, RECEPTACLE (6A)

$4.99

$

Usually ships in 3-6 days

0

12

Honda 90013-ZV0-000

BOLT, FLANGE (6X12)

$

$

Not available

13

Honda 90014-ZV1-000

SEE PART DETAILS - SUP; BOLT, FLANGE (5X22)
(Superseded to 90014-ZV1-010)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90014-ZV7-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X35)
(Superseded to 90014-ZV7-010)

$

$

Not available

14

Honda 90014-ZV7-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)
(Superseded to 90014-ZV7-040)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L*

$9.99

$

In Stock, only 1 left!

0

16

Honda 95701-06020-02

BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 98200-11500

FUSE A (15A)

$1.49

$

Usually ships in 3-6 days

0
