BF25 A2 XRSA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) TIMING BELT Parts Diagram

Marine Engine, Made in Japan

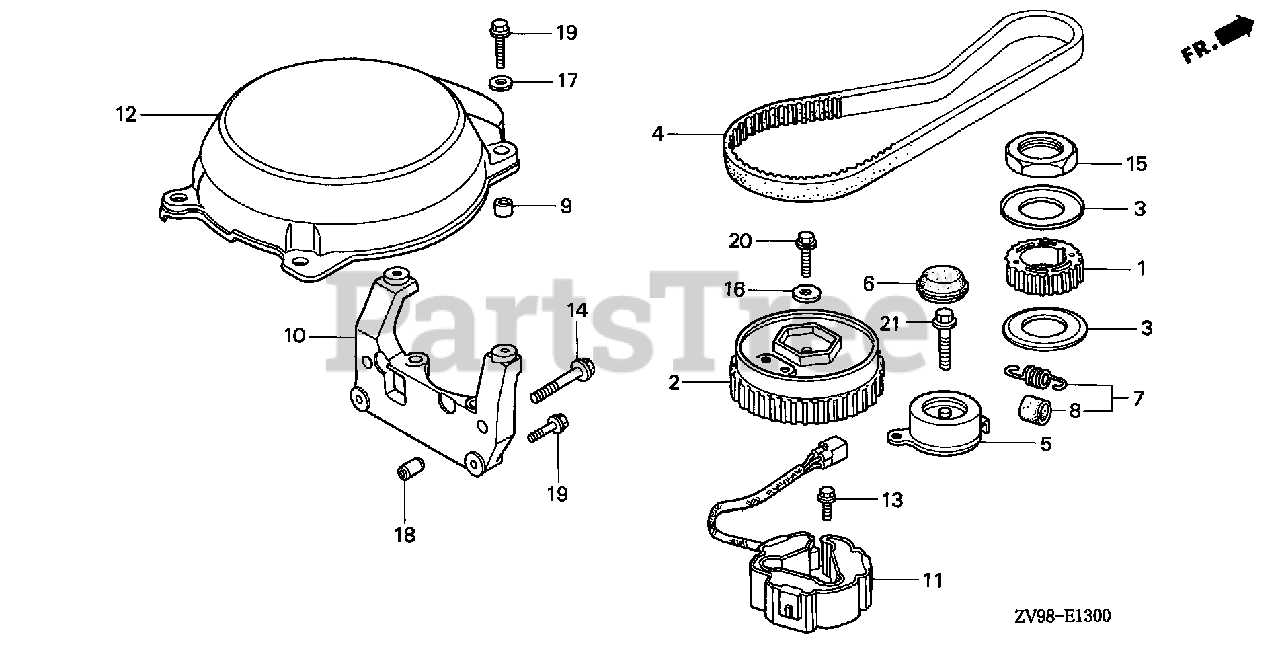

TIMING BELT Parts Diagram

  • Title
1

Honda 14315-ZV7-000

PULLEY, TIMING

$121.99

$

Usually ships in 3-6 days

0

2

Honda 14320-ZV7-000

PULLEY, CAMSHAFT

$

$

Not available

3

Honda 14323-ZV7-000

PLATE, TIMING BELT GUIDE

$18.99

$

Usually ships in 3-6 days

0

4

Honda 14400-ZV7-014

BELT, TIMING

$91.99

$

Usually ships in 3-6 days

0

5

Honda 14510-ZV5-003

TENSIONER, TIMING BELT
(Superseded to 14510-ZV5-013)

$101.99

$

Usually ships in 3-6 days

0

6

Honda 14515-ZV5-000

CAP, TIMING BELT TENSIONER

$8.49

$

Usually ships in 3-6 days

0

7

Honda 14520-ZV7-010

SEE PART DETAILS - PRI; SPRING, TIMING BELT ADJUSTING

$6.49

$

Usually ships in 3-6 days

0

8

Honda 14522-ZV5-000

BOOT, SPRING

$3.49

$

Usually ships in 3-6 days

0

9

Honda 17202-ZV5-300

COLLAR, DISTANCE (6.5X11X7.5)
(Superseded to 17202-ZV5-310)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 28491-ZV7-750

BRACKET, RECOIL

$118.99

$

Usually ships in 3-6 days

0

11

Honda 30310-ZV7-003

COIL ASSY., PULSER

$

$

Not available

12

Honda 31145-ZV7-750

COVER, FLYWHEEL

$

$

Not available

13

Honda 90013-ZV0-010

BOLT, FLANGE (6X12)

$2.99

$

In Stock, only 3 left!

0

14

Honda 90126-ZW4-000

BOLT, FLANGE (8X45)
(Superseded to 90026-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90202-ZV7-000

NUT, LOCK (34MM)

$25.99

$

Usually ships in 3-6 days

0

16

Honda 90405-ZV5-010

WASHER, PLAIN (8MM)
(Superseded to 90405-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90545-323-700

WASHER (6.5X18)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

19

Honda 95701-06022-02

BOLT, FLANGE (6X22)

Note: Use up to Engine SN 2004826.

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90025-ZY3-000

BOLT, FLANGE (6X22)

Note: Use from Engine SN 2004827.

$1.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08025-02

BOLT, FLANGE (8X25)

Note: Use up to Engine SN 2004859.

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90151-ZW4-000

BOLT, FLANGE (8X25)
(Superseded to 90151-ZZ0-M01)

Note: Use from Engine SN 2004860.

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-10038-08

BOLT, FLANGE (10X38)

$2.99

$

Usually ships in 3-6 days

0
