BF25 A2 XRSA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

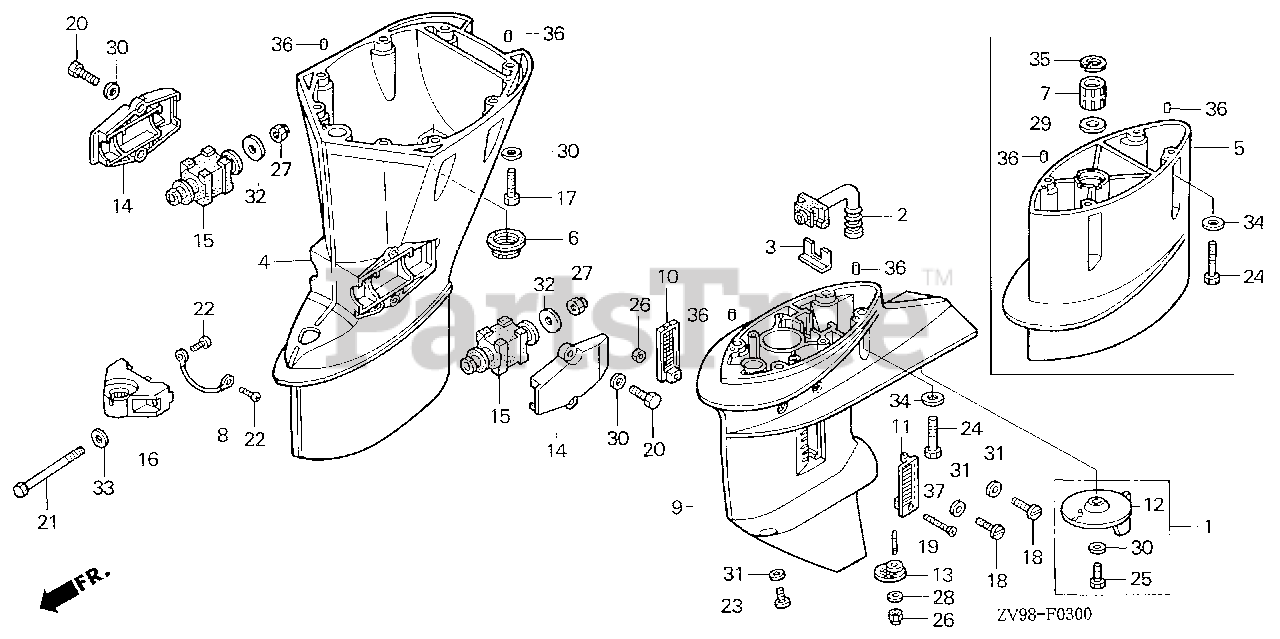

EXTENSION CASE Parts Diagram

  • Title

1

Honda 06412-ZV5-000

TAB KIT, TRIM

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

2

Honda 19280-ZV5-000

TUBE, WATER (LOWER)

$31.99

$

Usually ships in 3-6 days

0

3

Honda 19286-ZV5-000

PLATE, RUBBER SETTING

$6.49

$

Usually ships in 3-6 days

0

4

Honda 40201-ZV7-020ZA

SEE PART DETAILS - PRI; CASE, EXTENSION *NH282MU* (S) (OYSTER SILVER METALLIC-U)

$575.99

$

Usually ships in 3-6 days

0

5

Honda 40202-ZV7-D10ZA

SEE PART DETAILS - SUP; SEPARATOR, EXTENSION *NH282MU* (UL) (OYSTER SILVER METALLIC-U)

$

$

Not available

5

Honda 40202-ZV7-D11ZA

SEE PART DETAILS - PRI; SEPARATOR, EXTENSION *NH282MU* (UL) (OYSTER SILVER METALLIC-U)

$858.99

$

Usually ships in 3-6 days

0

6

Honda 40209-ZV5-000

RUBBER, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

7

Honda 40210-ZV5-A11

BUSH, VERTICAL SHAFT

$25.99

$

Usually ships in 3-6 days

0

8

Honda 40219-ZY3-013

SEE PART DETAILS - PRI; WIRE, LEAD (1.5X116MM)
(Superseded to 40219-ZY3-023)

$12.99

$

Usually ships in 3-6 days

0

9

Honda 06411-ZV7-325ZA

CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$747.99

$

Usually ships in 3-6 days

0

10

Honda 41104-ZV5-000

SCREEN, R. WATER

$9.99

$

Usually ships in 3-6 days

0

11

Honda 41105-ZV5-000

SCREEN, L. WATER

$9.99

$

Usually ships in 3-6 days

0

12

Honda 41107-ZV5-000

TAB, TRIM

$25.99

$

Usually ships in 3-6 days

0

13

Honda 41108-ZV4-000

SCREEN, WATER (LOWER)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 50111-ZV5-000ZA

HOUSING, R. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$85.99

$

Usually ships in 3-6 days

0

15

Honda 50155-ZV5-000

RUBBER, MOUNT (LOWER)

$93.99

$

Usually ships in 3-6 days

0

16

Honda 50161-ZV5-010ZA

HOUSING, CENTER MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$175.99

$

Usually ships in 3-6 days

0

17

Honda 90009-ZV5-000

BOLT, HEX. (8X35)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90105-ZV4-650

BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

19

Honda 90106-ZV4-010

BOLT, STUD (5X16)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90118-ZV5-000

BOLT, HEX. (12X162)

$40.99

$

Usually ships in 3-6 days

0

22

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90120-ZV5-003

BOLT, DRAIN PLUG (8MM)

$7.99

$

Usually ships in 3-6 days

0

24

Honda 90123-ZV5-010

BOLT, HEX. (10X40)

$8.49

$

Usually ships in 3-6 days

0

25

Honda 90126-ZV5-000

BOLT, HEX. (8X20)

$5.49

$

Usually ships in 3-6 days

0

26

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 90308-ZV5-003

NUT, SELF-LOCK (12MM)

$12.99

$

Usually ships in 3-6 days

0

28

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90501-ZV5-A10

WASHER (20MM)

$3.99

$

Usually ships in 3-6 days

0

30

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

32

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.49

$

Usually ships in 3-6 days

0

33

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

34

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 90651-ZV5-A10

CIRCLIP (INNER) (30MM)

$10.99

$

Usually ships in 3-6 days

0

36

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

37

Honda 93700-05028-4J

SCREW, OVAL (5X28)

$3.49

$

Usually ships in 3-6 days

0
