BF25 A2 XRSA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) C.D.I. UNIT COVER Parts Diagram

Marine Engine, Made in Japan

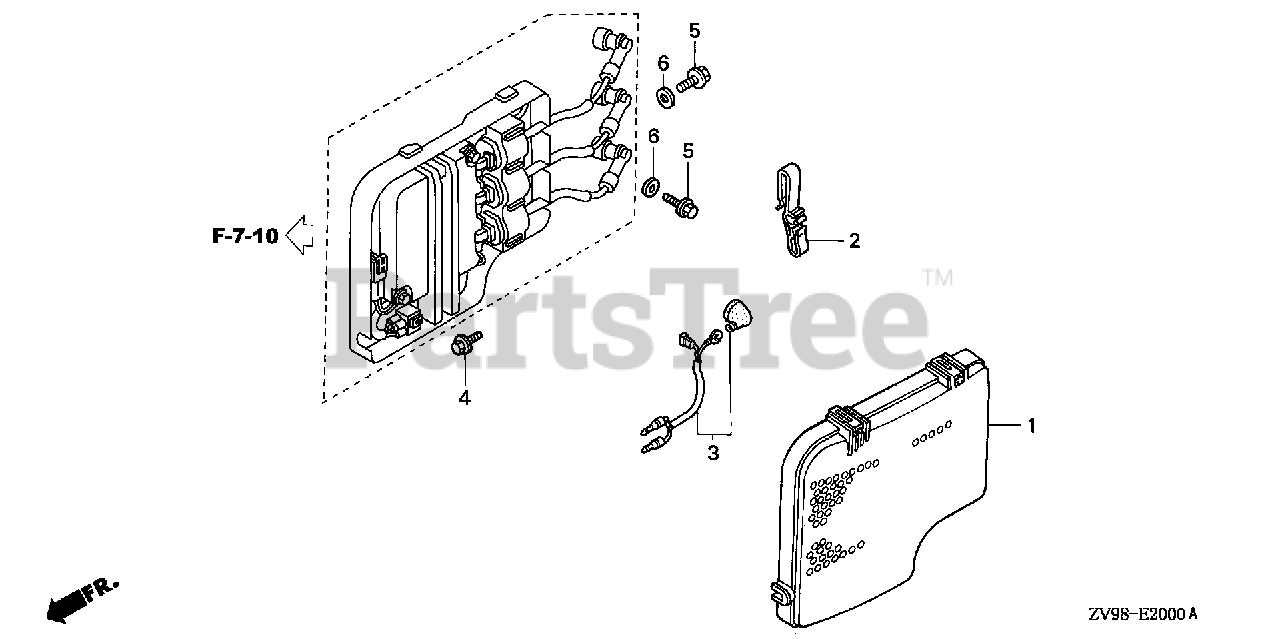

C.D.I. UNIT COVER Parts Diagram

  • Title

1

Honda 30588-ZV5-013

COVER, IGNITION CONTROL MODULE (CDI)

$38.99

$

Usually ships in 3-6 days

0

2

Honda 32766-PE2-013

CLAMP, CENTER WIRE

$

$

Not available

3

Honda 37204-ZV7-010

WIRE, SWITCH (385MM)

$22.99

$

Usually ships in 3-6 days

0

3

Honda 37204-ZV7-010

WIRE, SWITCH (385MM)

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 90013-ZV0-010

BOLT, FLANGE (6X12)

$2.99

$

In Stock, only 3 left!

0

5

Honda 90121-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25)
(Superseded to 90121-ZV0-010)

Note: Use up to Engine SN 2004826.

$3.49

$

Usually ships in 3-6 days

0

5

Honda 90121-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

Note: Use from Engine SN 2004827.

$3.49

$

Usually ships in 3-6 days

0

6

Honda 94103-06200

WASHER, PLAIN (6MM)

Note: Use up to Engine SN 2004826.

$1.49

$

Usually ships in 3-6 days

0

6

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

Note: Use from Engine SN 2004827.

$2.99

$

Usually ships in 3-6 days

0
