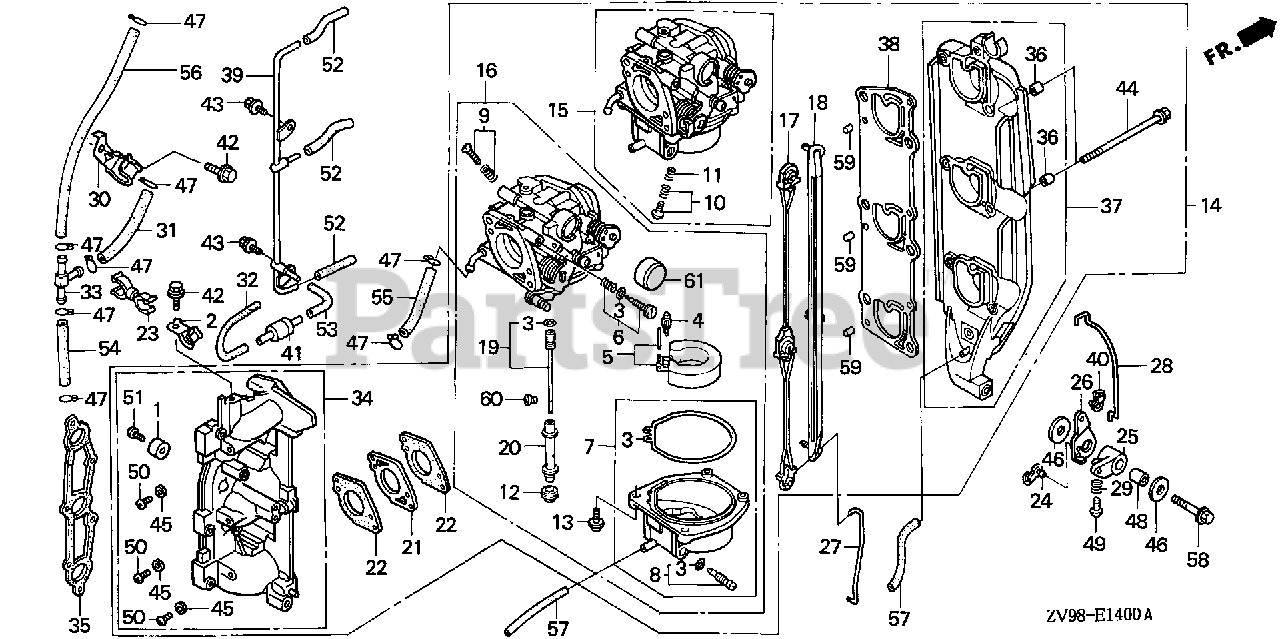

BF25 A2 SRSA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) CARBURETOR Parts Diagram

Marine Engine, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 12155-ZV5-000

METAL, ANODE
(Superseded to 12155-ZV5-010)

$13.99

$

In Stock, only 3 left!

0

2

Honda 12328-ZV5-010

CLAMP, TUBE

$

$

Not available

3

Honda 16010-ZV4-005

GASKET SET

$20.99

$

In Stock, only 2 left!

0

4

Honda 16011-ZV4-005

VALVE SET, FLOAT

$41.99

$

In Stock, only 2 left!

0

5

Honda 16013-ZV4-005

FLOAT SET

$43.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZW1-L41

SCREW SET

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16023-ZV3-000

CHAMBER SET, FLOAT

$90.99

$

Usually ships in 3-6 days

0

8

Honda 16024-881-A00

SCREW SET, DRAIN
(Superseded to 16024-ZY3-000)

$17.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZV3-000

SCREW SET

$12.99

$

Usually ships in 3-6 days

0

10

Honda 16029-ZV3-000

SCREW SET

$13.99

$

Usually ships in 3-6 days

0

11

Honda 16052-KG4-003

SPRING, COMPRESSION COIL

$8.49

$

Usually ships in 3-6 days

0

12

Honda 16071-ZV4-005

SCREW, PLUG

$8.99

$

Usually ships in 3-6 days

0

13

Honda 16081-ZV4-650

SCREW-WASHER

$4.99

$

Usually ships in 3-6 days

0

14

Honda 16100-ZV7-B52ZA

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BG10B B) *NH8* (DARK GRAY)
(Superseded to 16100-ZV7-B53ZA)

Note: Use up to Engine SN 2004545.

$

$

Not available

14

Honda 16100-ZV7-B53ZA

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BG10B C) *NH8* (DARK GRAY)

$

$

Not available

15

Honda 16101-ZV7-B52

SEE PART DETAILS - SUP; CARBURETOR ASSY. (#1/#2) (CARBURETOR NO.)
(Superseded to 16101-ZV7-B53)

Note: Use up to Engine SN BG10B B.

$

$

Not available

15

Honda 16101-ZV7-B53

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#1/#2) (CARBURETOR NO.)

Note: Use up to Engine SN BG10B B.

$

$

Not available

15

Honda 16101-ZV7-B53

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#1/#2) (CARBURETOR NO.)

Note: Use from Engine SN BG10B C.

$

$

Not available

16

Honda 16102-ZV7-B52

SEE PART DETAILS - SUP; CARBURETOR ASSY. (#3) (CARBURETOR NO.)
(Superseded to 16102-ZV7-B53)

Note: Use up to Engine SN BG10B B.

$

$

Not available

16

Honda 16102-ZV7-B53

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#3) (CARBURETOR NO.)

Note: Use up to Engine SN BG10B B.

$

$

Not available

16

Honda 16102-ZV7-B53

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#3) (CARBURETOR NO.)

Note: Use from Engine SN BG10B C.

$

$

Not available

17

Honda 16142-ZV3-000

LEVER, LINK

$

$

Not available

18

Honda 16144-ZV3-000

LINE, CHOKE

$

$

Not available

19

Honda 16150-ZV7-010

JET SET (#38)

$32.99

$

Usually ships in 3-6 days

0

20

Honda 16166-ZV7-020

SEE PART DETAILS - PRI; NOZZLE, MAIN

$

$

Not available

21

Honda 16211-ZW2-000

INSULATOR, CARBURETOR

$11.99

$

Usually ships in 3-6 days

0

22

Honda 16221-ZW2-000

GASKET, CARBURETOR

$3.99

$

In Stock, only 2 left!

0

23

Honda 16223-ZV5-000

CLAMP, FUEL TUBE (A)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 16263-ZA0-000

JOINT, ROD

$5.49

$

Usually ships in 3-6 days

0

25

Honda 16574-ZV5-000

ARM A, CHOKE

$

$

Not available

26

Honda 16575-ZV5-000

ARM B, CHOKE

$

$

Not available

27

Honda 16622-ZV5-000

ROD, CHOKE

$

$

Not available

28

Honda 16628-ZV7-000

ROD, CHOKE KNOB

$

$

Not available

29

Honda 16659-ZV5-000

SPRING, CHOKE ARM ADJUSTING

$

$

Not available

30

Honda 16815-ZV5-010

CLAMP, FUEL TUBE

$5.99

$

Usually ships in 3-6 days

0

31

Honda 16871-ZV7-000

TUBE C, FUEL

$6.99

$

Usually ships in 3-6 days

0

32

Honda 16881-ZV5-000

TUBE D, FUEL

$5.49

$

Usually ships in 3-6 days

0

33

Honda 16960-ME9-000

PIPE, THREE WAY JOINT

$22.99

$

Usually ships in 3-6 days

0

34

Honda 17100-ZV7-000ZA

MANIFOLD ASSY., IN. *NH8* (DARK GRAY)

$

$

Not available

35

Honda 17151-ZV7-000

GASKET, IN. MANIFOLD

$18.99

$

In Stock, only 1 left!

0

36

Honda 17202-ZV5-300

COLLAR, DISTANCE (6.5X11X7.5)
(Superseded to 17202-ZV5-310)

Note: Use up to Engine SN 2004826.

$3.49

$

Usually ships in 3-6 days

0

36

Honda 17202-ZV5-310

COLLAR, DISTANCE

Note: Use from Engine SN 2004827.

$3.49

$

Usually ships in 3-6 days

0

37

Honda 17380-ZV5-000

PLATE, MUFFLER

$

$

Not available

38

Honda 17384-ZV5-000

GASKET, MUFFLER PLATE

$32.99

$

In Stock, only 1 left!

0

39

Honda 17881-ZV5-000

PIPE, INSTALL
(Superseded to 17881-ZV5-010)

$53.99

$

Usually ships in 3-6 days

0

40

Honda 17957-ZV4-000

BUSH, LINKAGE

$2.99

$

In Stock, Qty 6

0

41

Honda 36135-ZV5-004

VALVE, DASHPOT CHECK

$55.99

$

In Stock, only 1 left!

0

42

Honda 90013-ZV0-010

BOLT, FLANGE (6X12)

Note: Use up to Engine SN 2004826.

$2.99

$

In Stock, only 3 left!

0

42

Honda 90013-ZW4-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2004827.

$3.49

$

Usually ships in 3-6 days

0

43

Honda 90019-ZV1-010

BOLT, FLANGE (5X10)

$1.99

$

Usually ships in 3-6 days

0

44

Honda 90021-ZV5-000

BOLT, FLANGE (6X97)

Note: Use up to Engine SN 2004826.

$6.49

$

Usually ships in 3-6 days

0

44

Honda 90021-ZV5-010

BOLT, FLANGE (6X97)

Note: Use from Engine SN 2004827.

$4.49

$

Usually ships in 3-6 days

0

45

Honda 90452-323-000

WASHER, SEALING (5MM)

$2.49

$

In Stock, Qty 20+

0

46

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

In Stock, only 1 left!

0

47

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$2.49

$

Usually ships in 3-6 days

0

48

Honda 91503-ZV5-000

COLLAR, DISTANCE (6.5X10.5X16)

$7.49

$

Usually ships in 3-6 days

0

49

Honda 93500-04016-0B

SCREW, PAN (4X16)

$

$

Not available

49

Honda 90180-ZW4-000

SCREW, PAN (4X16)

Note: Use from Engine SN 2004827.

$

$

Not available

50

Honda 93500-05010-0B

SCREW, PAN (5X10)

Note: Use up to Engine SN 2004826.

$1.49

$

Usually ships in 3-6 days

0

50

Honda 90181-ZW4-000

SCREW, PAN (5X10)

Note: Use from Engine SN 2004827.

$0.99

$

Usually ships in 3-6 days

0

51

Honda 93500-06018-4J

SCREW, PAN (6X18)

$2.49

$

Usually ships in 3-6 days

0

52

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X45)

$31.99

$

In Stock, only 1 left!

0

53

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X65)

$31.99

$

In Stock, only 1 left!

0

54

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X55)

$70.99

$

In Stock, only 1 left!

0

55

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X70)

$70.99

$

In Stock, only 1 left!

0

56

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X175)

$70.99

$

In Stock, only 1 left!

0

57

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (9500(95003-05001-60M)

$28.99

$

In Stock, only 1 left!

0

58

Honda 95701-06028-02

BOLT, FLANGE (6X28)

Note: Use up to Engine SN 2004826.

$2.49

$

Usually ships in 3-6 days

0

58

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

Note: Use from Engine SN 2004827.

$2.49

$

Usually ships in 3-6 days

0

59

Honda 96220-60150

ROLLER (6X15)

$1.49

$

Usually ships in 3-6 days

0

60

Honda 99101-ZV5-0950

JET, MAIN (#95)

Note: (Optional).

$7.99

$

In Stock, only 3 left!

0

60

Honda 99101-ZV5-0980

JET, MAIN (#98)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

60

Honda 99101-ZV5-1000

JET, MAIN (#100)

$6.99

$

Usually ships in 3-6 days

0

61

Honda 16148-141-881

CAP, CHOKE DUST

$6.99

$

In Stock, only 1 left!

0
