BF25 A2 SHSA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) HANDLEBAR Parts Diagram

Marine Engine, Made in Japan

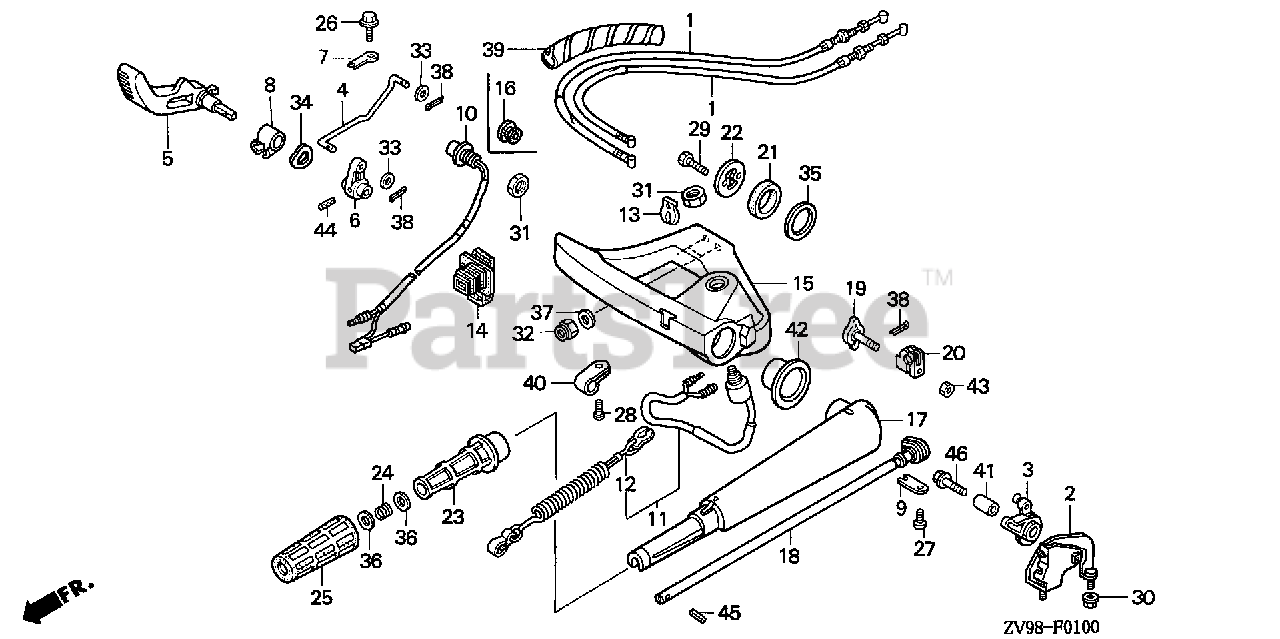

HANDLEBAR Parts Diagram

  • Title

1

Honda 17910-ZV3-023

CABLE, THROTTLE

$18.99

$

Usually ships in 3-6 days

0

2

Honda 17929-ZV7-000

SEE PART DETAILS - SUP; BRACKET, THROTTLE CABLE
(Superseded to 17929-ZV7-010)

$40.99

$

Usually ships in 3-6 days

0

2

Honda 17929-ZV7-010

SEE PART DETAILS - PRI; BRACKET, THROTTLE CABLE

$40.99

$

Usually ships in 3-6 days

0

3

Honda 17931-ZV3-000

ARM, THROTTLE

$25.99

$

Usually ships in 3-6 days

0

4

Honda 24613-ZV7-000

ROD, LINK

$33.99

$

Usually ships in 3-6 days

0

5

Honda 24614-ZV3-000

SEE PART DETAILS - SUP; LEVER, SHIFT
(Superseded to 24614-ZV3-010)

$41.99

$

Usually ships in 3-6 days

0

5

Honda 24614-ZV3-010

SEE PART DETAILS - PRI; LEVER, SHIFT

$41.99

$

Usually ships in 3-6 days

0

6

Honda 24615-ZV3-000

LINK, SHIFT (A)

$13.99

$

Usually ships in 3-6 days

0

7

Honda 24617-ZV3-000

SEE PART DETAILS - SUP; PLATE, SHIFT LINK (A)
(Superseded to 24617-ZV3-010)

$4.99

$

Usually ships in 3-6 days

0

7

Honda 24617-ZV3-010

SEE PART DETAILS - PRI; PLATE, SHIFT LINK (A)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 24622-ZV3-000

COLLAR, DISTANCE

$9.49

$

Usually ships in 3-6 days

0

9

Honda 24626-ZV5-000

SEE PART DETAILS - SUP; PLATE, SHIFT SHAFT
(Superseded to 24626-ZV5-010)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 24626-ZV5-010

SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT

$2.99

$

Usually ships in 3-6 days

0

10

Honda 35150-ZV7-751

SWITCH ASSY., STARTER

$

$

Not available

11

Honda 35180-ZV7-023

SWITCH ASSY., EMERGENCY STOP
(Superseded to 35180-ZV7-033)

$76.99

$

Usually ships in 3-6 days

0

12

Honda 36182-ZV4-651

WIRE, EMERGENCY

$24.99

$

Usually ships in 3-6 days

0

13

Honda 36187-ZV4-651

CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 40105-ZV3-000

GROMMET, CASE (LOWER) (A)

$43.99

$

Usually ships in 3-6 days

0

15

Honda 50281-ZV3-000ZA

HANDLE, CARRYING *NH282MU* (OYSTER SILVER METALLIC-U)

$259.99

$

Usually ships in 3-6 days

0

17

Honda 53101-ZV3-010ZA

HANDLEBAR *NH282MU* (OYSTER SILVER METALLIC-U)

$168.99

$

Usually ships in 3-6 days

0

18

Honda 53102-ZV3-000

REEL, THROTTLE

$97.99

$

Usually ships in 3-6 days

0

19

Honda 53104-ZV3-000

BOLT, FRICTION

$22.99

$

Usually ships in 3-6 days

0

20

Honda 53106-ZV3-000

BLOCK, THROTTLE FRICTION

$8.99

$

Usually ships in 3-6 days

0

21

Honda 53109-ZV3-000

RUBBER, HANDLE MOUNTING

$9.49

$

Usually ships in 3-6 days

0

22

Honda 53111-ZV3-010

PLATE, HANDLEBAR

$11.99

$

Usually ships in 3-6 days

0

23

Honda 53141-ZV3-000

PIPE, GRIP

$51.99

$

Usually ships in 3-6 days

0

24

Honda 53148-ZV3-000

SPRING, GRIP PIPE

$3.99

$

Usually ships in 3-6 days

0

25

Honda 53165-ZV4-000

RUBBER, GRIP

$16.99

$

Usually ships in 3-6 days

0

26

Honda 90013-ZV0-010

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 3 left!

0

27

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90123-ZV3-000

SCREW, PAN (5X12)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90205-PP9-020

NUT, SELF-LOCK (6MM)

$11.99

$

Usually ships in 3-6 days

0

31

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

32

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$4.99

$

In Stock, only 2 left!

0

33

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 90506-ZV1-000

WASHER, WAVE (14MM)

$3.49

$

In Stock, only 2 left!

0

35

Honda 90515-ZV3-000

WASHER, HANDLEBAR (36MM)

$6.49

$

Usually ships in 3-6 days

0

36

Honda 90543-ZV3-000

WASHER (10MM)

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

38

Honda 90759-ZV1-000

PIN, SPLIT (2.0)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 91451-ZV3-003

TUBE, SPIRAL

$7.49

$

In Stock, only 2 left!

0

40

Honda 91475-SB6-000

CLIP, WIRE HARNESS (6.3MM)

$10.99

$

Usually ships in 3-6 days

0

41

Honda 91503-ZV5-000

COLLAR, DISTANCE (6.5X10.5X16)

$6.99

$

Usually ships in 3-6 days

0

42

Honda 91559-ZV3-000

COLLAR, HANDLEBAR

$13.99

$

Usually ships in 3-6 days

0

43

Honda 94002-06490-0S

NUT, HEX. (6MM)

$3.49

$

Usually ships in 3-6 days

0

44

Honda 94305-40203

PIN, SPRING (4X20)

$1.99

$

In Stock, Qty 5

0

45

Honda 94305-40283

PIN, SPRING (4X28)

$2.49

$

Usually ships in 3-6 days

0

46

Honda 90166-ZW4-000

BOLT, FLANGE (6X28)

$1.99

$

Usually ships in 3-6 days

0
