BF25 A2 SHA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) OIL PUMP Parts Diagram

Marine Engine, Made in Japan

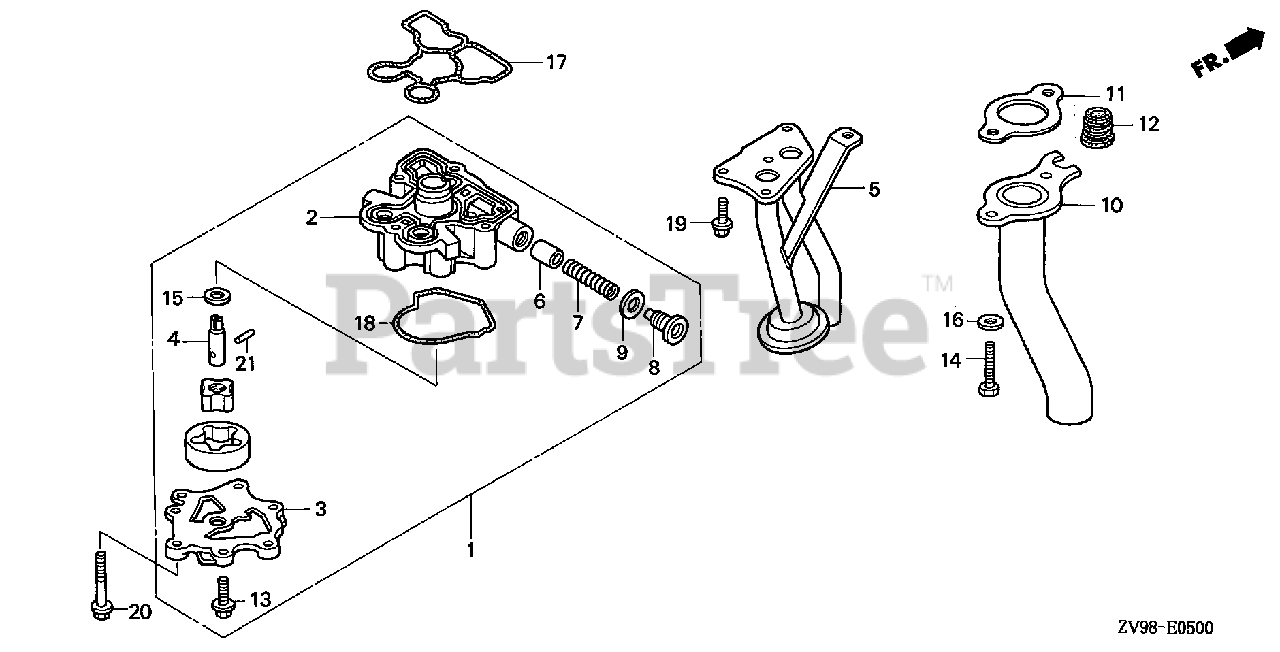

OIL PUMP Parts Diagram

  • Title
1

Honda 15100-ZV7-000

PUMP ASSY., OIL

$229.99

$

Usually ships in 3-6 days

0

2

Honda 15111-ZV7-000

BODY, OIL PUMP

$140.99

$

Usually ships in 3-6 days

0

3

Honda 15121-ZV7-000

COVER, OIL PUMP

$42.99

$

Usually ships in 3-6 days

0

4

Honda 15136-ZV7-000

SHAFT, OIL PUMP

$15.99

$

Usually ships in 3-6 days

0

5

Honda 15220-ZV7-000

STRAINER, OIL

$87.99

$

Usually ships in 3-6 days

0

6

Honda 15231-413-020

VALVE, RELIEF

$28.99

$

Usually ships in 3-6 days

0

7

Honda 15232-KT8-000

SPRING, RELIEF VALVE

$5.49

$

Usually ships in 3-6 days

0

8

Honda 15236-ZV5-010

BOLT, SEALING (14MM)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 15302-PE0-300

WASHER, SEALING (14MM)

$8.99

$

Usually ships in 3-6 days

0

10

$104.99

$

Usually ships in 3-6 days

0

11

Honda 18333-ZV7-000

GASKET, EX. PIPE

$7.49

$

Usually ships in 3-6 days

0

12

Honda 19252-ZV5-000

GROMMET, WATER TUBE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 90017-ZV0-000

BOLT, FLANGE (6X18)

Note: Use up to Engine SN 2004826.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90017-ZV0-C10

BOLT, FLANGE (6X18) (CT200)
(Superseded to 90104-ZZ5-M01)

Note: Use from Engine SN 2004827.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90456-333-000

WASHER, THRUST (11MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 91301-ZV7-010

O-RING, PUMP COVER

$7.99

$

Usually ships in 3-6 days

0

18

Honda 91302-ZV7-000

O-RING, PUMP COVER

$5.99

$

Usually ships in 3-6 days

0

19

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 5

0

20

Honda 95701-06045-02

BOLT, FLANGE (6X45)

Note: Use up to Engine SN 2004826.

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90020-ZW5-000

BOLT, FLANGE (6X45)

Note: Use from Engine SN 2004827.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 96220-40158

ROLLER (4X15.8)

$0.99

$

Usually ships in 3-6 days

0
