BF25 A2 LRSA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) IGNITION COIL Parts Diagram

Marine Engine, Made in Japan

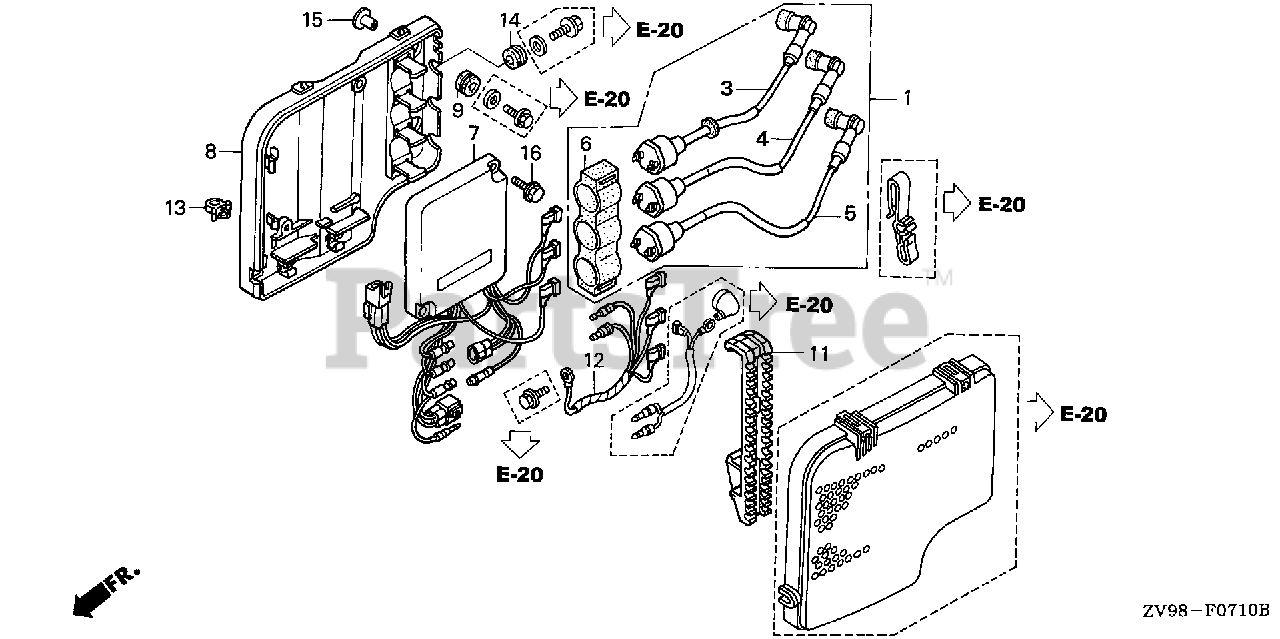

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZW2-F01

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$118.99

$

Usually ships in 3-6 days

0

3

Honda 30511-ZV7-003

COIL, IGNITION (1)

$56.99

$

Usually ships in 3-6 days

0

4

Honda 30512-ZV7-003

COIL, IGNITION (2)

$56.99

$

Usually ships in 3-6 days

0

5

Honda 30513-ZW2-F01

COIL, IGNITION (3)

$43.99

$

Usually ships in 3-6 days

0

6

Honda 30516-ZV5-003

SUSPENSION, IGNITION COIL

$8.99

$

Usually ships in 3-6 days

0

7

Honda 30580-ZV7-781

MODULE, IGNITION CONTROL (CDI)

$

$

Not available

8

Honda 30587-ZV5-003

CASE, IGNITION CONTROL MODULE (CDI)

$48.99

$

Usually ships in 3-6 days

0

9

Honda 30598-ZV5-000

GROMMET, MODULE IGNITION CONTROL CASE (CDI)(B)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 32106-ZV5-010

BRACKET, CONNECTOR (A)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 32610-ZV7-750

WIRE ASSY., GROUND

$55.99

$

Usually ships in 3-6 days

0

13

Honda 32805-413-000

CLIP, TURN SIGNAL WIRE

$2.99

$

Usually ships in 3-6 days

0

14

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 91553-ZV5-000

SEE PART DETAILS - SUP; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
(Superseded to 91553-ZV5-010)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0
