BF25 A2 LHA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) ENGINE COVER Parts Diagram

Marine Engine, Made in Japan

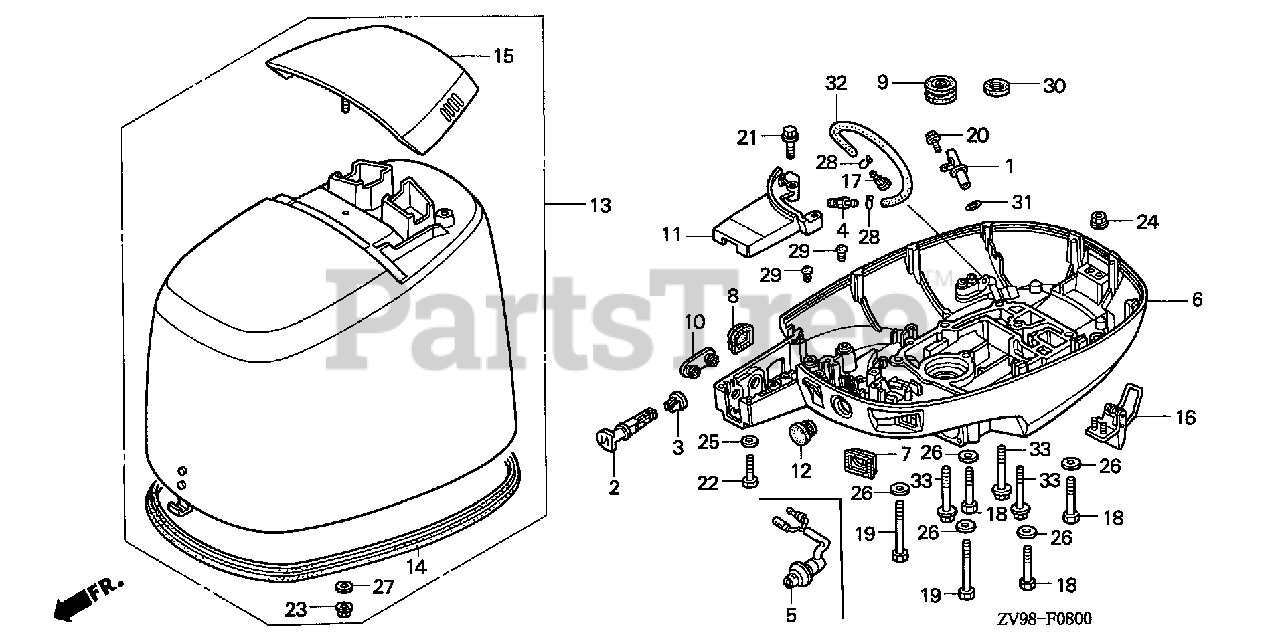

ENGINE COVER Parts Diagram

  • Title

1

Honda 15665-ZV7-020

SEE PART DETAILS - PRI; PIPE, OIL LEVEL

$17.99

$

Usually ships in 3-6 days

0

2

Honda 17951-ZV5-000

KNOB, CHOKE

$14.99

$

Usually ships in 3-6 days

0

3

Honda 17953-ZV5-000

GUIDE, CHOKE KNOB

$8.99

$

Usually ships in 3-6 days

0

4

Honda 19271-ZV5-000

JOINT, WATER HOSE

$

$

Not available

5

Honda 37210-ZV4-003

LAMP ASSY., INDICATOR

$48.99

$

Usually ships in 3-6 days

0

6

Honda 40101-ZV7-405ZA

CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$1353.99

$

Usually ships in 3-6 days

0

7

Honda 40106-ZV5-000

GROMMET, CASE (LOWER) (B)

$10.99

$

Usually ships in 3-6 days

0

8

Honda 40107-ZV7-750

GROMMET, CASE (LOWER) (C)

$9.49

$

Usually ships in 3-6 days

0

9

Honda 40109-ZV4-010

GROMMET, OIL CASE (E)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 40151-ZV7-000ZA

CASE, SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U)

$91.99

$

Usually ships in 3-6 days

0

13

Honda 63100-ZV7-020ZA

COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

14

Honda 63102-ZV7-300

SEAL, ENGINE COVER

$73.99

$

Usually ships in 3-6 days

0

15

Honda 63105-ZV5-000ZA

HANDLE, TILT *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

16

Honda 63240-ZV5-000

LEVER, FASTENER

$51.99

$

Usually ships in 3-6 days

0

17

Honda 82873-ZV5-000

GROMMET, WATER CHECK
(Superseded to 82873-ZV5-003)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90010-ZV7-000

BOLT, HEX. (8X80)

$9.99

$

Usually ships in 3-6 days

0

20

Honda 90013-ZV4-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90015-ZV0-C10

BOLT, FLANGE (6X28) (CT200)
(Superseded to 90103-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90121-ZV4-000

BOLT, HEX. (6X45)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90301-473-003

NUT, U (6MM)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 90205-PP9-020

NUT, SELF-LOCK (6MM)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90512-921-010

WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 91221-ZV5-005

SEAL, WATER (17X26X7)

$9.49

$

Usually ships in 3-6 days

0

31

Honda 91309-PJ7-010

O-RING (11.5X3.5)

$4.49

$

Usually ships in 3-6 days

0

32

Honda 95005-45001-30M

BULK HOSE, VACUUM (4.5X1000) (4.5X330)

$12.99

$

Usually ships in 3-6 days

0

33

Honda 95701-08070-00

BOLT, FLANGE (8X70)

$3.99

$

Usually ships in 3-6 days

0
