BF25 A2 LHA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) CYLINDER HEAD Parts Diagram

Marine Engine, Made in Japan

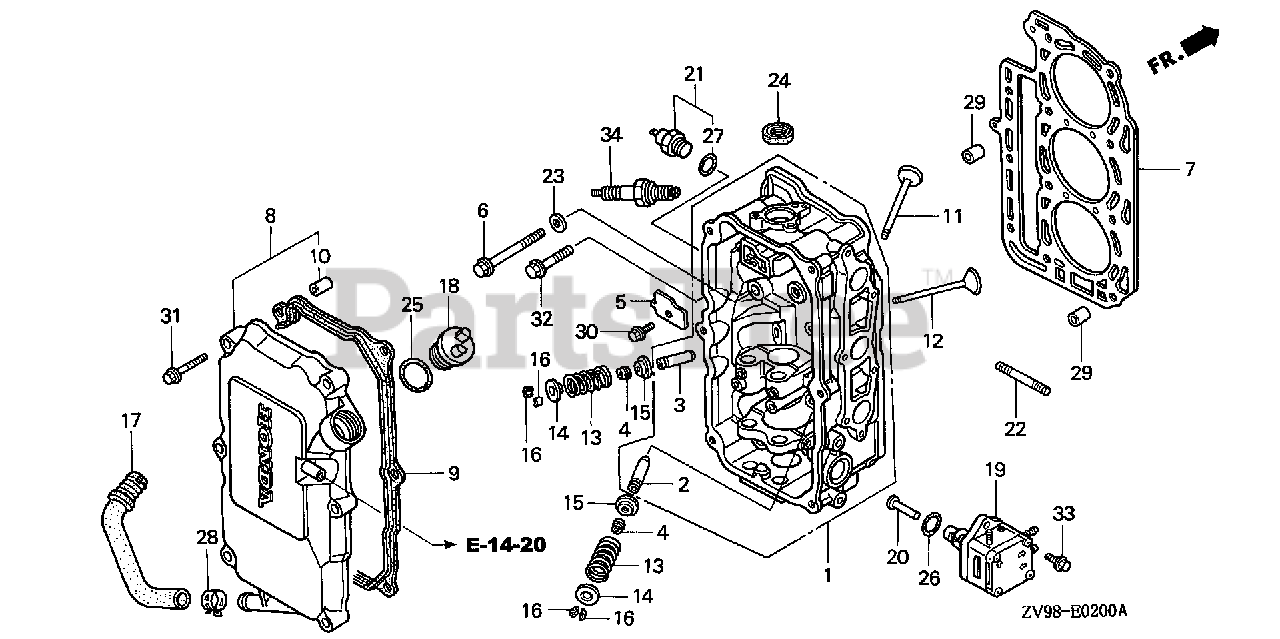

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 04101-ZV7-505ZA

CYLINDER HEAD *NH8* (DARK GRAY)

$1220.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZV4-315

GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

3

Honda 12205-ZV4-315

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 12209-KL4-005

SEAL, VALVE STEM (NOK)

$10.99

$

Usually ships in 3-6 days

0

5

Honda 12212-ZV7-000

PLATE, OIL CHAMBER

$9.49

$

Usually ships in 3-6 days

0

6

Honda 12228-ZV7-000

BOLT, FLANGE (8X80)

$6.49

$

Usually ships in 3-6 days

0

7

Honda 12251-ZV7-004

GASKET, CYLINDER HEAD

$103.99

$

Usually ships in 3-6 days

0

8

Honda 12310-ZV7-020

COVER, CYLINDER HEAD
(Superseded to 12310-ZV7-040)

$149.99

$

Usually ships in 3-6 days

0

9

Honda 12312-ZV7-000

GASKET, HEAD COVER
(Superseded to 12312-ZV7-010)

Note: Use up to Engine SN 2004739.

$26.99

$

Usually ships in 3-6 days

0

9

Honda 12312-ZV7-010

GASKET, HEAD COVER

Note: Use from Engine SN 2004740.

$26.99

$

Usually ships in 3-6 days

0

10

Honda 12314-ZV5-300

COLLAR, HEAD COVER

$6.49

$

Usually ships in 3-6 days

0

11

Honda 14711-ZV4-000

VALVE, IN.

$

$

Not available

12

Honda 14721-ZV7-000

VALVE, EX.

$

$

Not available

13

Honda 14751-ZV4-000

SPRING, VALVE

$

$

Not available

14

Honda 14771-ZV1-000

RETAINER, VALVE SPRING

$8.49

$

Usually ships in 3-6 days

0

15

Honda 14775-028-010

SEAT, VALVE SPRING

$5.49

$

Usually ships in 3-6 days

0

16

Honda 14781-107-003

COTTER, VALVE (SANKO)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 06154-ZV7-000

TUBE SET, OIL

$25.99

$

Usually ships in 3-6 days

0

18

Honda 15611-ZV4-000

CAP, OIL

$10.99

$

Usually ships in 3-6 days

0

19

Honda 16700-ZV5-003

PUMP ASSY., FUEL
(Superseded to 16700-ZW1-004)

Note: Use up to Engine SN 2004271.

$153.99

$

Usually ships in 3-6 days

0

19

Honda 16700-ZW1-004

PUMP ASSY., FUEL (MSDS)

$153.99

$

Usually ships in 3-6 days

0

20

Honda 16716-ZV5-000

LIFTER, FUEL PUMP

$12.99

$

Usually ships in 3-6 days

0

21

Honda 37760-ZV7-013

SWITCH ASSY., THERMOSTAT

$

$

Not available

22

Honda 90006-ZV5-000

BOLT, STUD (6X28)

Note: Use up to Engine SN 2004826.

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90006-ZV5-010

BOLT, STUD (6X28)

Note: Use from Engine SN 2004827.

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90405-ZV5-010

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 91202-KJ9-003

OIL SEAL (20X32X6)

$6.49

$

In Stock, Qty 8

0

25

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

Usually ships in 3-6 days

0

26

Honda 91351-MG7-003

O-RING (20.8X2.4)

$3.49

$

In Stock, only 2 left!

0

27

Honda 91307-PH7-660

O-RING (13.5X1.4)

$3.99

$

In Stock, only 2 left!

0

28

Honda 90601-ZV3-000

CLAMP, TUBE (D17)
(Superseded to 90601-ZV3-030)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 94301-10120

PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

31

Honda 95701-06035-02

BOLT, FLANGE (6X35)

Note: Use up to Engine SN 2004826.

$1.49

$

Usually ships in 3-6 days

0

31

Honda 90144-ZW4-010

BOLT, FLANGE (6X35)

Note: Use from Engine SN 2004827.

$

$

Not available

32

Honda 95701-08040-02

BOLT, FLANGE (8X40)

Note: Use up to Engine SN 2004826.

$1.99

$

Usually ships in 3-6 days

0

32

Honda 90155-ZW4-000

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)
(Superseded to 90055-ZZ5-M01)

Note: Use from Engine SN 2004827.

$2.99

$

Usually ships in 3-6 days

0

33

Honda 96001-06020-02

BOLT, FLANGE (6X20)

Note: Use up to Engine SN 2004826.

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90168-ZW4-000

BOLT, FLANGE (6X20) (SH)
(Superseded to 90068-ZZ5-M01)

Note: Use from Engine SN 2004827.

$1.99

$

Usually ships in 3-6 days

0

34

Honda 98069-5771P

SPARK PLUG (DR7EA) (NGK)

$3.49

$

In Stock, Qty 9

0

34

Honda 98069-57726

SPARK PLUG (X22ESR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
