BF25 A1 SRSA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3210001 - BAJS-3219999) METER KITS Parts Diagram

Marine Engine, Made in Japan

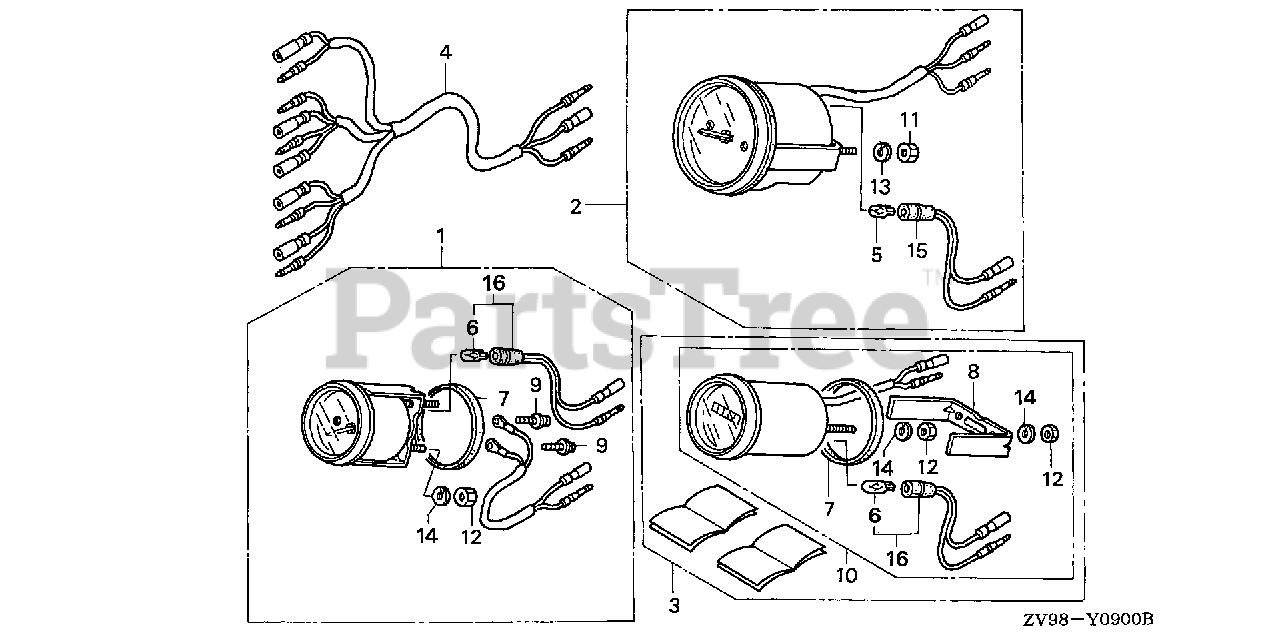

METER KITS Parts Diagram

  • Title
1

Honda 06374-ZW5-U00

METER KIT, VOLT

Note: (Optional).

$68.99

$

Usually ships in 3-6 days

0

1

Honda 06374-ZW5-U10

METER KIT, VOLT (B)

Note: (Optional).

$68.99

$

Usually ships in 3-6 days

0

2

Honda 06375-ZV7-U00

METER KIT, TACHO (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

2

Honda 06375-ZV7-U10

METER KIT, TACHO (B)

Note: (Optional).

$148.99

$

Usually ships in 3-6 days

0

3

Honda 06397-ZW5-U00

METER KIT, HOUR (NA USE ALT:39700-ZW5-000ZA)

Note: (Optional).

$

$

Currently unavailable

3

Honda 06397-ZW5-U10

METER KIT, HOUR (B) (NA USE ALT:39700-ZW5-000ZA)

Note: (Optional).

$

$

Currently unavailable

4

Honda 32550-ZW5-U00

HARNESS ASSY., METER (B)

Note: (Optional).

$46.99

$

Usually ships in 3-6 days

0

5

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 34908-MG9-951

BULB, WEDGE BASE (12V 1.7W)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

7

Honda 37264-ZV5-821

GASKET

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 37266-ZV5-821

BRACKET

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

9

Honda 37305-KE5-008

SCREW-WASHER (3X22)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 39700-ZW5-U01

METER ASSY., HOUR

Note: (Optional).

$338.99

$

Usually ships in 3-6 days

0

10

Honda 39700-ZW5-U11

METER ASSY., HOUR (B)

Note: (Optional).

$338.99

$

Usually ships in 3-6 days

0

11

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90310-ZV5-821

NUT, HEX. (4MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90560-ZV5-821

WASHER, SPRING (4MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

15

Honda 37258-ZV5-U01

SOCKET

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

16

Honda 37258-ZW5-U01

SOCKET

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0
