BF225 D URA (BBPJ) - Honda Marine Engine, Made in Japan (SN: BBPJ-1000001 - BBPJ-9999999) SHIFT SHAFT (MECH) Parts Diagram

Marine Engine, Made in Japan

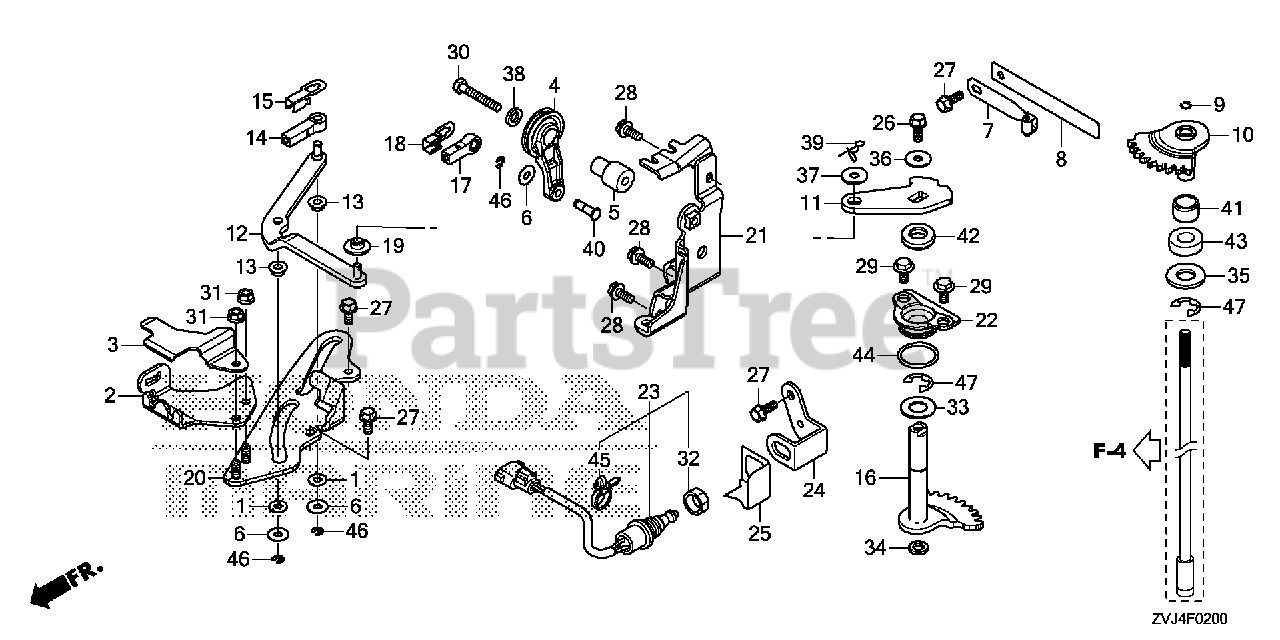

SHIFT SHAFT (MECH) Parts Diagram

  • Title
1

Honda 17224-KN5-670

WASHER, AIR CLEANER COVER SETTING

$1.99

$

In Stock, Qty 5

0

2

Honda 17877-ZVL-900

PLATE, REMOTE CONTROL CABLE

$23.99

$

Usually ships in 3-6 days

0

3

Honda 17878-ZVL-900

COVER, REMOTE CONTROL CABLE

$14.99

$

Usually ships in 3-6 days

0

4

Honda 17931-ZY3-000

ARM, THROTTLE

$25.99

$

Usually ships in 3-6 days

0

5

Honda 17932-ZVL-900

SHAFT, THROTTLE ARM

$29.99

$

Usually ships in 3-6 days

0

6

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

7

Honda 24210-ZVL-000

SPRING, CLICK

$11.99

$

Usually ships in 3-6 days

0

8

Honda 24221-ZY3-000

SPRING, CLICK ASSIST

$18.99

$

Usually ships in 3-6 days

0

9

Honda 24327-ZW1-000

RING, STOPPER

$2.49

$

Usually ships in 3-6 days

0

10

Honda 24610-ZY3-A00

SHAFT, SHIFT (A)

$116.99

$

Usually ships in 3-6 days

0

11

Honda 24612-ZVL-900

ARM, SHIFT (MECH)

$25.99

$

Usually ships in 3-6 days

0

12

Honda 24613-ZVL-900

ROD, LINK (MECH)

$

$

Not available

13

Honda 24617-ZY3-000

COLLAR, SHIFT SLIDER

$5.99

$

Usually ships in 3-6 days

0

14

Honda 24618-ZY3-000

PIVOT, SHIFT

$8.49

$

Usually ships in 3-6 days

0

15

Honda 24619-ZY3-000

PLATE, LOCK

$7.99

$

Usually ships in 3-6 days

0

16

Honda 24620-ZY3-000

SHAFT, SHIFT (B)

$121.99

$

Usually ships in 3-6 days

0

17

Honda 24621-ZVL-000

PIVOT, THROTTLE

$7.49

$

Usually ships in 3-6 days

0

18

Honda 24622-ZVL-000

PLATE, LOCK

$6.99

$

Usually ships in 3-6 days

0

19

Honda 24623-ZY3-000

BUSH, SHIFT ARM

$8.99

$

Usually ships in 3-6 days

0

20

Honda 24627-ZVL-900

GUIDE, SHIFT LINK (MECH)

$128.99

$

Usually ships in 3-6 days

0

21

Honda 24628-ZVL-900

BRACKET, SHIFT LINK (MECH)

$170.99

$

Usually ships in 3-6 days

0

22

Honda 24629-ZW1-000

HOLDER, SEAL

$30.99

$

Usually ships in 3-6 days

0

23

Honda 35470-ZX2-013

SWITCH ASSY., NEUTRAL

$60.99

$

Usually ships in 3-6 days

0

24

Honda 35476-ZY3-010

BRACKET, NEUTRAL SWITCH

$31.99

$

Usually ships in 3-6 days

0

25

Honda 35477-ZVL-000

COVER, NEUTRAL SWITCH

$4.49

$

Usually ships in 3-6 days

0

26

Honda 90017-ZZ5-M00

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

27

Honda 90021-ZZ5-M00

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 90101-ZX2-C00

BOLT-WASHER (6X16)

$3.99

$

Usually ships in 3-6 days

0

29

Honda 90101-ZZ0-M00

BOLT, FLANGE (6X11)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 90114-881-000

BOLT, HEX. (6X40)

$4.99

$

Usually ships in 3-6 days

0

31

Honda 90201-ZZ5-M00

NUT, FLANGE (6MM)
(Superseded to 90201-ZZ5-M01)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 90302-ZV5-003

NUT, HEX. (20MM)

$7.49

$

Usually ships in 3-6 days

0

33

Honda 90402-HA0-000

WASHER, THRUST (14MM)

$5.49

$

Usually ships in 3-6 days

0

34

Honda 90428-958-000

WASHER B, THRUST (14MM)

$6.99

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

36

Honda 90508-ZZ5-M00

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

37

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

In Stock, only 1 left!

0

38

Honda 90512-ZV4-000

WASHER, PLAIN (6MM)

$4.49

$

Usually ships in 3-6 days

0

39

Honda 90705-SD2-931

PIN, SNAP (6MM)

$5.49

$

Usually ships in 3-6 days

0

40

$17.99

$

Usually ships in 3-6 days

0

41

Honda 91152-ZY3-003

RING (INNER) (15X20X13)

$16.99

$

Usually ships in 3-6 days

0

42

Honda 91251-ZW5-003

OIL SEAL (14X26X6)

$5.49

$

Usually ships in 3-6 days

0

43

Honda 91255-ZY3-003

SEAL, WATER (14X26X8)

$10.99

$

Usually ships in 3-6 days

0

44

Honda 91302-PF0-003

O-RING (26.9X2.4) (NOK)

$4.49

$

Usually ships in 3-6 days

0

45

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

46

Honda 94540-04029

E-RING (4MM)

$6.99

$

In Stock, only 1 left!

0

47

Honda 94540-12029

E-RING (12MM)

$11.99

$

Usually ships in 3-6 days

0
