BF225 AK3 XXCW (BAHJ) - Honda Marine Engine, Made in Japan (SN: BAHJ-1800001 - BAHJ-9999999) SWITCH PANEL KIT (1) Parts Diagram

Marine Engine, Made in Japan

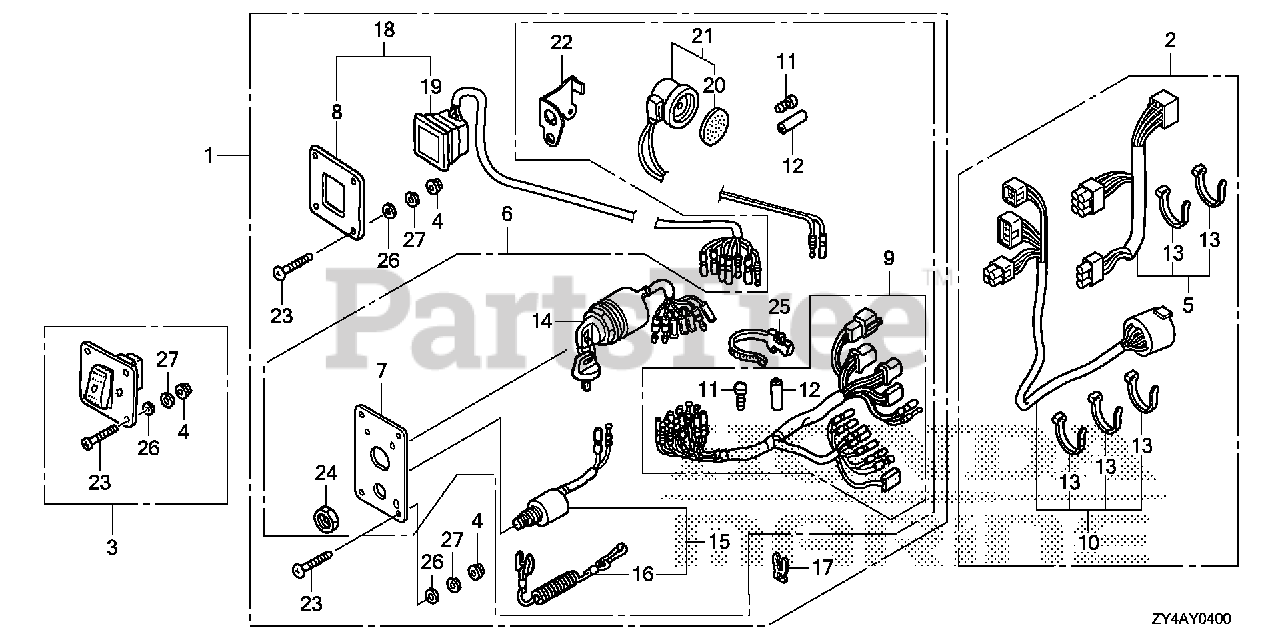

SWITCH PANEL KIT (1) Parts Diagram

  • Title

1

Honda 06323-ZZ5-664

SEE PART DETAILS - PRI; PANEL KIT, SWITCH (4-LED) (B)
(Superseded to 06323-ZZ5-M22)

Note: (Optional).

$365.99

$

Usually ships in 3-6 days

0

2

Honda 06325-ZZ5-600

CABLE SET, PANEL INDICATOR (20FT)

Note: (Optional).

$391.99

$

Usually ships in 3-6 days

0

2

Honda 06325-ZZ5-700

CABLE SET, PANEL INDICATOR (25FT)

Note: (Optional).

$489.99

$

Usually ships in 3-6 days

0

2

Honda 06325-ZZ5-800

CABLE SET, PANEL INDICATOR (30FT)

Note: (Optional).

$587.99

$

Usually ships in 3-6 days

0

3

Honda 06352-ZW5-U01

SEE PART DETAILS - PRI; SWITCH KIT, LIGHT

Note: (Optional).

$84.99

$

Usually ships in 3-6 days

0

4

Honda 18334-MT8-770

NUT, FLANGE (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

5

Honda 32185-ZZ5-600

WIRE ASSY., INDICATOR (20FT)

Note: (Optional).

$60.99

$

Usually ships in 3-6 days

0

5

Honda 32185-ZZ5-700

WIRE ASSY., INDICATOR (25FT)

Note: (Optional).

$78.99

$

Usually ships in 3-6 days

0

5

Honda 32185-ZZ5-800

WIRE ASSY., INDICATOR (30FT)

Note: (Optional).

$93.99

$

Usually ships in 3-6 days

0

6

Honda 32341-ZZ5-763

PANEL ASSY., SWITCH

Note: (Optional).

$456.99

$

Usually ships in 3-6 days

0

7

Honda 32346-ZZ5-761

PANEL, CONTROL

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

8

Honda 32347-ZZ5-761

PANEL, CONTROL

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

9

Honda 32545-ZZ5-000

HARNESS ASSY., SWITCH PANEL

Note: (Optional).

$123.99

$

Usually ships in 3-6 days

0

10

Honda 32580-ZZ5-D11

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL (25FT) (NHK MEC)

Note: (Optional).

$349.99

$

Usually ships in 3-6 days

0

10

Honda 32580-ZZ5-D01

CABLE ASSY., SWITCH PANEL (20FT) (NHK MEC)

Note: (Optional).

$279.99

$

Usually ships in 3-6 days

0

10

Honda 32580-ZZ5-D21

CABLE ASSY., SWITCH PANEL (30FT) (NHK MEC)

Note: (Optional).

$428.99

$

Usually ships in 3-6 days

0

11

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

13

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 35100-ZV5-013

SWITCH ASSY., COMBINATION

Note: (Optional).

$119.99

$

Usually ships in 3-6 days

0

15

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional).

$80.99

$

Usually ships in 3-6 days

0

16

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

17

Honda 36187-ZV4-652

CLIP, EMERGENCY LOCK

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

18

Honda 37205-ZZ5-762

PANEL ASSY., INDICATOR (4-LED)
(Superseded to 37205-ZZ5-763)

Note: (Optional).

$211.99

$

Usually ships in 3-6 days

0

19

Honda 37210-ZZ5-762

LAMP ASSY., INDICATION (4-LED)
(Superseded to 37210-ZZ5-763)

Note: (Optional).

$165.99

$

Usually ships in 3-6 days

0

20

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

21

Honda 38410-ZV5-003

BUZZER, WARNING

Note: (Optional).

$79.99

$

Usually ships in 3-6 days

0

22

Honda 38414-ZZ5-003

BRACKET, BUZZER

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

23

Honda 90109-ZW5-000

SCREW, PAN (5X40)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90302-921-000

NUT, HEX. (16MM)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

25

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

26

Honda 94103-05400

WASHER, PLAIN (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94111-05400

WASHER, SPRING (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
