BF225 AK3 XXCW (BAHJ) - Honda Marine Engine, Made in Japan (SN: BAHJ-1800001 - BAHJ-9999999) CRANKCASE Parts Diagram

Marine Engine, Made in Japan

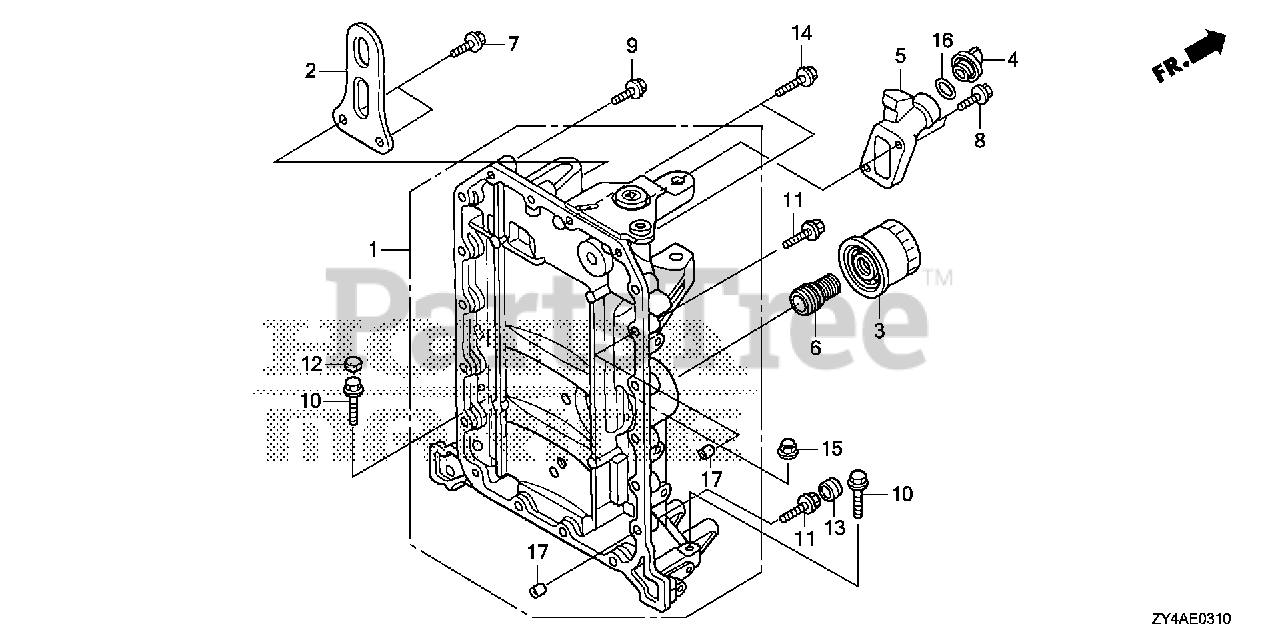

CRANKCASE Parts Diagram

  • Title

1

Honda 11100-ZY3-415

CRANKCASE

$736.99

$

Usually ships in 3-6 days

0

2

Honda 11911-ZY3-010

HANGER, ENGINE

$28.99

$

Usually ships in 3-6 days

0

3

Honda 15400-PLM-A01

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD IN MULTIPLES OF 30)
(Superseded to 15400-PLM-A02)

$12.99

$

In Stock, Qty 12

0

3

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 15

0

4

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (YELLOW)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 15631-ZW1-000

EXTENSION, OIL FILLER

$44.99

$

Usually ships in 3-6 days

0

6

Honda 90015-PH1-013

HOLDER, OIL FILTER

$10.99

$

Usually ships in 3-6 days

0

7

Honda 90026-ZY3-000

BOLT, FLANGE (8X20)
(Superseded to 90026-ZY9-M01)

$2.49

$

Usually ships in 3-6 days

0

8

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90041-ZY3-000

BOLT, FLANGE (10X55)
(Superseded to 90041-ZVL-010)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90063-ZY3-000

BOLT, FLANGE (6X37)
(Superseded to 90063-ZVL-010)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90082-ZY3-003

CAP, BOLT (10MM)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90083-ZY3-A01

CAP, BOLT (6MM)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90147-ZW4-000

BOLT, FLANGE (6X55)
(Superseded to 90047-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90204-ZY3-000

NUT, FLANGE CAP (10MM)
(Superseded to 90204-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 10

0

17

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
