BF225 AK3 XA (BAGJ) - Honda Marine Engine, Made in Japan (SN: BAGJ-1800001 - BAGJ-9999999) PROPELLER SHAFT Parts Diagram

Marine Engine, Made in Japan

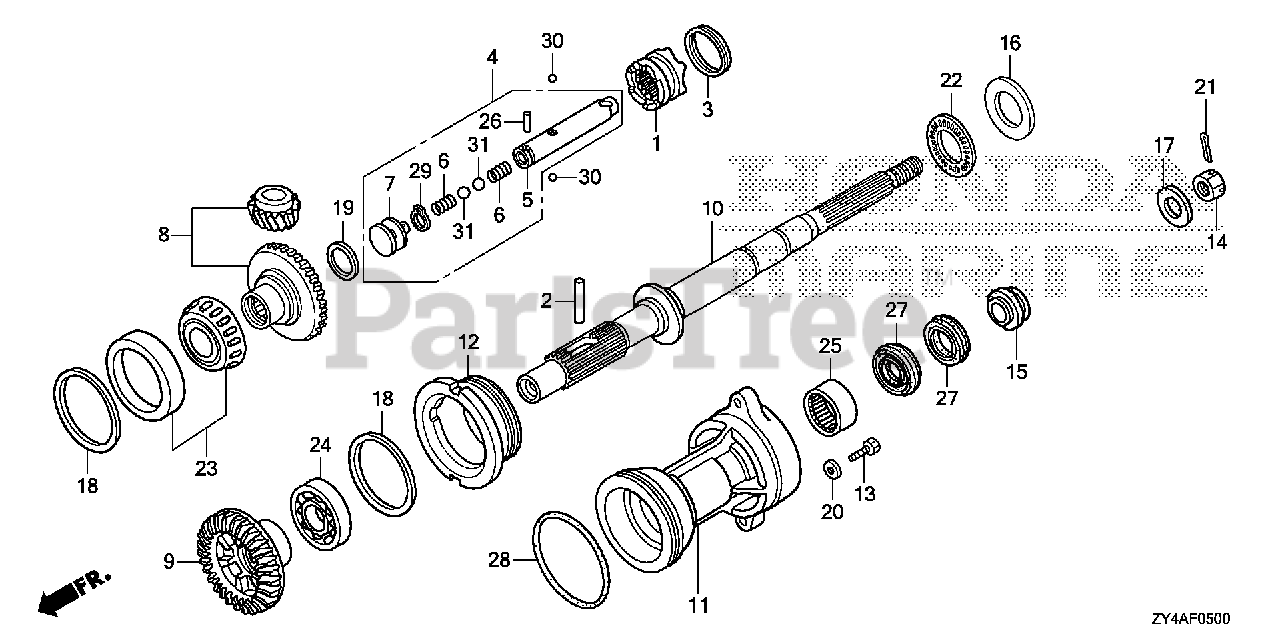

PROPELLER SHAFT Parts Diagram

  • Title

1

Honda 24101-ZY3-A01

SHIFTER, CLUTCH

$179.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZY3-000

PIN, SHIFTER (8X50)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZY3-000

RING, CROSS PIN

$3.49

$

Usually ships in 3-6 days

0

4

Honda 24113-ZY3-A01

SLIDER, SHIFT

$112.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZY3-A01

SLIDER, SHIFT

$86.99

$

Usually ships in 3-6 days

0

6

Honda 24123-ZY3-000

SPRING, SHIFT

$2.99

$

Usually ships in 3-6 days

0

7

Honda 24124-ZY3-310

PLATE, SHIFT

$21.99

$

Usually ships in 3-6 days

0

8

Honda 41130-ZY3-C00

GEAR SET

$622.99

$

Usually ships in 3-6 days

0

9

Honda 41151-ZY3-C00

GEAR, BEVEL (RVS. 28T)

$368.99

$

Usually ships in 3-6 days

0

10

Honda 41161-ZY3-A00

SHAFT, PROPELLER

$456.99

$

Usually ships in 3-6 days

0

11

Honda 41201-ZY3-C00ZB

HOLDER, PROPELLER SHAFT *NHB14M* (AQUA MARINE SILVER METALLIC)

$240.99

$

Usually ships in 3-6 days

0

12

Honda 41202-ZY3-000

HOLDER, BEARING

$123.99

$

Usually ships in 3-6 days

0

13

Honda 90123-ZY3-000

BOLT, HEX. (12X45)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90506-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$52.99

$

Usually ships in 3-6 days

0

15

Honda 90506-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZX2-C00)

$52.99

$

Usually ships in 3-6 days

0

16

Honda 90509-ZW5-711

SEE PART DETAILS - PRI; WASHER, THRUST BEARING

$20.99

$

Usually ships in 3-6 days

0

17

Honda 90512-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER

$50.99

$

Usually ships in 3-6 days

0

17

Honda 90512-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER
(Superseded to 90512-ZX2-C00)

$50.99

$

Usually ships in 3-6 days

0

18

Honda 90528-ZY3-000

SHIM A, BEVEL (0.10)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 90529-ZY3-000

SHIM B, BEVEL (0.15)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 90530-ZY3-000

SHIM C, BEVEL (0.30)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 90531-ZY3-000

SHIM D, BEVEL (0.50)

$22.99

$

Usually ships in 3-6 days

0

19

Honda 90548-ZY3-000

SHIM A, THRUST (2.75)

$16.99

$

In Stock, only 1 left!

0

19

Honda 90549-ZY3-000

SHIM B, THRUST (2.80)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90550-ZY3-000

SHIM C, THRUST (2.85)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90551-ZY3-000

SHIM D, THRUST (2.90)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90552-ZY3-000

SHIM E, THRUST (2.95)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90553-ZY3-000

SHIM F, THRUST (3.00)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90554-ZY3-000

SHIM G, THRUST (3.05)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90555-ZY3-000

SHIM H, THRUST (3.10)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90556-ZY3-000

SHIM I, THRUST (2.70)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 90557-ZY3-000

SHIM J, THRUST (2.65)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 90558-ZY3-000

SHIM K, THRUST (2.60)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 90559-ZY3-000

SHIM L, THRUST (2.55)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 90560-ZY3-000

SHIM M, THRUST (2.50)

$14.99

$

Usually ships in 3-6 days

0

20

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 91005-PT2-N01

BEARING, THRUST (F)

$21.99

$

Usually ships in 3-6 days

0

23

Honda 91051-ZY3-003

BEARING, TAPER (50X90X21.5)

$81.99

$

In Stock, only 1 left!

0

24

Honda 91055-ZY3-003

BEARING, ANGULAR (50X90X30.2)

$92.99

$

Usually ships in 3-6 days

0

25

Honda 91057-ZY3-003

BEARING, NEEDLE (32X42X30)

$61.99

$

Usually ships in 3-6 days

0

26

Honda 91151-ZY3-000

ROLLER (3X13.8)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 91252-ZZ3-003

SEAL, WATER (30X45X7)

$8.99

$

In Stock, only 1 left!

0

28

Honda 91351-ZY3-C00

O-RING (110X3.1)

$9.99

$

Usually ships in 3-6 days

0

29

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

30

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 96211-12000

BALL, STEEL (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0
