BF225 AK2 XXCA (BAHJ) - Honda Marine Engine, Made in Japan (SN: BAHJ-1700001 - BAHJ-1799999) GEAR CASE Parts Diagram

Marine Engine, Made in Japan

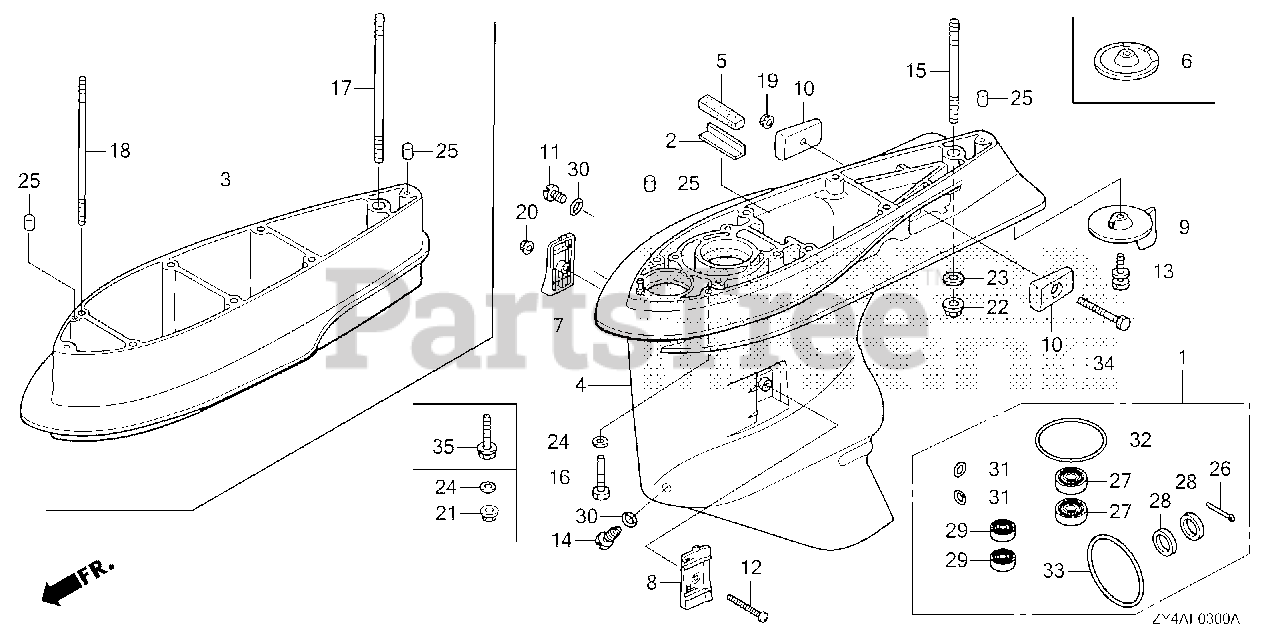

GEAR CASE Parts Diagram

  • Title

2

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$9.49

$

Usually ships in 3-6 days

0

4

Honda 41101-ZY3-C00ZB

CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)
(Superseded to 06401-ZY3-000ZB)

Note: Use up to Frame SN 1800170.

$1484.99

$

Usually ships in 3-6 days

0

4

Honda 41101-ZY3-C00ZD

CASE, GEAR *NH565* (GRAND PRIX WHITE)

Note: Use up to Frame SN 1800170.

$1385.99

$

Usually ships in 3-6 days

0

4

Honda 41101-ZY3-C01ZB

CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 1800171.

$1422.99

$

Usually ships in 3-6 days

0

4

Honda 41101-ZY3-C01ZD

CASE, GEAR *NH565* (GRAND PRIX WHITE)

Note: Use from Frame SN 1800171.

$1389.99

$

Usually ships in 3-6 days

0

5

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$9.49

$

Usually ships in 3-6 days

0

6

Honda 41102-ZX2-E00ZA

COVER, GEAR CASE *NHB14M* (AQUA MARINE SILVER METALLIC)

$49.99

$

Usually ships in 3-6 days

0

6

Honda 41102-ZX2-E00ZD

COVER, GEAR CASE *NH565* (GRAND PRIX WHITE)

$47.99

$

Usually ships in 3-6 days

0

7

Honda 41104-ZY3-C01

SCREEN, R. WATER

$15.99

$

Usually ships in 3-6 days

0

8

Honda 41105-ZY3-C01

SCREEN, L. WATER

$15.99

$

Usually ships in 3-6 days

0

10

Honda 41109-ZW1-B00

METAL, ANODE

$26.99

$

Usually ships in 3-6 days

0

11

Honda 90101-ZW9-003

BOLT, OIL CHECK

$4.49

$

In Stock, only 2 left!

0

12

Honda 90101-ZZ0-000

SCREW, FLAT (5X55)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90103-ZY6-000

BOLT-WASHER (10X32)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

$21.99

$

Usually ships in 3-6 days

0

15

Honda 90124-ZY3-000

BOLT, STUD (12X40)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$7.49

$

Usually ships in 3-6 days

0

20

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$7.49

$

Usually ships in 3-6 days

0

22

Honda 90308-ZW1-003

NUT, SELF-LOCK (12MM)

$14.99

$

Usually ships in 3-6 days

0

23

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

30

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, only 4 left!

0

34

Honda 92101-06055-4J

BOLT, HEX. (6X55)

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90107-ZX2-C00

BOLT-WASHER (10X47)

$13.99

$

Usually ships in 3-6 days

0
