BF225 AK2 LA (BAGJ) - Honda Marine Engine, Made in Japan (SN: BAGJ-1700001 - BAGJ-1799999) WATER SEPARATOR + FUEL STRAINER (1) Parts Diagram

Marine Engine, Made in Japan

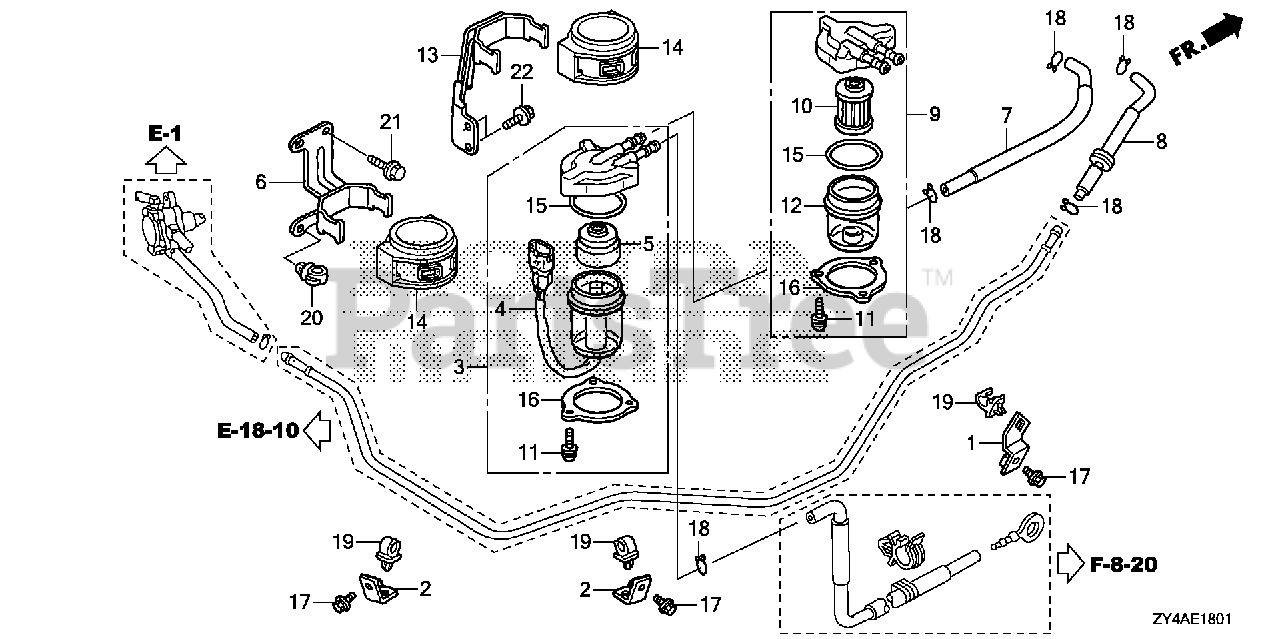

WATER SEPARATOR + FUEL STRAINER (1) Parts Diagram

  • Title
1

Honda 16753-ZY3-000

STAY, FUEL PIPE A

$11.99

$

Usually ships in 3-6 days

0

2

Honda 16754-ZY3-000

STAY, FUEL PIPE B

$9.49

$

Usually ships in 3-6 days

0

3

Honda 16800-ZY3-003

SEPARATOR ASSY., WATER

$342.99

$

Usually ships in 3-6 days

0

4

Honda 16805-ZY3-003

CUP, WATER SEPARATOR

$242.99

$

Usually ships in 3-6 days

0

5

Honda 16807-ZY3-003

BUFFER, PLATE

$62.99

$

Usually ships in 3-6 days

0

6

Honda 16814-ZY3-010

SEE PART DETAILS - PRI; STAY, WATER SEPARATOR

$30.99

$

Usually ships in 3-6 days

0

7

Honda 16860-ZY3-C00

TUBE, FUEL (B)

$19.99

$

Usually ships in 3-6 days

0

8

Honda 16870-ZY3-C00

TUBE, FUEL (C)

$30.99

$

Usually ships in 3-6 days

0

9

Honda 16900-ZY3-003

FILTER, FUEL

$63.99

$

Usually ships in 3-6 days

0

10

Honda 16901-ZY3-003

FILTER, FUEL

$19.99

$

Usually ships in 3-6 days

0

11

Honda 16904-ZY3-003

SCREW, PAN (5X12)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 16912-ZY3-003

CUP, FUEL STRAINER

$12.99

$

Usually ships in 3-6 days

0

13

Honda 16914-ZY3-010

SEE PART DETAILS - PRI; STAY, FUEL STRAINER

$34.99

$

Usually ships in 3-6 days

0

14

Honda 16915-ZY3-010

SEE PART DETAILS - PRI; SUSPENSION, STRAINER

$17.99

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

17

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90604-ZV0-000

CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90659-KG4-000

CLAMP, WIRE (8MM)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0
