BF225 AK1 XXCA (BAHJ) - Honda Marine Engine, Made in Japan (SN: BAHJ-1600001 - BAHJ-9999999) METER (1) Parts Diagram

Marine Engine, Made in Japan

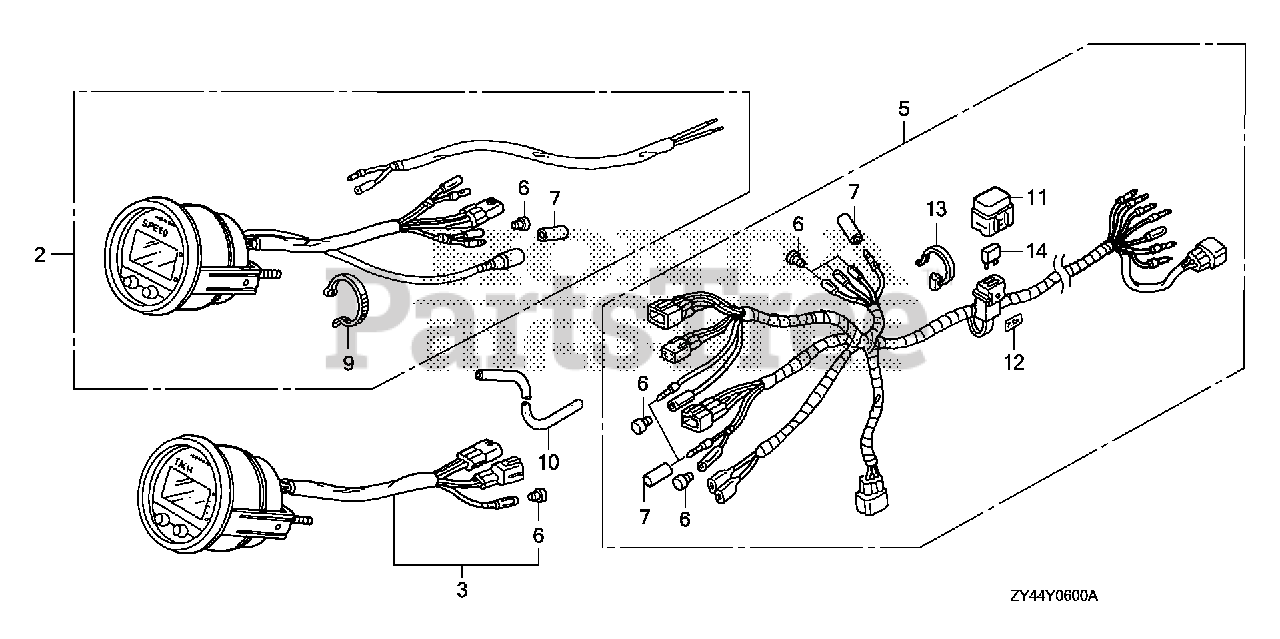

METER (1) Parts Diagram

  • Title

1

Honda 06326-ZY3-802

HARNESS KIT, METER (DIGITAL) (INCLUDE 32540-ZY3-802)

Note: (Optional).

$264.99

$

Usually ships in 3-6 days

0

2

Honda 06373-ZY3-801

SPEEDOMETER KIT (DIGITAL)(USA) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

3

Honda 06375-ZY3-802

METER KIT, TACHO (DIGITAL)(USA) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

3

Honda 06375-ZY3-812

METER KIT, TACHO (DIGITAL) (USE FOR 32540-ZY3-800/801)

Note: (Optional).

$

$

Currently unavailable

4

Honda 32185-ZY6-000

WIRE ASSY., INDICATOR (DIGITAL)

Note: (Optional).

$51.99

$

Usually ships in 3-6 days

0

5

Honda 32540-ZY3-802

HARNESS ASSY., METER (A)(DIGITAL)

Note: (Optional).

$283.99

$

Usually ships in 3-6 days

0

5

Honda 32540-ZZ3-740

HARNESS ASSY., METER (A)(DIGITAL)

Note: (Optional).

$352.99

$

Usually ships in 3-6 days

0

6

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

7

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 37202-ZW5-U01

TUBE, SPEED METER (4X7X8000)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

11

Honda 38216-ZY3-801

COVER ASSY., FUSE (7.5A)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

12

Honda 87117-ZY3-800

MARK, FUSE (7.5A)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90650-ZY1-003

TIE, CABLE

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 98200-30750

FUSE, BLADE (7.5A)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0
