BF225 AK0 XXCA (BAHJ) - Honda Marine Engine, Made in Japan (SN: BAHJ-1500001 - BAHJ-1599999) PROPELLER SHAFT (2) Parts Diagram

Marine Engine, Made in Japan

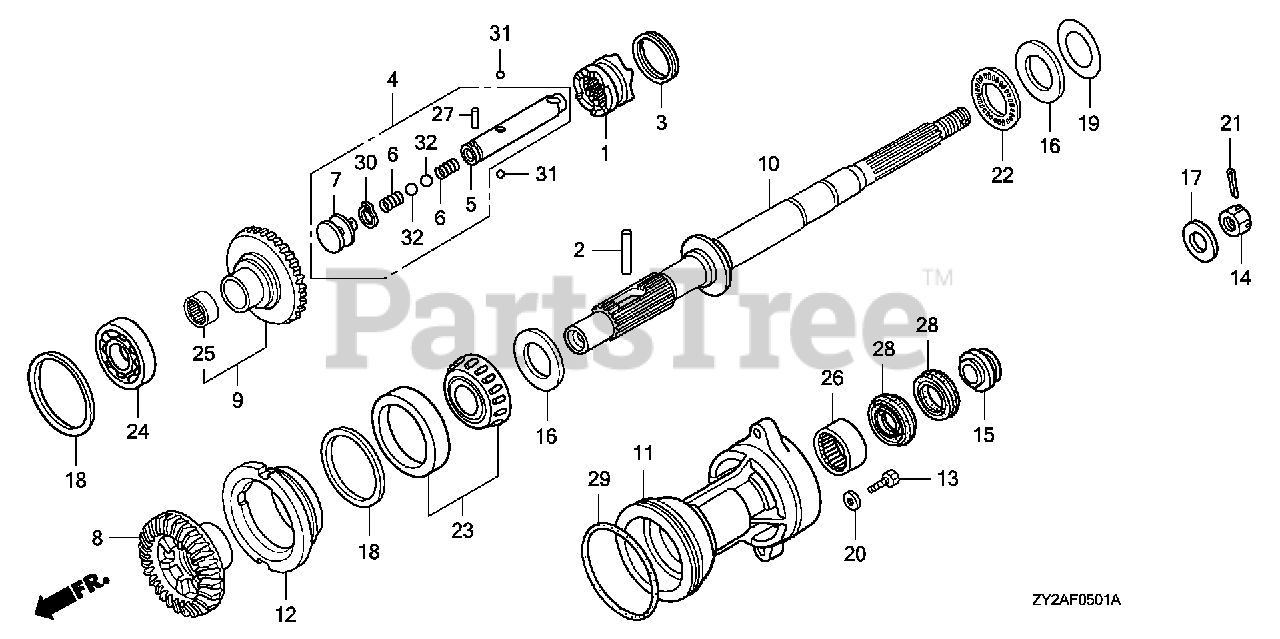

PROPELLER SHAFT (2) Parts Diagram

  • Title

1

Honda 24101-ZY3-A00

SHIFTER, CLUTCH

Note: Use up to Frame SN 1500638.

$215.99

$

Usually ships in 3-6 days

0

1

Honda 24101-ZY3-A01

SHIFTER, CLUTCH

Note: Use from Frame SN 1500639.

$201.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZY3-000

PIN, SHIFTER (8X50)

$5.99

$

Usually ships in 3-6 days

0

3

Honda 24103-ZY3-000

RING, CROSS PIN

$3.99

$

Usually ships in 3-6 days

0

4

Honda 24113-ZY3-A01

SLIDER, SHIFT

$122.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZY3-A00

SLIDER, SHIFT

Note: Use up to Frame SN 1500121.

$103.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZY3-A01

SLIDER, SHIFT

Note: Use from Frame SN 1500122.

$93.99

$

Usually ships in 3-6 days

0

6

Honda 24123-ZY3-000

SPRING, SHIFT

$3.49

$

Usually ships in 3-6 days

0

7

Honda 24124-ZY3-310

PLATE, SHIFT

$23.99

$

Usually ships in 3-6 days

0

8

Honda 41141-ZY3-B02

GEAR, BEVEL (FORWARD 28T) (COUNTER ROTATION)

Note: Use up to Frame SN 1500638.

$433.99

$

Usually ships in 3-6 days

0

8

Honda 41141-ZY3-B03

GEAR, BEVEL (FORWARD 28T) (COUNTER ROTATION)

Note: Use from Frame SN 1500639.

$392.99

$

Usually ships in 3-6 days

0

9

Honda 41150-ZY3-B02

GEAR, BEVEL (RVS. 28T) (COUNTER ROTATION)

$354.99

$

Usually ships in 3-6 days

0

10

Honda 41161-ZY3-B00

SHAFT, PROPELLER (COUNTER ROTATION)

$568.99

$

Usually ships in 3-6 days

0

11

Honda 41201-ZY3-A00ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

$247.99

$

Usually ships in 3-6 days

0

12

Honda 41202-ZY3-700

HOLDER, BEARING (COUNTER ROTATION)

$137.99

$

Usually ships in 3-6 days

0

13

Honda 90123-ZY3-000

BOLT, HEX. (12X45)

$13.99

$

Usually ships in 3-6 days

0

14

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$16.99

$

In Stock, only 2 left!

0

15

Honda 90506-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$56.99

$

Usually ships in 3-6 days

0

15

Honda 90506-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZX2-C00)

$56.99

$

Usually ships in 3-6 days

0

16

Honda 90509-ZW5-710

SEE PART DETAILS - SUP; WASHER, THRUST BEARING

$21.99

$

Usually ships in 3-6 days

0

16

Honda 90509-ZW5-711

SEE PART DETAILS - PRI; WASHER, THRUST BEARING

$21.99

$

Usually ships in 3-6 days

0

17

Honda 90512-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER

$55.99

$

Usually ships in 3-6 days

0

17

Honda 90512-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER
(Superseded to 90512-ZX2-C00)

$55.99

$

Usually ships in 3-6 days

0

18

Honda 90528-ZY3-000

SHIM A, BEVEL (0.10)

$24.99

$

Usually ships in 3-6 days

0

18

Honda 90529-ZY3-000

SHIM B, BEVEL (0.15)

$24.99

$

Usually ships in 3-6 days

0

18

Honda 90530-ZY3-000

SHIM C, BEVEL (0.30)

$24.99

$

Usually ships in 3-6 days

0

18

Honda 90531-ZY3-000

SHIM D, BEVEL (0.50)

$24.99

$

Usually ships in 3-6 days

0

19

Honda 90548-ZW5-710

SHIM A, THRUST (0.10)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 90549-ZW5-710

SHIM B, THRUST (0.15)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 90550-ZW5-710

SHIM C, THRUST (0.30)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 90551-ZW5-710

SHIM D, THRUST (0.50)

$15.99

$

Usually ships in 3-6 days

0

20

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

In Stock, only 3 left!

0

22

Honda 91005-PT2-N01

BEARING, THRUST (F)

$23.99

$

Usually ships in 3-6 days

0

23

Honda 91051-ZY3-003

BEARING, TAPER (50X90X21.5)

$91.99

$

In Stock, only 1 left!

0

24

Honda 91055-ZY3-003

BEARING, ANGULAR (50X90X30.2)

$104.99

$

Usually ships in 3-6 days

0

25

Honda 91056-ZY3-711

BEARING, NEEDLE (28X39X30)

$63.99

$

Usually ships in 3-6 days

0

26

Honda 91057-ZY3-003

BEARING, NEEDLE (32X42X30)

$67.99

$

Usually ships in 3-6 days

0

27

Honda 91151-ZY3-003

ROLLER (4X13.8)

Note: Use up to Frame SN 1500121.

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91151-ZY3-000

ROLLER (3X13.8)

Note: Use from Frame SN 1500122.

$2.99

$

Usually ships in 3-6 days

0

28

Honda 91252-ZY3-003

SEAL, WATER (30X45X7)

$10.99

$

In Stock, only 1 left!

0

29

Honda 91351-ZY3-003

O-RING (105X3.1)

$10.99

$

Usually ships in 3-6 days

0

30

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.99

$

In Stock, Qty 9

0

31

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 96211-12000

BALL, STEEL (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0
