BF225 AK0 XXA (BAGJ) - Honda Marine Engine, Made in Japan (SN: BAGJ-1500001 - BAGJ-1599999) CYLINDER BLOCK Parts Diagram

Marine Engine, Made in Japan

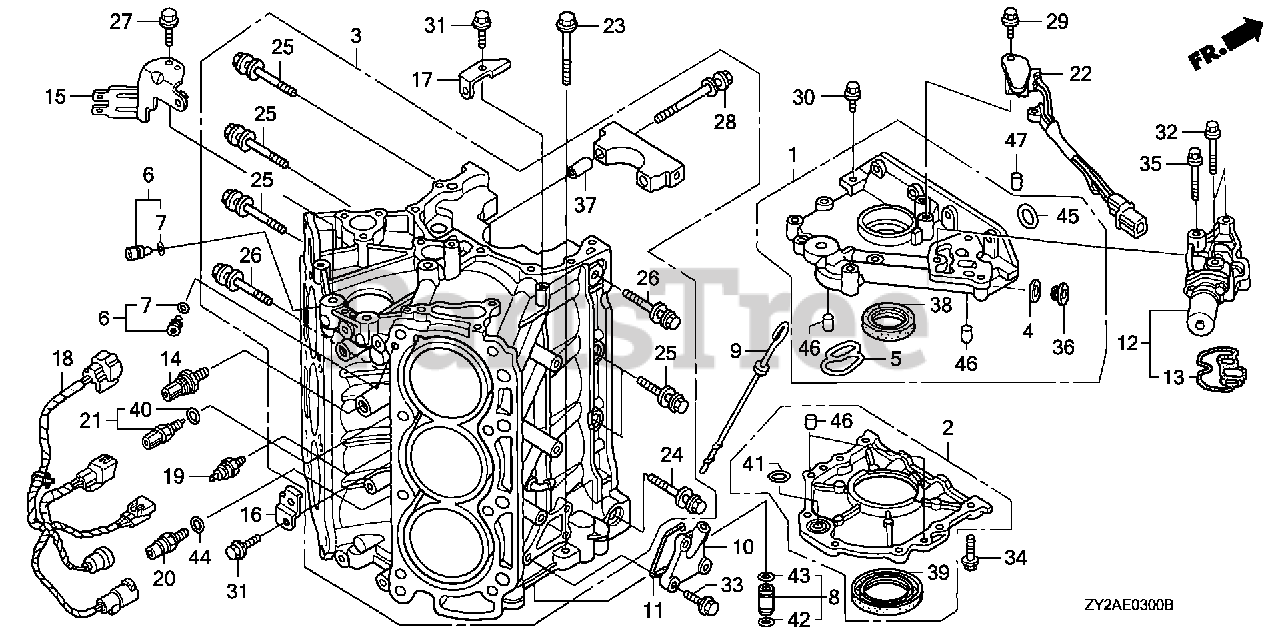

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11200-ZY3-010ZA

COVER ASSY., CRANKCASE (UPPER) *NH8* (DARK GRAY)
(Superseded to 11200-ZY3-030ZA)

$

$

Not available

2

Honda 11300-ZY3-000

CASE ASSY., OIL SEAL

$164.99

$

Usually ships in 3-6 days

0

3

Honda 12000-ZY3-406ZA

SEE PART DETAILS - SUP; BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)
(Superseded to 12000-ZY3-416ZA)

Note: Use up to Engine SN 1107193.

$4524.99

$

Usually ships in 3-6 days

0

3

Honda 12000-ZY3-416ZA

SEE PART DETAILS - PRI; BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

Note: Use up to Engine SN 1108671.

$4524.99

$

Usually ships in 3-6 days

0

3

Honda 12000-ZY3-436ZA

SEE PART DETAILS - PRI; BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

Note: Use from Engine SN 1108672.

$4354.99

$

Usually ships in 3-6 days

0

4

Honda 12214-ZV5-000

WASHER, SEALING (22MM)

$4.49

$

Usually ships in 3-6 days

0

5

Honda 15115-P8A-A01

GASKET, OIL HOLE

$6.49

$

Usually ships in 3-6 days

0

6

Honda 15140-P8A-A00

ORIFICE ASSY., OIL CONTROL

$18.99

$

Usually ships in 3-6 days

0

7

Honda 15142-P8A-A00

O-RING (8.8X2.4)

$5.49

$

Usually ships in 3-6 days

0

8

Honda 15150-P8A-A00

JOINT ASSY., OIL PIPE

$47.99

$

Usually ships in 3-6 days

0

9

Honda 15655-ZY3-000

DIPSTICK, OIL

$44.99

$

Usually ships in 3-6 days

0

10

Honda 15656-ZY3-000ZA

COVER, OIL LEVEL GAUGE *NH8* (DARK GRAY)
(Superseded to 15656-ZY3-000)

Note: Use up to Engine SN 1105786.

$48.99

$

Usually ships in 3-6 days

0

10

Honda 15656-ZY3-000

COVER, OIL LEVEL GAUGE

Note: Use from Engine SN 1105787.

$48.99

$

Usually ships in 3-6 days

0

11

Honda 15657-ZY3-000

GASKET, OIL LEVEL GAUGE

$9.99

$

Usually ships in 3-6 days

0

12

Honda 15810-ZY3-003ZA

VALVE ASSY., SPOOL *NH8* (DARK GRAY)

$454.99

$

Usually ships in 3-6 days

0

13

Honda 15825-ZY3-003

FILTER ASSY., SPOOL VALVE

$28.99

$

Usually ships in 3-6 days

0

14

Honda 30530-P8F-A01

SENSOR ASSY., KNOCK

$103.99

$

Usually ships in 3-6 days

0

15

Honda 32111-ZY3-010

BRACKET, CONNECTOR D

$16.99

$

Usually ships in 3-6 days

0

16

Honda 32114-ZW9-730

BRACKET, CLIP B

$4.49

$

Usually ships in 3-6 days

0

17

Honda 32116-ZY3-000

BRACKET B, HARNESS CLIP

$8.99

$

Usually ships in 3-6 days

0

18

Honda 32193-ZY3-000

WIRE, SWITCH

$81.99

$

Usually ships in 3-6 days

0

19

Honda 35490-ZW9-003

SWITCH ASSY., OIL PRESSURE

$44.99

$

In Stock, only 1 left!

0

20

Honda 35490-ZY3-004

SWITCH ASSY., OIL PRESSURE

$44.99

$

In Stock, only 1 left!

0

21

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$31.99

$

In Stock, only 1 left!

0

22

Honda 35700-ZY3-003

SENSOR ASSY., CRANK

$171.99

$

Usually ships in 3-6 days

0

23

Honda 90001-ZY3-000

BOLT, FLANGE (12X95)
(Superseded to 90001-ZVL-010)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 90006-ZY3-000

BOLT-WASHER (10X109)
(Superseded to 90006-ZY3-003)

Note: Use up to Engine SN 1108425.

$7.49

$

Usually ships in 3-6 days

0

24

Honda 90006-ZY3-003

BOLT-WASHER (10X109)

Note: Use from Engine SN 1108426.

$7.49

$

Usually ships in 3-6 days

0

25

Honda 90008-ZY3-003

BOLT-WASHER (10X60)

$5.99

$

Usually ships in 3-6 days

0

26

Honda 90009-ZY3-003

BOLT-WASHER (10X80)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

28

Honda 90014-RCA-A01

BOLT-WASHER (11X105)

$6.49

$

Usually ships in 3-6 days

0

29

Honda 90017-ZY3-000

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

30

Honda 90019-ZW9-000

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 90156-ZW4-000

BOLT, FLANGE (8X50)
(Superseded to 90020-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90028-ZY3-000

BOLT, FLANGE (6X18)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 90038-ZY3-000

BOLT, FLANGE (8X75)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 90081-ZV5-010

BOLT, SEALING (22MM)
(Superseded to 90081-ZZ5-M01)

$6.49

$

Usually ships in 3-6 days

0

37

Honda 90715-PH7-000

PIN, DOWEL (13X37)

$7.99

$

Usually ships in 3-6 days

0

38

Honda 91212-ZY3-003

OIL SEAL (41X66X8)

$18.99

$

Usually ships in 3-6 days

0

39

Honda 91214-PL2-003

OIL SEAL (80X98X10) (NOK)

$50.99

$

Usually ships in 3-6 days

0

40

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

41

Honda 91308-P3R-T01

SEE PART DETAILS - PRI; O-RING (26.2X2.4) (YAMADA SOMBOON)

$2.99

$

Usually ships in 3-6 days

0

42

Honda 91308-P8A-A01

O-RING (18.3X3.5)

$8.49

$

Usually ships in 3-6 days

0

43

Honda 91309-P8A-A01

O-RING (16.3X3.5)

$8.49

$

Usually ships in 3-6 days

0

44

Honda 91319-PR3-003

O-RING (13X1.5) (ARAI)

$6.49

$

Usually ships in 3-6 days

0

45

Honda 91321-P0X-003

O-RING (25X2.4) (NOK)

$5.99

$

Usually ships in 3-6 days

0

46

Honda 94301-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

47

Honda 94303-05080

PIN, DOWEL (5X8)

$2.99

$

Usually ships in 3-6 days

0
