BF225 A3 XXCA (BAHJ) - Honda Marine Engine, Made in Japan (SN: BAHJ-1100001 - BAHJ-1199999) ENGINE COVER Parts Diagram

Marine Engine, Made in Japan

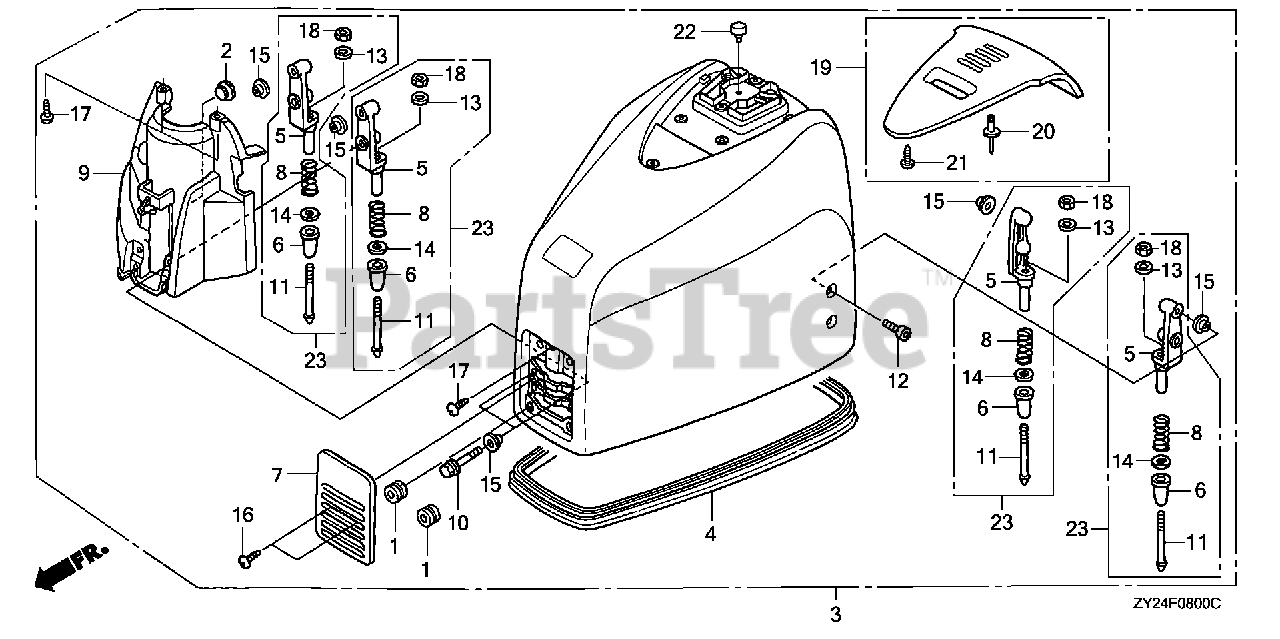

ENGINE COVER Parts Diagram

  • Title

1

Honda 17251-KE8-690

GROMMET, AIR CLEANER HOUSING

$3.49

$

Usually ships in 3-6 days

0

2

Honda 32104-538-308

GROMMET, WIRE

$9.99

$

Usually ships in 3-6 days

0

3

Honda 63100-ZY3-H00ZA

SEE PART DETAILS - SUP; COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 63100-ZY3-H02ZA)

$1973.99

$

Usually ships in 3-6 days

0

3

Honda 63100-ZY3-H01ZA

SEE PART DETAILS - PRI; COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 63100-ZY3-H02ZA)

$1973.99

$

Usually ships in 3-6 days

0

3

Honda 63100-ZY3-000ZA

SEE PART DETAILS - SUP; COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 63100-ZY3-H02ZA)

$1973.99

$

Usually ships in 3-6 days

0

4

Honda 63102-ZY3-010

SEAL, ENGINE COVER

$81.99

$

Usually ships in 3-6 days

0

5

Honda 63107-ZY3-000

BRACKET, HOOK
(Superseded to 63107-ZY3-010)

$44.99

$

Usually ships in 3-6 days

0

6

Honda 63108-ZY3-000

DAMPER, HOOK

$7.49

$

Usually ships in 3-6 days

0

7

Honda 63111-ZY3-310ZA

COVER, FR. *NH282MU* (OYSTER SILVER METALLIC-U)

$45.99

$

Usually ships in 3-6 days

0

8

Honda 63119-ZY3-000

SPRING, LOCK ADJUSTER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 63143-ZY3-H00

SEE PART DETAILS - PRI; DUCT, ENGINE COVER

$199.99

$

Usually ships in 3-6 days

0

10

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90109-ZY3-010

BOLT, COVER LOCK

$4.99

$

Usually ships in 3-6 days

0

12

Honda 90133-ZY3-000

BOLT, SOCKET (6X16)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

14

Honda 90507-ZY3-000

WASHER, PLAIN (12MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 91556-ZY3-000

COLLAR, DISTANCE (6.5X9X3)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 93911-141J0

SCREW, TAPPING (4X10)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 93913-141J0

SCREW, TAPPING (4X10)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 94002-06490-0S

NUT, HEX. (6MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 06631-ZY3-305ZA

COVER KIT, TOP *NH282MU* (OYSTER SILVER METALLIC-U)

Note: (Optional).

$120.99

$

Usually ships in 3-6 days

0

20

Honda 90852-ZY3-300

RIVET (4.1X27.7)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

21

Honda 93913-141J0

SCREW, TAPPING (4X10)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

22

Honda 95011-62000

RUBBER B, STAND STOPPER

$1.99

$

Usually ships in 3-6 days

0

23

Honda 06631-ZX2-C00

HOOK KIT, COVER
(Superseded to 06631-ZX2-C01)

Note: (Optional).

$51.99

$

Usually ships in 3-6 days

0
