BF200 D XCDA (BBRJ) - Honda Marine Engine, Made in Japan (SN: BBRJ-8000001 - BBRJ-9999999) SWITCH PANEL KIT (POWER TILT) Parts Diagram

Marine Engine, Made in Japan

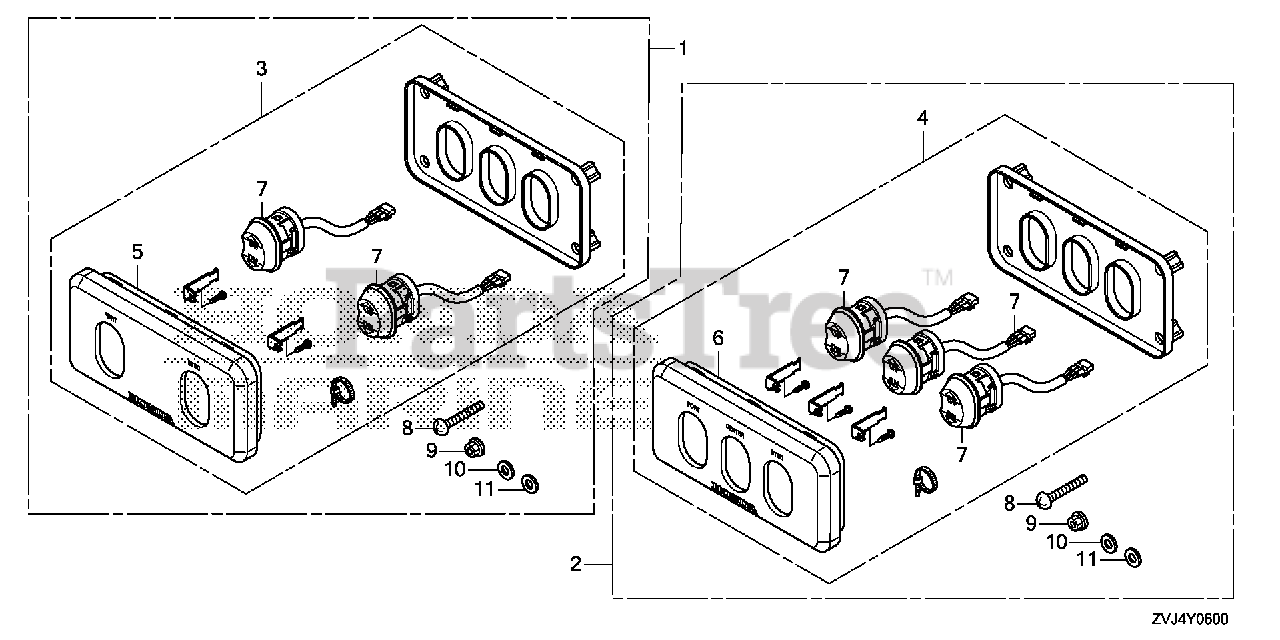

SWITCH PANEL KIT (POWER TILT) Parts Diagram

  • Title

1

Honda 06325-ZVL-000

PANEL KIT, POWER TRIM-TILT SWITCH (TWIN)
(Superseded to 06325-ZVL-010)

Note: (Optional).

$196.99

$

Usually ships in 3-6 days

0

2

Honda 06325-ZVL-600

PANEL KIT, POWER TRIM-TILT SWITCH (TRIPLE)
(Superseded to 06325-ZVL-601)

Note: (Optional).

$330.99

$

Usually ships in 3-6 days

0

3

Honda 32320-ZVL-003

PANEL ASSY., POWER TRIM-TILT SWITCH (TWIN)

Note: (Optional).

$218.99

$

Usually ships in 3-6 days

0

4

Honda 32320-ZVL-601

PANEL ASSY., POWER TRIM-TILT SWITCH (TRIPLE)

Note: (Optional).

$316.99

$

Usually ships in 3-6 days

0

5

Honda 32326-ZVL-003

PANEL, POWER TRIM-TILT SWITCH (TWIN)

Note: (Optional).

$81.99

$

Usually ships in 3-6 days

0

6

Honda 32326-ZVL-601

PANEL, POWER TRIM-TILT SWITCH (TRIPLE)

Note: (Optional).

$81.99

$

Usually ships in 3-6 days

0

7

Honda 35640-ZVL-003

SWITCH ASSY., POWER TILT

Note: (Optional).

$66.99

$

Usually ships in 3-6 days

0

8

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

9

Honda 90301-ZZ5-M00

NUT, FLANGE (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90501-ZZ5-M00

WASHER, PLAIN (5MM)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90502-ZZ5-M00

WASHER, SPRING (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0
