BF200 AK1 XCA (BAFJ) - Honda Marine Engine, Made in Japan (SN: BAFJ-1600001 - BAFJ-9999999) OIL PUMP + FLYWHEEL Parts Diagram

Marine Engine, Made in Japan

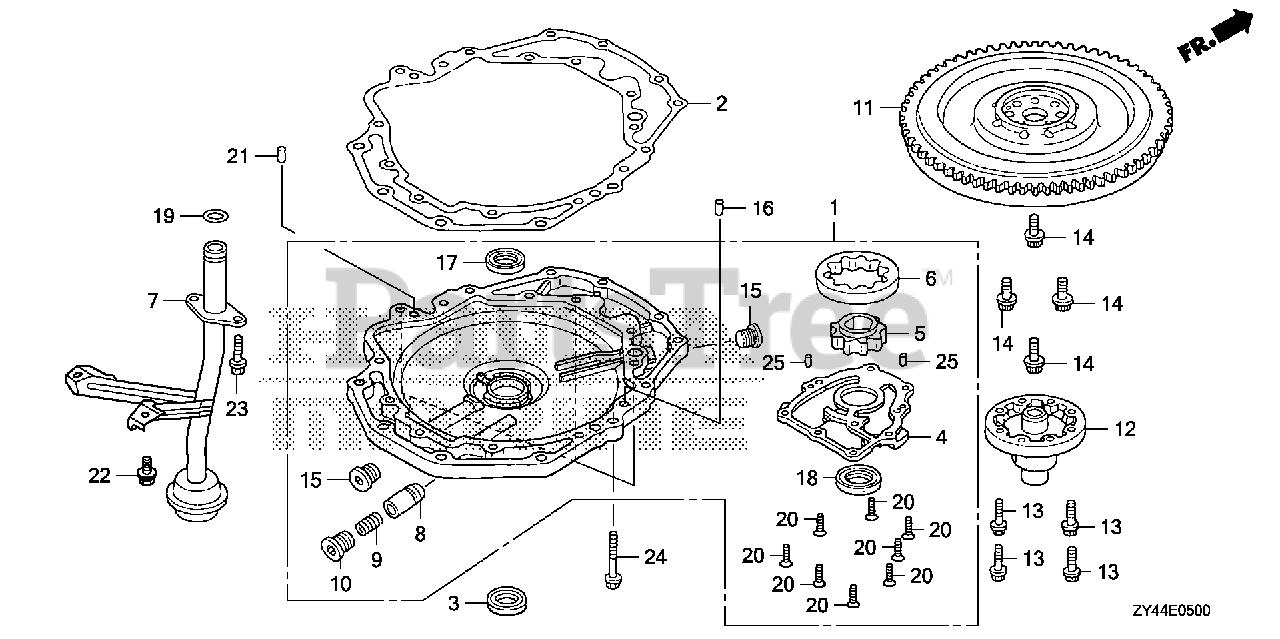

OIL PUMP + FLYWHEEL Parts Diagram

  • Title
1

Honda 15100-ZY3-000ZA

PUMP ASSY., OIL *NH8* (DARK GRAY)
(Superseded to 15100-ZVL-010ZA)

$689.99

$

Usually ships in 3-6 days

0

2

Honda 15112-ZY3-013

GASKET, OIL PUMP BODY

$77.99

$

Usually ships in 3-6 days

0

3

Honda 15113-ZY3-000

RUBBER, OIL PUMP

$10.99

$

Usually ships in 3-6 days

0

4

Honda 15121-ZY3-000

COVER, OIL PUMP

$68.99

$

Usually ships in 3-6 days

0

5

Honda 15131-ZY3-405

ROTOR, OIL PUMP (INNER)

$53.99

$

Usually ships in 3-6 days

0

6

Honda 15132-ZY3-405

ROTOR, OIL PUMP (OUTER)

$44.99

$

Usually ships in 3-6 days

0

7

Honda 15220-ZY3-020

STRAINER, OIL

$122.99

$

Usually ships in 3-6 days

0

8

Honda 15231-PE0-000

VALVE, RELIEF

$19.99

$

Usually ships in 3-6 days

0

9

Honda 15232-PG6-000

SPRING, RELIEF VALVE

$8.49

$

Usually ships in 3-6 days

0

10

Honda 15233-PC6-000

BOLT, SEALING (18MM)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 31110-ZY3-000ZA

FLYWHEEL *TBLACK* (BLACK)

$884.99

$

Usually ships in 3-6 days

0

12

Honda 31116-ZY3-000

BOSS, FLYWHEEL

$154.99

$

Usually ships in 3-6 days

0

13

Honda 90002-ZW5-013

SEE PART DETAILS - PRI; BOLT, SPECIAL (8MM)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90011-PH3-000

BOLT, FLANGE (12MM)

$12.99

$

Usually ships in 3-6 days

0

15

Honda 90081-ZV5-010

BOLT, SEALING (22MM)
(Superseded to 90081-ZZ5-M01)

$6.49

$

Usually ships in 3-6 days

0

16

Honda 90701-PW5-000

PIN, DOWEL (14X15)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 91201-ZW5-003

OIL SEAL (46X60X9)

$17.99

$

Usually ships in 3-6 days

0

18

Honda 91212-P01-003

OIL SEAL (31X46X7) (NOK)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 91324-PC6-000

O-RING (20.6X2.6)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 93600-06016-0A

SCREW, FLAT (6X16)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94302-10160

PIN B, DOWEL (10X16)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

23

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 6

0

24

Honda 95701-08030-09

BOLT, FLANGE (8X30)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 96220-50080

ROLLER (5X8)

$0.99

$

Usually ships in 3-6 days

0
