BF200 AK1 LA (BAEJ) - Honda Marine Engine, Made in Japan (SN: BAEJ-1600001 - BAEJ-9999999) CYLINDER BLOCK Parts Diagram

Marine Engine, Made in Japan

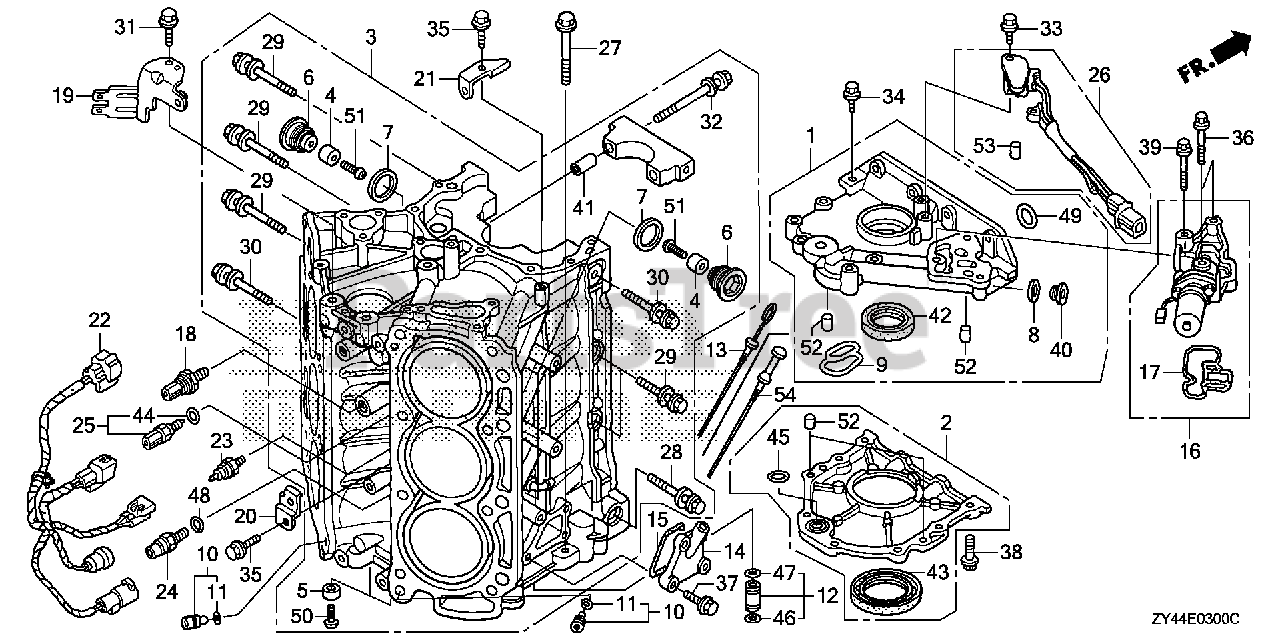

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11200-ZY3-010ZA

COVER ASSY., CRANKCASE (UPPER) *NH8* (DARK GRAY)
(Superseded to 11200-ZY3-030ZA)

$

$

Not available

2

Honda 11300-ZY3-C00

CASE ASSY., OIL SEAL

$126.99

$

Usually ships in 3-6 days

0

3

Honda 12000-ZY3-436ZA

BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

$4354.99

$

Usually ships in 3-6 days

0

4

Honda 12155-ZV4-A00

SEE PART DETAILS - PRI; METAL, ANODE
(Superseded to 12155-ZV4-A01)

$15.99

$

Usually ships in 3-6 days

0

5

Honda 12155-ZY3-000

METAL, ANODE

$11.99

$

Usually ships in 3-6 days

0

6

Honda 12164-ZY3-000

BOLT, SEALING (22MM)

$21.99

$

Usually ships in 3-6 days

0

7

Honda 12171-ZY3-305

WASHER, SEALING (22MM)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 12214-ZV5-000

SEE PART DETAILS - PRI; WASHER, SEALING (22MM)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 15115-P8A-A01

SEE PART DETAILS - PRI; GASKET, OIL HOLE

$6.49

$

Usually ships in 3-6 days

0

10

Honda 15140-P8A-A00

ORIFICE ASSY., OIL CONTROL

$18.99

$

Usually ships in 3-6 days

0

11

Honda 15142-P8A-A00

O-RING (8.8X2.4)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 15150-P8A-A00

JOINT ASSY., OIL PIPE

$47.99

$

Usually ships in 3-6 days

0

13

Honda 15655-ZY3-C00

DIPSTICK, OIL

Note: Use up to Engine SN 1200281.

$27.99

$

Usually ships in 3-6 days

0

14

Honda 15656-ZY3-000

COVER, OIL LEVEL GAUGE

$48.99

$

Usually ships in 3-6 days

0

15

Honda 15657-ZY3-000

GASKET, OIL LEVEL GAUGE

$9.99

$

Usually ships in 3-6 days

0

16

Honda 15810-ZY2-000ZA

VALVE ASSY., SPOOL *NH8* (DARK GRAY)

$280.99

$

Usually ships in 3-6 days

0

17

Honda 15825-ZY2-000

FILTER ASSY., SPOOL VALVE

$19.99

$

Usually ships in 3-6 days

0

18

Honda 30530-RNA-A01

SENSOR, KNOCK

$63.99

$

Usually ships in 3-6 days

0

19

Honda 32111-ZY3-010

BRACKET, CONNECTOR D

$16.99

$

Usually ships in 3-6 days

0

20

Honda 32114-ZW9-730

BRACKET, CLIP B

$4.49

$

Usually ships in 3-6 days

0

21

Honda 32116-ZY3-000

BRACKET B, HARNESS CLIP

$8.99

$

Usually ships in 3-6 days

0

22

Honda 32193-ZY3-C00

WIRE, SWITCH

$69.99

$

Usually ships in 3-6 days

0

23

Honda 35490-ZW9-003

SWITCH ASSY., OIL PRESSURE

$44.99

$

In Stock, only 1 left!

0

24

Honda 35490-ZY3-004

SWITCH ASSY., OIL PRESSURE

$44.99

$

In Stock, only 1 left!

0

25

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$31.99

$

In Stock, only 1 left!

0

26

Honda 35700-ZY3-003

SENSOR ASSY., CRANK

$171.99

$

Usually ships in 3-6 days

0

27

Honda 90001-ZY3-000

BOLT, FLANGE (12X95)
(Superseded to 90001-ZVL-010)

$5.99

$

Usually ships in 3-6 days

0

28

Honda 90006-ZY3-003

BOLT-WASHER (10X109)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 90008-ZY3-003

BOLT-WASHER (10X60)

$5.99

$

Usually ships in 3-6 days

0

30

Honda 90009-ZY3-003

BOLT-WASHER (10X80)

$6.49

$

Usually ships in 3-6 days

0

31

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

32

Honda 90014-RCA-A01

BOLT-WASHER (11X105)

$6.49

$

Usually ships in 3-6 days

0

33

Honda 90017-ZY3-000

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

34

Honda 90019-ZW9-000

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90156-ZW4-000

BOLT, FLANGE (8X50)
(Superseded to 90020-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 90028-ZY3-000

BOLT, FLANGE (6X18)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 90038-ZY3-000

BOLT, FLANGE (8X75)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 90081-ZV5-010

BOLT, SEALING (22MM)
(Superseded to 90081-ZZ5-M01)

$6.49

$

Usually ships in 3-6 days

0

41

Honda 90715-PH7-000

PIN, DOWEL (13X37)

$7.99

$

Usually ships in 3-6 days

0

42

Honda 91212-ZY3-003

OIL SEAL (41X66X8)

$18.99

$

Usually ships in 3-6 days

0

43

Honda 91214-RNB-A01

SEE PART DETAILS - PRI; OIL SEAL (80X98X10) (ARAI)

$24.99

$

Usually ships in 3-6 days

0

44

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

45

Honda 91308-P3R-T01

SEE PART DETAILS - PRI; O-RING (26.2X2.4) (YAMADA SOMBOON)

$2.99

$

Usually ships in 3-6 days

0

46

Honda 91308-P8A-A01

O-RING (18.3X3.5)

$8.49

$

Usually ships in 3-6 days

0

47

Honda 91309-P8A-A01

O-RING (16.3X3.5)

$8.49

$

Usually ships in 3-6 days

0

48

Honda 91319-PR3-003

O-RING (13X1.5) (ARAI)

$6.49

$

Usually ships in 3-6 days

0

49

Honda 91321-P0X-003

O-RING (25X2.4) (NOK)

$5.99

$

Usually ships in 3-6 days

0

50

Honda 93500-05016-4J

SCREW, PAN (5X16)

$1.49

$

In Stock, only 1 left!

0

51

Honda 93500-05020-4J

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

52

Honda 94301-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

53

Honda 94303-05080

PIN, DOWEL (5X8)

$2.99

$

Usually ships in 3-6 days

0

54

Honda 15655-ZX2-000

DIPSTICK, OIL

Note: Use from Engine SN 1200282.

$26.99

$

Usually ships in 3-6 days

0
