BF200 A3 LA (BAEJ) - Honda Marine Engine, Made in Japan (SN: BAEJ-1100001 - BAEJ-1199999) PROPELLER SHAFT (1) Parts Diagram

Marine Engine, Made in Japan

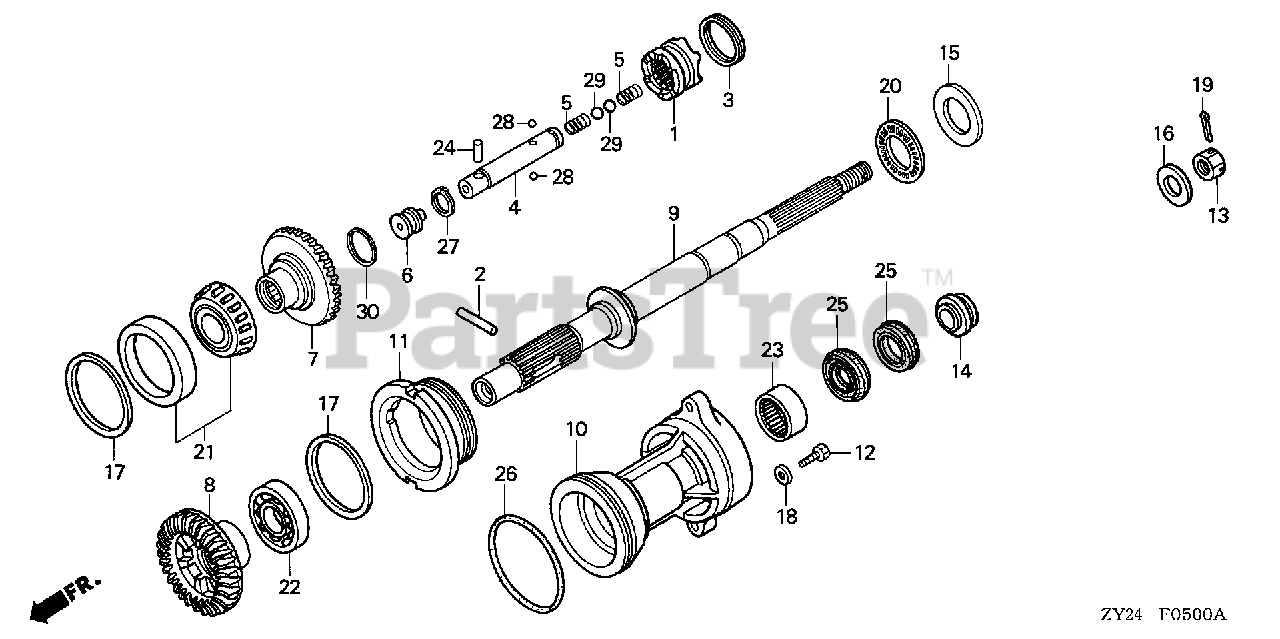

PROPELLER SHAFT (1) Parts Diagram

  • Title

1

Honda 24101-ZY3-000

SHIFTER, CLUTCH

$

$

Not available

2

Honda 24102-ZY3-000

PIN, SHIFTER (8X50)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZY3-000

RING, CROSS PIN

$3.49

$

Usually ships in 3-6 days

0

4

Honda 24122-ZY3-000

SLIDER, SHIFT

$

$

Not available

5

Honda 24123-ZY3-000

SPRING, SHIFT

$2.99

$

Usually ships in 3-6 days

0

6

Honda 24124-ZY3-310

PLATE, SHIFT

$21.99

$

Usually ships in 3-6 days

0

7

Honda 41140-ZY3-010

GEAR, FR. BEVEL (28T)
(Superseded to 41140-ZY3-A03)

$

$

Not available

8

Honda 41151-ZY3-A02

GEAR, BEVEL (RVS. 28T)

$379.99

$

Usually ships in 3-6 days

0

9

Honda 41161-ZY3-000

SHAFT, PROPELLER

Note: Use up to Frame SN 1100373.

$

$

Not available

9

Honda 41161-ZY3-010

SHAFT, PROPELLER

Note: Use from Frame SN 1100374.

$

$

Not available

10

Honda 41201-ZY3-A00ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

$247.99

$

Usually ships in 3-6 days

0

11

Honda 41202-ZY3-000

HOLDER, BEARING

$123.99

$

Usually ships in 3-6 days

0

12

Honda 90123-ZY3-000

BOLT, HEX. (12X45)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$15.99

$

Usually ships in 3-6 days

0

14

Honda 90506-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$52.99

$

Usually ships in 3-6 days

0

14

Honda 90506-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZX2-C00)

$52.99

$

Usually ships in 3-6 days

0

15

Honda 90509-ZW5-710

SEE PART DETAILS - SUP; WASHER, THRUST BEARING

$20.99

$

Usually ships in 3-6 days

0

15

Honda 90509-ZW5-711

SEE PART DETAILS - PRI; WASHER, THRUST BEARING

$20.99

$

Usually ships in 3-6 days

0

16

Honda 90512-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER

$50.99

$

Usually ships in 3-6 days

0

16

Honda 90512-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER
(Superseded to 90512-ZX2-C00)

$50.99

$

Usually ships in 3-6 days

0

17

Honda 90528-ZY3-000

SHIM A, BEVEL (0.10)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90529-ZY3-000

SHIM B, BEVEL (0.15)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90530-ZY3-000

SHIM C, BEVEL (0.30)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90531-ZY3-000

SHIM D, BEVEL (0.50)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 91005-PT2-N01

BEARING, THRUST (F)

$21.99

$

Usually ships in 3-6 days

0

21

Honda 91051-ZY3-003

BEARING, TAPER (50X90X21.5)

$81.99

$

In Stock, only 1 left!

0

22

Honda 91055-ZY3-003

BEARING, ANGULAR (50X90X30.2)

$92.99

$

Usually ships in 3-6 days

0

23

Honda 91057-ZY3-003

BEARING, NEEDLE (32X42X30)

$61.99

$

Usually ships in 3-6 days

0

24

Honda 91151-ZY3-003

ROLLER (4X13.8)

$

$

Not available

25

Honda 91252-ZY3-003

SEAL, WATER (30X45X7)

$9.49

$

In Stock, only 1 left!

0

26

Honda 91351-ZY3-003

O-RING (105X3.1)

$9.99

$

Usually ships in 3-6 days

0

27

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

28

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 96211-12000

BALL, STEEL (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 90548-ZY3-000

SHIM A, THRUST (2.75)

Note: Use from Frame SN 1100374.

$16.99

$

In Stock, only 1 left!

0

30

Honda 90549-ZY3-000

SHIM B, THRUST (2.80)

Note: Use from Frame SN 1100374.

$16.99

$

Usually ships in 3-6 days

0

30

Honda 90550-ZY3-000

SHIM C, THRUST (2.85)

Note: Use from Frame SN 1100374.

$16.99

$

Usually ships in 3-6 days

0

30

Honda 90551-ZY3-000

SHIM D, THRUST (2.90)

Note: Use from Frame SN 1100374.

$16.99

$

Usually ships in 3-6 days

0

30

Honda 90552-ZY3-000

SHIM E, THRUST (2.95)

Note: Use from Frame SN 1100374.

$16.99

$

Usually ships in 3-6 days

0

30

Honda 90553-ZY3-000

SHIM F, THRUST (3.00)

Note: Use from Frame SN 1100374.

$16.99

$

Usually ships in 3-6 days

0
