BF200 A3 LA (BAEJ) - Honda Marine Engine, Made in Japan (SN: BAEJ-1100001 - BAEJ-1199999) CONTROL PANEL Parts Diagram

Marine Engine, Made in Japan

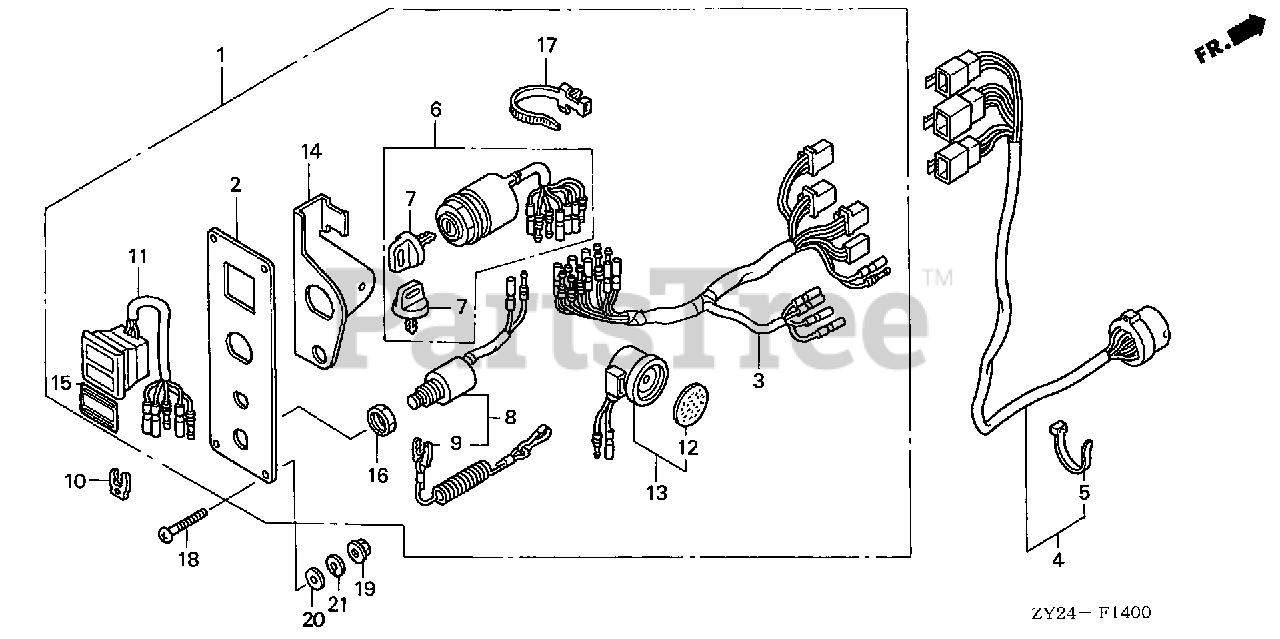

CONTROL PANEL Parts Diagram

  • Title

1

Honda 32340-ZW5-506

PANEL ASSY., CONTROL (2-LED)

Note: (Optional).

$289.99

$

Usually ships in 3-6 days

0

2

Honda 32346-ZW1-V02

PANEL, CONTROL
(Superseded to 32346-ZW1-505)

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 32545-ZW1-V03

HARNESS ASSY., SWITCH PANEL

Note: (Optional).

$137.99

$

Usually ships in 3-6 days

0

4

Honda 32580-ZW2-D01

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL

Note: (Optional).

$258.99

$

Usually ships in 3-6 days

0

5

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

6

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION

Note: (Optional).

$176.99

$

Usually ships in 3-6 days

0

7

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

8

Honda 36180-ZV5-023

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

8

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

9

Honda 36182-ZV4-650

SEE PART DETAILS - SUP; WIRE, EMERGENCY
(Superseded to 36182-ZV4-651)

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

9

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

10

Honda 36187-ZV4-652

SEE PART DETAILS - PRI; CLIP, EMERGENCY LOCK

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 37210-ZW1-702

LAMP ASSY., INDICATION (2-LED)

Note: (Optional).

$161.99

$

Usually ships in 3-6 days

0

12

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 38410-ZV5-003

BUZZER, WARNING

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

14

Honda 38414-ZW1-V02

BRACKET, BUZZER

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

15

Honda 87120-ZW5-000

MARK, SWITCH PANEL
(Superseded to 87120-ZW5-010)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

16

Honda 90302-921-000

NUT, HEX. (16MM)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

17

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

18

Honda 93500-05040-1B

SCREW, PAN (5X40)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94050-05020

NUT, FLANGE (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

20

Honda 94103-05200

WASHER, PLAIN (5MM)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

21

Honda 94111-05400

WASHER, SPRING (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
