BF20 D3 LHA (BAMJ) - Honda Outboard Engine, Made in Japan (SN: BAMJ-1000001 - BAMJ-1099999) IGNITION COIL + C.D.I. UNIT Parts Diagram

Outboard Engine, Made in Japan

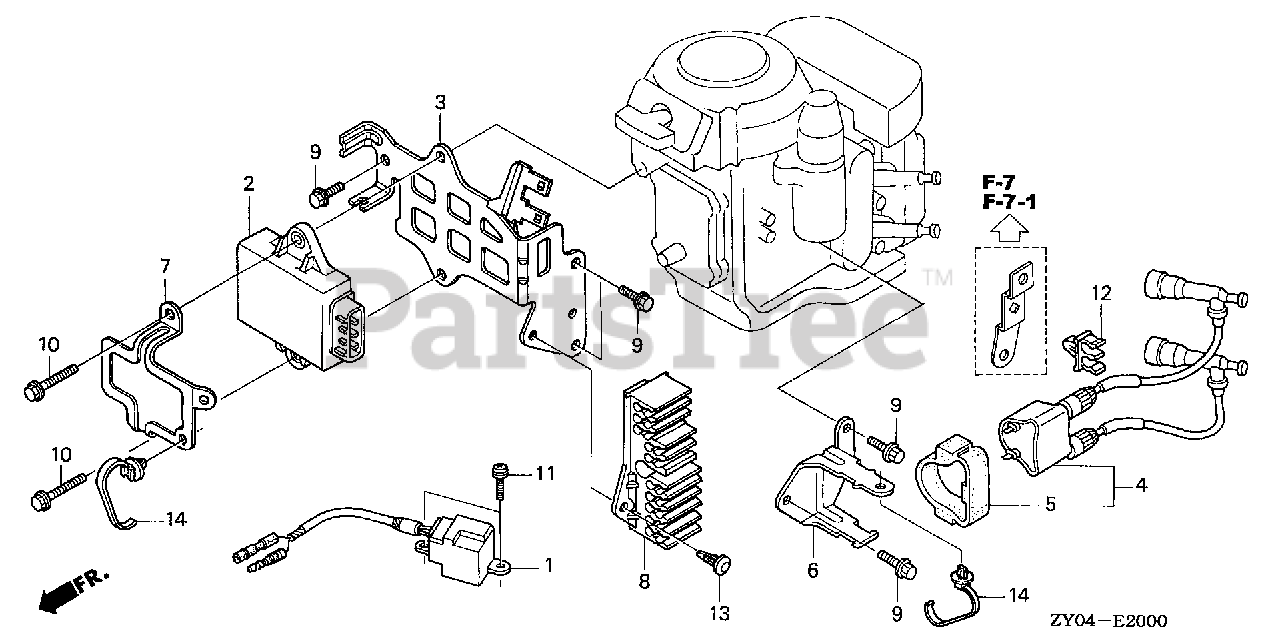

IGNITION COIL + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 30310-ZY1-003

COIL ASSY., PULSER

$62.99

$

In Stock, only 1 left!

0

2

Honda 30400-ZY1-003

MODULE, IGNITION CONTROL (CDI)

$231.99

$

Usually ships in 3-6 days

0

3

Honda 30418-ZY1-000

PLATE, C.D.I.

$

$

Not available

4

Honda 04303-ZY1-000

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$

$

Not available

5

Honda 30506-ML4-003

SUSPENSION, IGNITION COIL

$7.49

$

In Stock, only 1 left!

0

6

Honda 30515-ZW9-000

SEE PART DETAILS - SUP; BRACKET, IGNITION COIL
(Superseded to 04302-ZW9-000)

$

$

Not available

6

Honda 04302-ZW9-000

SEE PART DETAILS - PRI; BRACKET, IGNITION COIL

$

$

Not available

7

Honda 32108-ZY1-000

BRACKET, C.D.I.
(Superseded to 32108-ZY1-010)

$17.99

$

Usually ships in 3-6 days

0

8

Honda 32109-ZY1-000

BRACKET, CONNECTOR

$18.99

$

Usually ships in 3-6 days

0

9

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

10

Honda 90016-ZW9-000

BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90018-ZW9-000

SCREW-WASHER (5X16)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90684-SB3-003

CLIP, FUEL TUBE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 91501-SM4-003

CLIP, ANCHOR

$5.99

$

Usually ships in 3-6 days

0

14

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

$4.49

$

Usually ships in 3-6 days

0
