BF2 DK0 SCAB (BZBJ) - Honda Outboard Engine, Made in Japan (SN: BZBJ-2300001 - BZBJ-9999999) VERTICAL SHAFT + PROPELLER Parts Diagram

Outboard Engine, Made in Japan

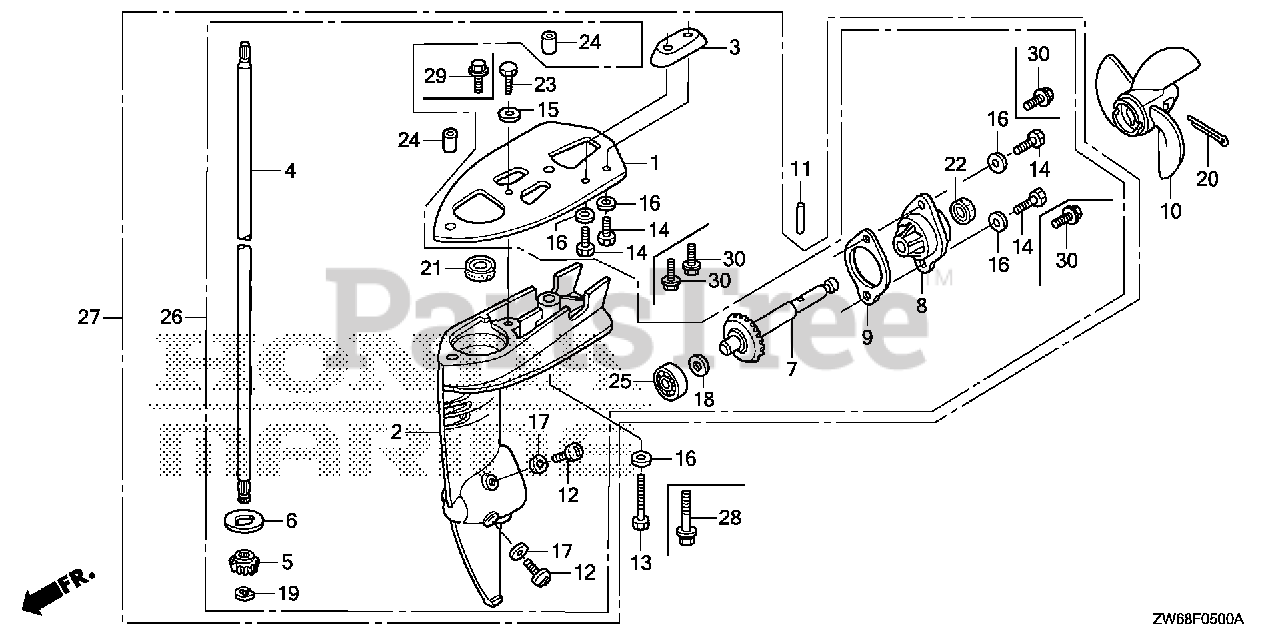

VERTICAL SHAFT + PROPELLER Parts Diagram

  • Title

1

Honda 40205-ZW6-610ZA

PLATE, CAVITATION *NH246* (LOOSY GRAY)
(Superseded to 40205-ZW6-C00ZA)

Note: Use up to Frame SN 2311247.

$38.99

$

Usually ships in 3-6 days

0

2

Honda 41100-ZW6-C01ZA

SEE PART DETAILS - PRI; CASE, GEAR *NH246* (LOOSY GRAY)
(Superseded to 41100-ZVA-000ZA)

$274.99

$

Usually ships in 3-6 days

0

3

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

$20.99

$

Usually ships in 3-6 days

0

4

Honda 41112-ZW6-C10

SEE PART DETAILS - PRI; SHAFT, VERTICAL (L)

$144.99

$

Usually ships in 3-6 days

0

5

Honda 41131-ZW6-000

GEAR, PINION

$47.99

$

Usually ships in 3-6 days

0

6

Honda 41135-ZV0-000

WASHER, PINION THRUST
(Superseded to 41135-ZVA-000)

$9.49

$

Usually ships in 3-6 days

0

7

Honda 41160-ZW6-000

SHAFT, PROPELLER

$145.99

$

Usually ships in 3-6 days

0

8

Honda 41200-ZW6-C00ZA

SEE PART DETAILS - SUP; HOLDER ASSY., PROPELLER SHAFT *NH246* (LOOSY GRAY)
(Superseded to 41200-ZW6-C10ZA)

$70.99

$

Usually ships in 3-6 days

0

8

Honda 41200-ZW6-C10ZA

SEE PART DETAILS - PRI; HOLDER ASSY., PROPELLER SHAFT *NH246* (LOOSY GRAY)

$70.99

$

Usually ships in 3-6 days

0

9

Honda 41281-ZVA-000

SEE PART DETAILS - PRI; GASKET, PROPELLER SHAFT HOLDER

$2.99

$

Usually ships in 3-6 days

0

9

Honda 41281-ZV0-850

SEE PART DETAILS - SUP; GASKET, PROPELLER SHAFT HOLDER
(Superseded to 41281-ZVA-000)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZV0-841ZB

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE *NH283* (STIN GRAY)

$59.99

$

Usually ships in 3-6 days

0

11

Honda 58131-ZV0-000

PIN, SHEAR

$4.49

$

In Stock, only 2 left!

0

12

Honda 90105-ZVA-000

SEE PART DETAILS - PRI; BOLT, OIL CHECK

$5.99

$

In Stock, only 2 left!

0

12

Honda 90105-ZV4-650

SEE PART DETAILS - SUP; BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

13

Honda 90113-ZV0-000

BOLT, HEX. (6X35)

Note: Use up to Frame SN 2311247.

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

Note: Use up to Frame SN 2311247.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90504-921-010

WASHER, PLAIN (6MM)

Note: Use up to Frame SN 2311247.

$1.99

$

In Stock, only 1 left!

0

16

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

Note: Use up to Frame SN 2311247.

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

18

Honda 90531-ZV0-000

WASHER, GEAR (1.00) (A)
(Superseded to 90531-ZVA-000)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90532-ZV0-000

WASHER, GEAR (1.05) (B)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90533-ZV0-000

WASHER, GEAR (1.10) (C)
(Superseded to 90531-ZVA-000)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90534-ZV0-000

WASHER, GEAR (1.15) (D)
(Superseded to 90531-ZVA-000)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90535-ZV0-000

WASHER, GEAR (1.20) (E)
(Superseded to 90531-ZVA-000)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 90755-SB2-000

E-RING (6MM)

Note: Use up to Frame SN 2311247.

$5.99

$

In Stock, only 1 left!

0

19

Honda 94540-06018

E-RING (6MM)

Note: Use from Frame SN 2311248.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90757-ZV0-000

SEE PART DETAILS - SUP; PIN, SPLIT (3MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 94201-30402

SEE PART DETAILS - PRI; PIN, SPLIT (3.0)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 91251-ZV0-003

SEAL, WATER (11X21X8)

$6.49

$

Usually ships in 3-6 days

0

22

Honda 91253-ZV0-003

SEAL, WATER (11X21X8)

$8.99

$

Usually ships in 3-6 days

0

23

Honda 92101-06012-4J

BOLT, HEX. (6X12)

Note: Use up to Frame SN 2311247.

$2.49

$

Usually ships in 3-6 days

0

24

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0

25

Honda 96100-60000-00

BEARING, RADIAL BALL (6000)

$11.99

$

Usually ships in 3-6 days

0

27

Honda 41005-ZW6-C11ZA

SEE PART DETAILS - PRI; CASE ASSY., GEAR *NH246* (L) (LOOSY GRAY)

Note: Use from Frame SN 2311248.

$600.99

$

Usually ships in 3-6 days

0

29

Honda 90201-HW1-671

BOLT, FLANGE (6X12)

Note: Use from Frame SN 2311248.

$3.49

$

Usually ships in 3-6 days

0

30

Honda 90215-HW1-671

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS)

Note: Use from Frame SN 2311248.

$1.49

$

Usually ships in 3-6 days

0
