BF2 DK0 SCAB (BZBJ) - Honda Outboard Engine, Made in Japan (SN: BZBJ-2300001 - BZBJ-9999999) CYLINDER Parts Diagram

Outboard Engine, Made in Japan

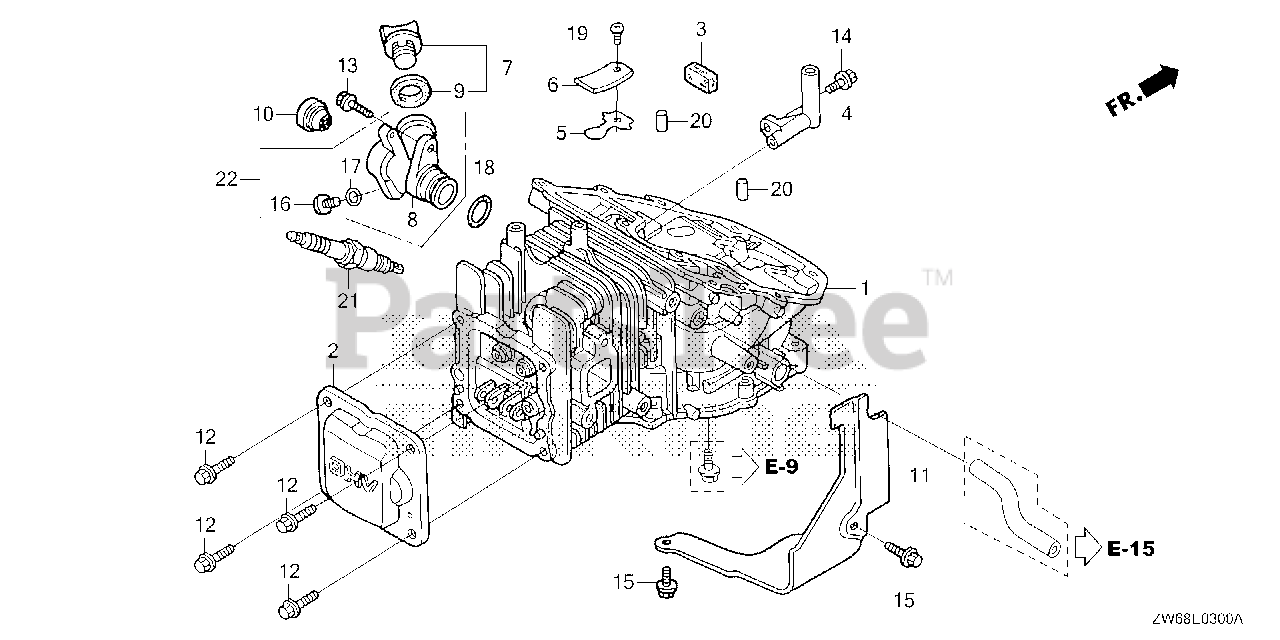

CYLINDER Parts Diagram

  • Title

1

Honda 04103-ZW6-000

SEE PART DETAILS - PRI; CYLINDER

Note: Use up to Engine SN 2043547.

$179.99

$

Usually ships in 3-6 days

0

1

Honda 04103-ZW6-000

SEE PART DETAILS - PRI; CYLINDER

Note: Use from Engine SN 2043548 to 2065848.

$179.99

$

Usually ships in 3-6 days

0

1

Honda 12100-ZW6-G01

SEE PART DETAILS - SUP; CYLINDER
(Superseded to 04103-ZW6-000)

Note: Use up to Engine SN 2043547.

$179.99

$

Usually ships in 3-6 days

0

1

Honda 12100-ZW6-G01

SEE PART DETAILS - SUP; CYLINDER
(Superseded to 04103-ZW6-000)

Note: Use from Engine SN 2043548 to 2065848.

$179.99

$

Usually ships in 3-6 days

0

1

Honda 12100-ZW6-T00

CYLINDER

Note: Use from Engine SN 2065849.

$542.99

$

Usually ships in 3-6 days

0

2

Honda 12311-ZW6-010ZA

COVER, HEAD *NH105* (MAT BLACK)
(Superseded to 12311-ZVA-010)

$18.99

$

Usually ships in 3-6 days

0

3

Honda 12367-ZE6-010

FILTER, BREATHER

$3.99

$

In Stock, only 1 left!

0

3

Honda 12367-ZE6-020

FILTER, BREATHER

$2.99

$

Usually ships in 3-6 days

0

4

Honda 15171-ZN4-000

PIPE, BREATHER

$7.49

$

In Stock, only 4 left!

0

5

Honda 15571-ZM7-003

VALVE, OIL OUTLET

$3.99

$

Usually ships in 3-6 days

0

6

Honda 15572-ZM7-000

PLATE, STOPPER

$2.49

$

In Stock, only 2 left!

0

7

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

8

Honda 15622-ZW6-010

EXTENSION, OIL LEVEL FINDER

Note: Use from Engine SN 2054408.

$51.99

$

Usually ships in 3-6 days

0

9

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 1 left!

0

10

Honda 15661-ZV0-003

FINDER, OIL LEVEL

$12.99

$

Usually ships in 3-6 days

0

11

Honda 19631-ZW6-010

SEE PART DETAILS - PRI; SHROUD

$12.99

$

Usually ships in 3-6 days

0

12

Honda 90002-ZW6-020

BOLT, FLANGE (5X12) (CT200)

Note: Use up to Engine SN 2032629.

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90006-ZW6-000

SEE PART DETAILS - SUP; BOLT, FLANGE (5X12)
(Superseded to 90009-ZVA-000)

Note: Use from Engine SN 2043548.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90009-ZVA-000

SEE PART DETAILS - PRI; BOLT, FLANGE (5X12) (SUS)

Note: Use from Engine SN 2043548.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90113-ZW9-000

BOLT, FLANGE (5X12) (CT200)
(Superseded to 90113-ZW9-020)

Note: Use from Engine SN 2032630 to 2043547.

$1.49

$

Usually ships in 3-6 days

0

13

Honda 90003-ZW6-010

BOLT, FLANGE (5X16)
(Superseded to 90003-ZVA-000)

$2.49

$

In Stock, only 2 left!

0

14

Honda 90008-ZM7-000

BOLT (4X10)

$2.49

$

In Stock, only 1 left!

0

15

Honda 90019-ZV1-010

BOLT, FLANGE (5X10) (CT200)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90101-ZW9-003

BOLT, OIL CHECK

Note: Use from Engine SN 2054408.

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90105-ZVA-000

SEE PART DETAILS - PRI; BOLT, OIL CHECK

$5.99

$

In Stock, only 2 left!

0

16

Honda 90105-ZV4-650

SEE PART DETAILS - SUP; BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

17

Honda 90471-580-000

GASKET (8MM)

Note: Use up to Engine SN 2054407.

$4.49

$

Usually ships in 3-6 days

0

17

Honda 91325-P4V-003

O-RING (6.9X1.5)

Note: Use from Engine SN 2054408.

$5.49

$

Usually ships in 3-6 days

0

18

Honda 91301-ZE9-003

O-RING (22.1X2.2)

$2.49

$

In Stock, Qty 12

0

19

Honda 93500-03005-0A

SCREW, PAN (3X5)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 96220-60150

ROLLER (6X15)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 98056-54757

SPARK PLUG (U14FSR-UB)

$8.49

$

In Stock, Qty 7

0

21

Honda 98056-54777

SPARK PLUG (CR4HSB)

$3.49

$

In Stock, Qty 5

0

22

Honda 04102-ZW6-000

EXTENSION KIT, OIL LEVEL FINDER

Note: Use up to Engine SN 2054407.

$53.99

$

Usually ships in 3-6 days

0
