BF2 DK0 LCHA (BZBF) - Honda Outboard Engine, Made in Japan (SN: BZBF-2300001 - BZBF-9999999) EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

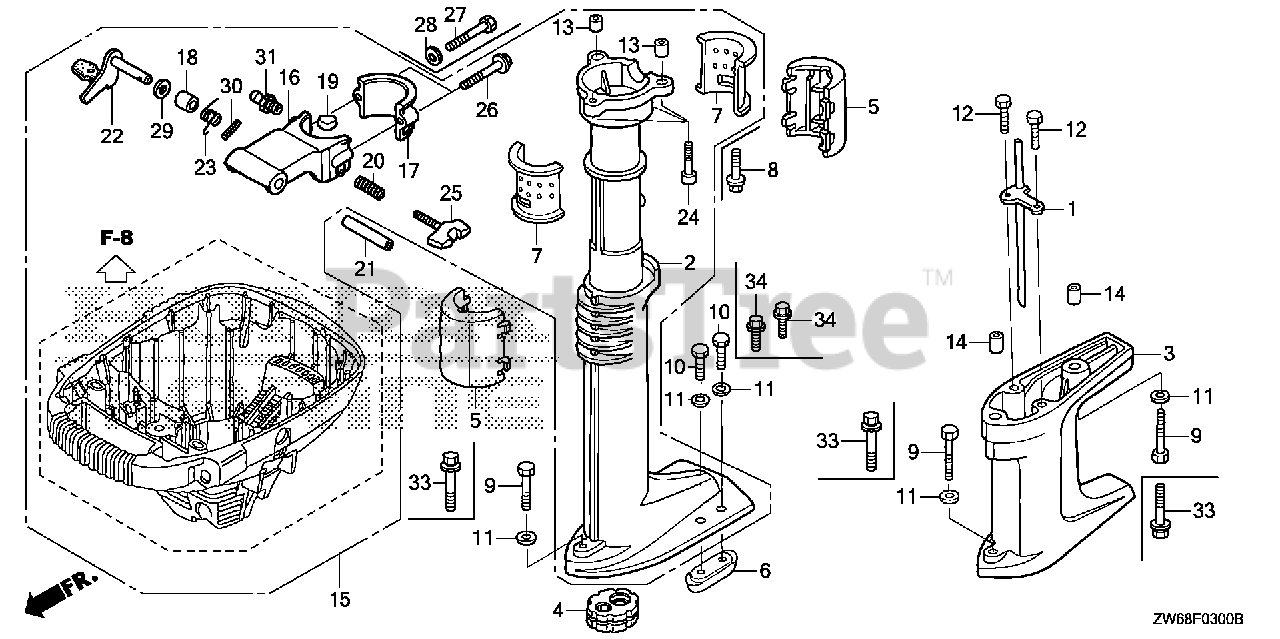

EXTENSION CASE Parts Diagram

  • Title

2

Honda 40201-ZW6-C00ZA

CASE, EXTENSION *NH246* (LOOSY GRAY)

Note: Use from Frame SN 2301001.

$340.99

$

Usually ships in 3-6 days

0

2

Honda 40201-ZW6-010ZA

CASE, EXTENSION *NH246* (LOOSY GRAY) (NA USE ALT:04402-ZW6-000ZA)

Note: Use up to Frame SN 2301000.

$

$

Currently unavailable

4

Honda 40210-ZVA-000

SEE PART DETAILS - PRI; BUSH, VERTICAL SHAFT (S)

$34.99

$

Usually ships in 3-6 days

0

4

Honda 40210-ZW6-000

SEE PART DETAILS - SUP; BUSH, VERTICAL SHAFT (S)
(Superseded to 40210-ZVA-000)

$34.99

$

Usually ships in 3-6 days

0

5

Honda 40218-ZW6-000

PROTECTOR, EXTENSION
(Superseded to 40218-ZVA-000)

$8.99

$

Usually ships in 3-6 days

0

6

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

$20.99

$

Usually ships in 3-6 days

0

7

Honda 50211-ZV0-000

LINER, SWIVEL CASE

Note: Use up to Frame SN 2301000.

$

$

Not available

8

Honda 90016-ZW9-000

BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

Note: Use up to Frame SN 2301000.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90104-ZVA-000

SEE PART DETAILS - PRI; BOLT-WASHER, SOCKET (6X30)

Note: Use from Frame SN 2301001.

$7.49

$

Usually ships in 3-6 days

0

9

Honda 90113-ZV0-000

BOLT, HEX. (6X35)

Note: Use up to Frame SN 2311247.

$5.49

$

Usually ships in 3-6 days

0

10

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

Note: Use up to Frame SN 2311247.

$3.49

$

Usually ships in 3-6 days

0

13

Honda 94301-08100

SEE PART DETAILS - PRI; PIN, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 04402-ZW6-010ZA

SEE PART DETAILS - PRI; CASE KIT, EXTENSION *NH246* (LOOSY GRAY)

Note: Use up to Frame SN 2301000.

$

$

Not available

16

Honda 50201-ZW6-000ZA

CASE, SWIVEL *NH246* (LOOSY GRAY)

Note: Use up to Frame SN 2301000.

$

$

Not available

17

Honda 50203-ZW6-000ZA

CAP, SWIVEL CASE *NH246* (LOOSY GRAY)

Note: Use up to Frame SN 2301000.

$29.99

$

Usually ships in 3-6 days

0

17

Honda 50203-ZW6-010ZA

CAP, SWIVEL CASE *NH246* (LOOSY GRAY)

Note: Use from Frame SN 2301001.

$24.99

$

Usually ships in 3-6 days

0

18

Honda 50204-ZV0-000

COLLAR, SWIVEL CASE
(Superseded to 50204-ZVA-000)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 50212-ZV0-010

BLOCK, FRICTION
(Superseded to 50212-ZVA-000)

Note: Use from Frame SN 2301001.

$5.99

$

Usually ships in 3-6 days

0

19

Honda 50212-ZW6-305

BLOCK, FRICTION

Note: Use up to Frame SN 2301000.

$8.49

$

Usually ships in 3-6 days

0

20

Honda 50233-ZV0-000

SPRING, FRICTION ADJUSTING
(Superseded to 50233-ZVA-000)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 50337-ZV0-000

COLLAR, DISTANCE

$16.99

$

Usually ships in 3-6 days

0

22

Honda 50511-ZV0-010

ARM, TILT LOCK
(Superseded to 50511-ZVA-000)

$14.99

$

Usually ships in 3-6 days

0

23

Honda 50516-ZVA-000

SEE PART DETAILS - PRI; SPRING, TILT LOCK

$2.49

$

Usually ships in 3-6 days

0

23

Honda 50516-ZV0-000

SEE PART DETAILS - SUP; SPRING, TILT LOCK
(Superseded to 50516-ZVA-000)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90104-ZVA-000

SEE PART DETAILS - PRI; BOLT-WASHER, SOCKET (6X30)

Note: Use from Frame SN 2301001.

$7.49

$

Usually ships in 3-6 days

0

25

Honda 90106-ZV0-000

BOLT, SWIVEL CASE
(Superseded to 90106-ZVA-000)

$9.49

$

Usually ships in 3-6 days

0

26

Honda 90114-HW1-671

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

Note: Use from Frame SN 2301001.

$5.49

$

Usually ships in 3-6 days

0

27

Honda 90116-881-000

BOLT, HEX. (8X40)

Note: Use up to Frame SN 2301000.

$5.99

$

Usually ships in 3-6 days

0

28

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 2301000.

$2.99

$

Usually ships in 3-6 days

0

29

Honda 90518-921-000

WASHER, PLAIN (8MM)

$1.99

$

In Stock, Qty 10

0

30

Honda 90752-ZW6-000

PIN, SPRING (2.5X20)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90951-ZV7-010

NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

33

Honda 90106-ZW6-C00

BOLT-WASHER (6X35)
(Superseded to 90109-ZVA-000)

Note: Use from Frame SN 2311248.

$4.49

$

Usually ships in 3-6 days

0

34

Honda 90215-HW1-671

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS)

$1.49

$

Usually ships in 3-6 days

0
