BF2 D5 SCHA (BZBF) - Honda Outboard Engine, Made in Japan (SN: BZBF-2100001 - BZBF-2199999) SWIVEL CASE Parts Diagram

Outboard Engine, Made in Japan

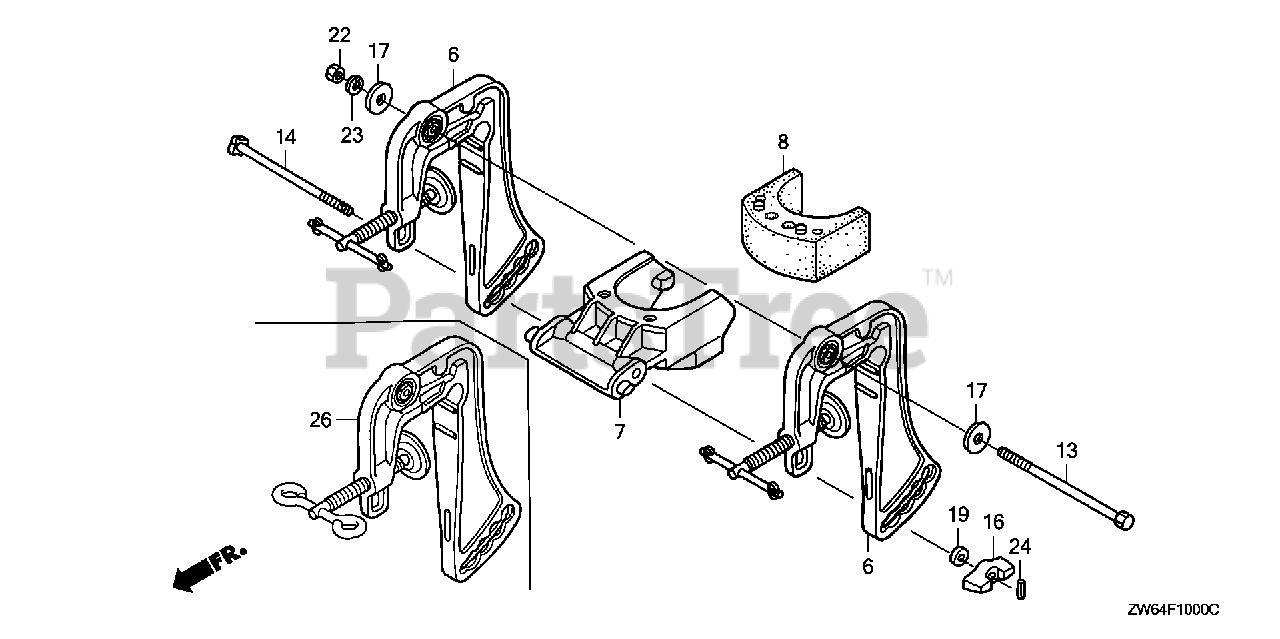

SWIVEL CASE Parts Diagram

  • Title

6

Honda 50300-ZVA-000ZA

SEE PART DETAILS - PRI; BRACKET, STERN *NH246* (LOOSY GRAY)

$267.99

$

Usually ships in 3-6 days

0

6

Honda 50300-ZW6-000ZA

SEE PART DETAILS - SUP; BRACKET, STERN *NH246* (LOOSY GRAY)
(Superseded to 50300-ZVA-000ZA)

$267.99

$

Usually ships in 3-6 days

0

6

Honda 50300-ZW6-020ZA

SEE PART DETAILS - SUP; BRACKET, STERN *NH246* (LOOSY GRAY)
(Superseded to 50300-ZVA-000ZA)

$267.99

$

Usually ships in 3-6 days

0

7

Honda 50302-ZVA-000

SEE PART DETAILS - PRI; RECEIVER, THRUST

$23.99

$

Usually ships in 3-6 days

0

7

Honda 50302-ZW6-000

SEE PART DETAILS - SUP; RECEIVER, THRUST
(Superseded to 50302-ZVA-000)

$23.99

$

Usually ships in 3-6 days

0

8

Honda 50303-ZV0-000

RUBBER, THRUST
(Superseded to 50303-ZVA-000)

$19.99

$

Usually ships in 3-6 days

0

13

Honda 90107-ZV0-000

BOLT, HEX. (8X110)

$7.49

$

Usually ships in 3-6 days

0

14

Honda 90108-ZV0-000

BOLT, DIAMOND (6X110)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90301-ZVA-000

SEE PART DETAILS - PRI; WINGNUT

$9.49

$

Usually ships in 3-6 days

0

16

Honda 90301-ZV0-000

SEE PART DETAILS - SUP; WINGNUT
(Superseded to 90301-ZVA-000)

$9.49

$

Usually ships in 3-6 days

0

17

Honda 90501-ZV0-000

WASHER, PLAIN (8MM)
(Superseded to 90501-ZVA-000)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90512-ZV0-000

WASHER, PLAIN (6MM)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 94001-08490-0S

NUT, HEX. (8MM)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 90751-ZW6-000

PIN, SPRING (2.5X8)

$1.99

$

Usually ships in 3-6 days

0
