BF2 D4 SA (BZBK) - Honda Outboard Engine, Made in Japan (SN: BZBK-2000001 - BZBK-2099999) HANDLEBAR + THROTTLE CABLE Parts Diagram

Outboard Engine, Made in Japan

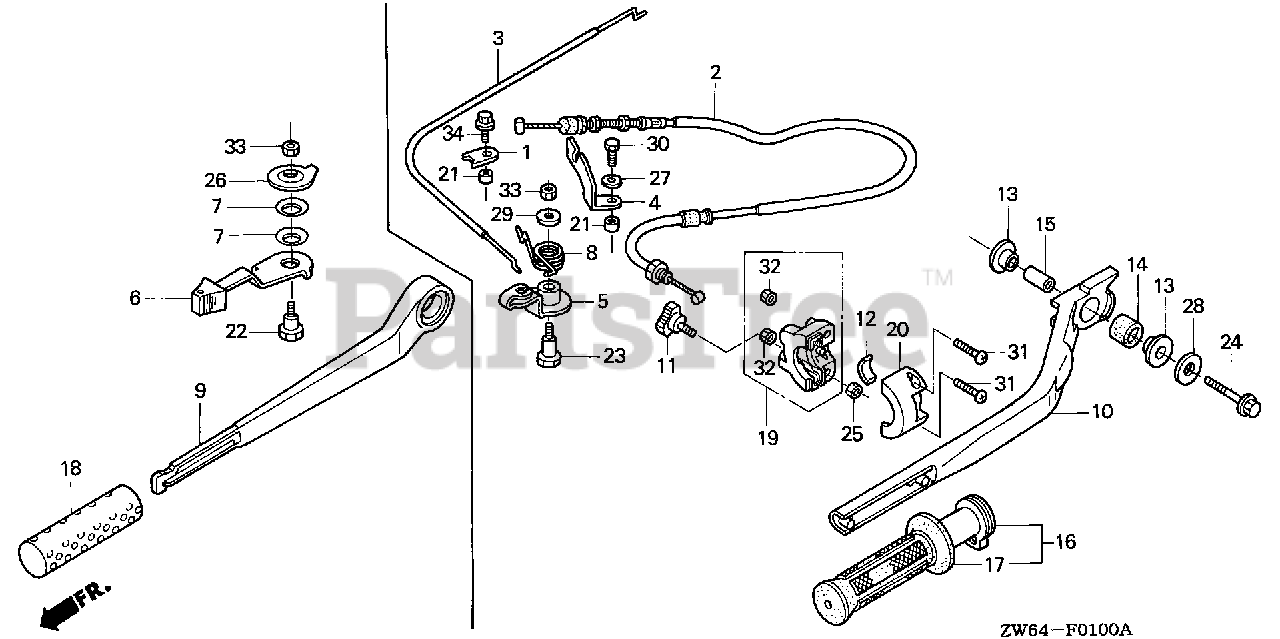

HANDLEBAR + THROTTLE CABLE Parts Diagram

  • Title
1

Honda 16576-ZW6-010

SEE PART DETAILS - PRI; HOLDER, CABLE

$10.99

$

Usually ships in 3-6 days

0

2

Honda 17910-ZVA-003

SEE PART DETAILS - PRI; CABLE A, THROTTLE

$43.99

$

Usually ships in 3-6 days

0

3

Honda 17920-ZVA-000

SEE PART DETAILS - PRI; CABLE B, THROTTLE

$7.99

$

Usually ships in 3-6 days

0

3

Honda 17920-ZW6-020

SEE PART DETAILS - SUP; CABLE, THROTTLE (B)
(Superseded to 17920-ZVA-000)

$7.99

$

Usually ships in 3-6 days

0

4

Honda 17921-ZV1-010

SEE PART DETAILS - SUP; HOLDER, CABLE
(Superseded to 17921-ZVA-000)

$6.99

$

Usually ships in 3-6 days

0

4

Honda 17921-ZV1-020

SEE PART DETAILS - PRI; HOLDER, CABLE
(Superseded to 17921-ZVA-000)

$6.99

$

Usually ships in 3-6 days

0

5

Honda 17930-ZW6-700

ARM, THROTTLE

$27.99

$

Usually ships in 3-6 days

0

8

Honda 17932-ZW6-700

SPRING, THROTTLE ARM
(Superseded to 17932-ZVA-000)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 53104-ZW6-700

BOLT, FRICTION
(Superseded to 53104-ZVA-000)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 53106-ZW6-700

BLOCK, THROTTLE FRICTION
(Superseded to 53106-ZVA-000)

$9.49

$

Usually ships in 3-6 days

0

16

Honda 53140-GW0-000

GRIP, THROTTLE

$20.99

$

Usually ships in 3-6 days

0

17

Honda 53165-GW0-000

GRIP, R. HANDLE

$

$

Currently unavailable

19

Honda 53167-ZW6-701

SEE PART DETAILS - PRI; HOUSING, THROTTLE (LOWER)
(Superseded to 53167-ZVA-000)

$16.99

$

Usually ships in 3-6 days

0

20

Honda 53168-GAH-A00

HOUSING, THROTTLE (UPPER)

$13.99

$

Usually ships in 3-6 days

0

21

Honda 77235-GC2-000

COLLAR, SEAT CATCH

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90101-ZW6-700

BOLT, HEX. (6X24)

$6.49

$

Usually ships in 3-6 days

0

25

Honda 90301-782-000

NUT, U (6MM)

Note: Use up to Frame SN 1200103.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94001-06490-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 1200104.

$2.99

$

In Stock, only 1 left!

0

29

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$2.99

$

In Stock, only 1 left!

0

30

Honda 92101-06014-4J

BOLT, HEX. (6X14)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 93500-05020-4J

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94001-06020-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 8

0

34

Honda 95701-06012-02

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0
