BF2 AW SAB (BAEB) - Honda Outboard Engine, Made in Japan (SN: BAEB-1100001 - BAEB-9999999) CYLINDER BARREL Parts Diagram

Outboard Engine, Made in Japan

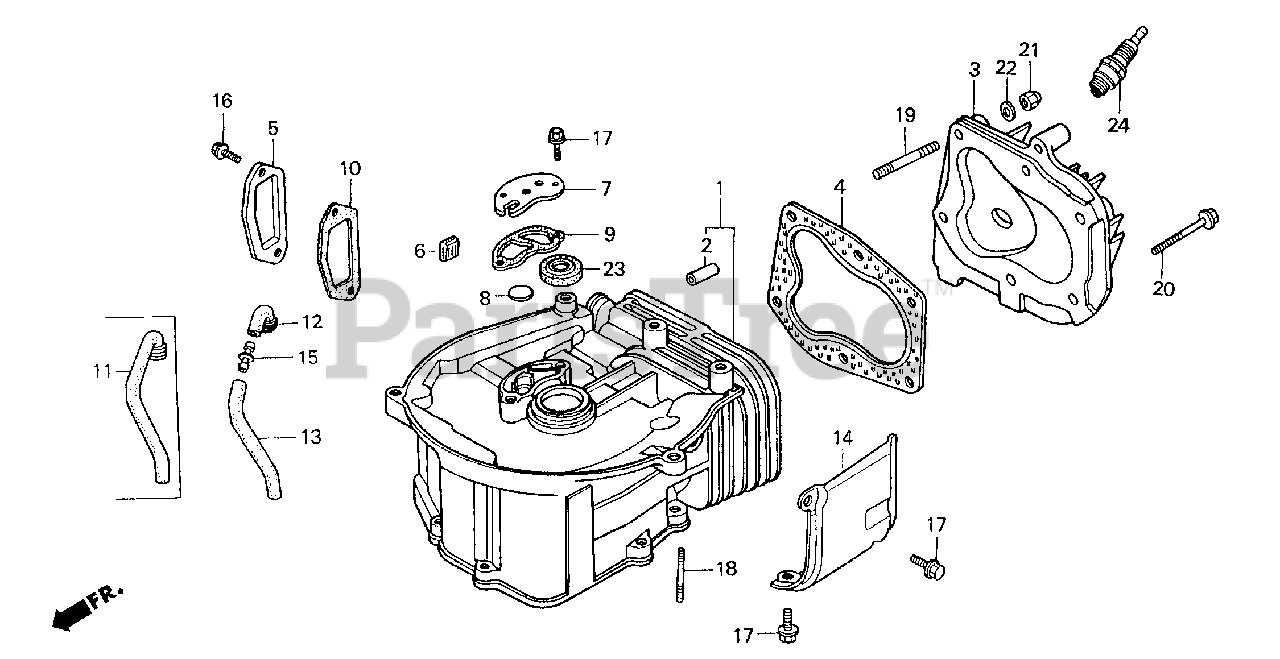

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12100-ZV0-841

CYLINDER

$

$

Not available

2

Honda 12133-ZV0-305

GUIDE, VALVE (OS)

$11.99

$

Usually ships in 3-6 days

0

3

Honda 12211-ZV0-010

SEE PART DETAILS - PRI; CYLINDER HEAD

$

$

Not available

4

Honda 12281-ZV0-000

GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12361-ZV0-000

COVER, TAPPET ROOM

$11.99

$

Usually ships in 3-6 days

0

6

Honda 12367-ZG1-013

SEE PART DETAILS - PRI; FILTER, BREATHER

$2.99

$

In Stock, only 1 left!

0

7

Honda 12370-ZV0-020

SEE PART DETAILS - PRI; CAP, BREATHER CHAMBER

$

$

Not available

8

Honda 12372-879-000

VALVE, BREATHER

$2.99

$

In Stock, only 2 left!

0

9

Honda 12373-ZV0-000

GASKET, BREATHER CAP

$2.49

$

Usually ships in 3-6 days

0

10

Honda 12375-ZG1-000

GASKET, TAPPET COVER

$2.99

$

In Stock, only 4 left!

0

12

Honda 15722-ZV0-000

TUBE A, BREATHER

$2.99

$

In Stock, only 1 left!

0

13

Honda 15723-ZV0-010

TUBE B, BREATHER

$

$

Not available

14

Honda 19631-ZV0-000

SHROUD

$13.99

$

Usually ships in 3-6 days

0

15

Honda 55102-166-000

JOINT, OIL TUBE

$5.99

$

In Stock, only 1 left!

0

16

Honda 90002-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (5X10)
(Superseded to 90058-ZY3-000)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90013-ZV0-010

BOLT, FLANGE (6X12)

$2.99

$

In Stock, only 3 left!

0

18

Honda 90063-ZV0-000

BOLT, STUD (6X24)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90065-ZV0-010

BOLT, STUD (6X46)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 95818-06035-02

BOLT, FLANGE (6X35)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90202-ZV0-000

NUT, CAP (6MM)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90512-921-010

SEE PART DETAILS - PRI; WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 91202-892-004

SEE PART DETAILS - PRI; OIL SEAL (17X30X6) (NOK)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 98073-54744

SPARK PLUG (BMR4A) (NGK)

$3.99

$

In Stock, Qty 11

0
