BF2 AM SAB (BAEB) - Honda Outboard Engine, Made in Japan (SN: BAEB-1000002 - BAEB-9999999) EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

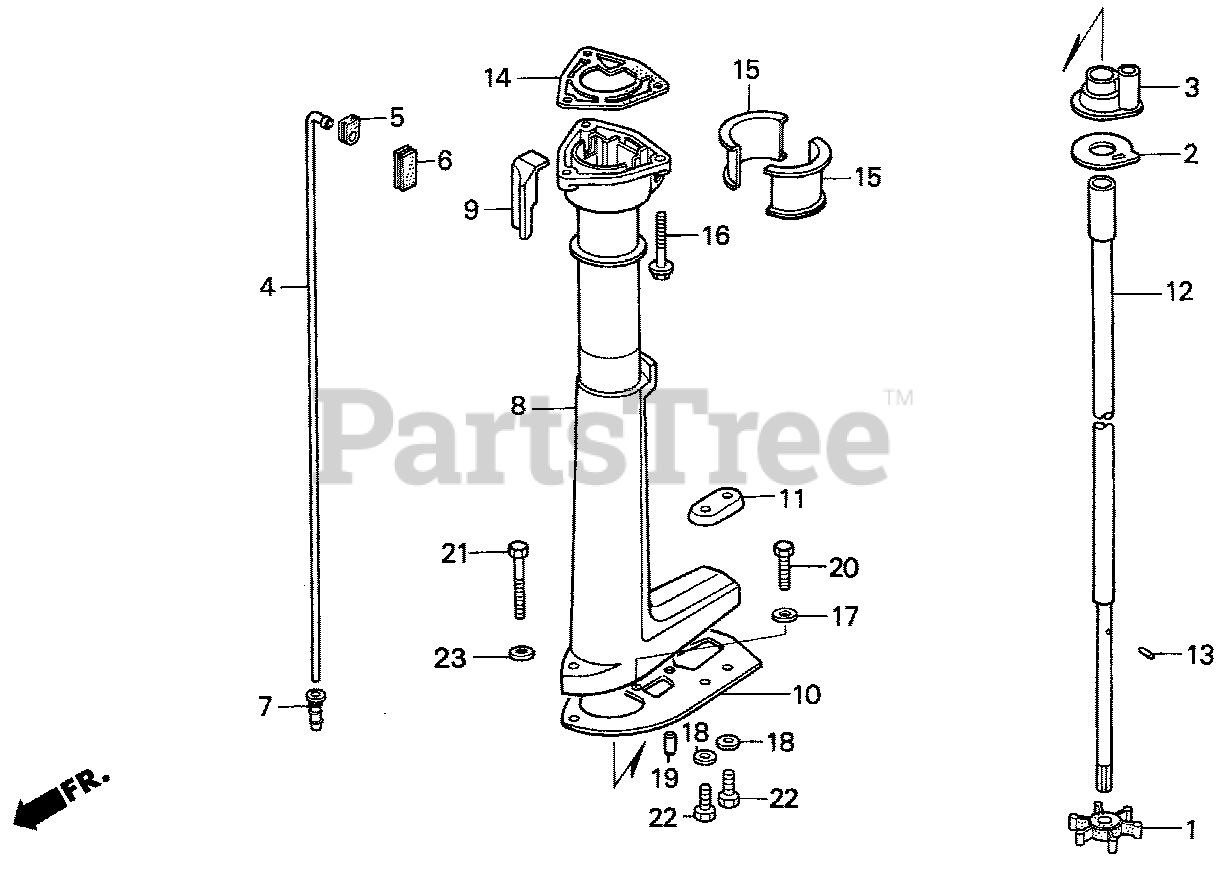

EXTENSION CASE Parts Diagram

  • Title

1

Honda 19211-ZV0-003

IMPELLER, WATER PUMP

$33.99

$

Usually ships in 3-6 days

0

2

Honda 19231-ZV0-000

COVER, IMPELLER

$

$

Not available

3

Honda 19233-ZV0-000

HOLDER, IMPELLER COVER

$

$

Not available

4

Honda 19251-ZV0-000

TUBE, WATER

$

$

Not available

5

Honda 19252-ZV0-000

RUBBER A, WATER SEAL

$

$

Not available

6

Honda 19253-ZV0-000

RUBBER B, WATER SEAL

$

$

Not available

7

Honda 19254-ZV0-000

GROMMET, WATER PUMP

$

$

Not available

8

Honda 40201-ZV0-842ZB

CASE, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

9

Honda 40203-ZV0-000

GUIDE, EX.

$10.99

$

Usually ships in 3-6 days

0

10

Honda 40205-ZV0-842ZB

PLATE, CAVITATION *NH282MU* (OYSTER SILVER METALLIC-U)

$48.99

$

Usually ships in 3-6 days

0

11

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

$20.99

$

Usually ships in 3-6 days

0

12

Honda 41110-ZV0-000

SHAFT, VERTICAL

$

$

Not available

13

Honda 41122-ZV0-000

PIN, VERTICAL SHAFT

$1.99

$

Usually ships in 3-6 days

0

14

Honda 50205-ZV0-850

SEE PART DETAILS - PRI; GASKET, CASE (UPPER)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90123-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X32)
(Superseded to 90123-ZV0-010)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

18

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90751-ZV0-000

PIN, DOWEL (8X17)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90113-ZV0-000

SEE PART DETAILS - PRI; BOLT, HEX. (6X35)

$5.49

$

Usually ships in 3-6 days

0

22

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0
