BF2 AM SA (BAES) - Honda Outboard Engine, Made in Japan (SN: BAES-1200001 - BAES-9999999) RECOIL STARTER (2) Parts Diagram

Outboard Engine, Made in Japan

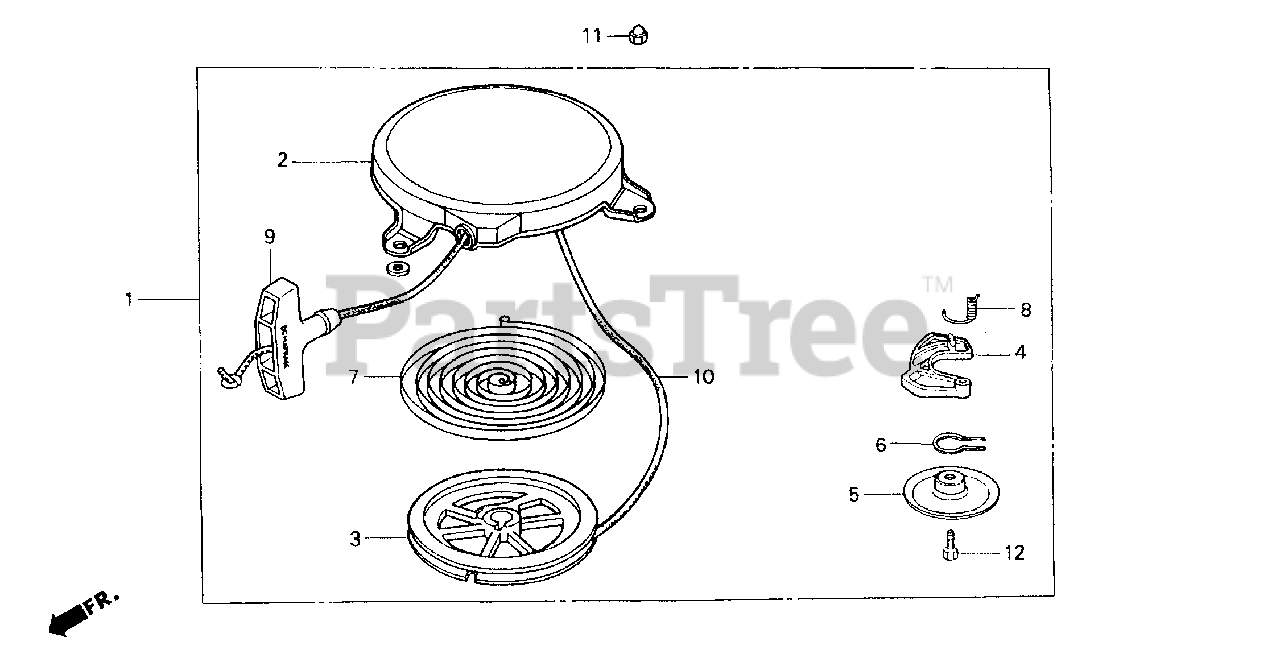

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-ZV0-004

STARTER ASSY., RECOIL

Note: Use from Engine SN 1213768.

$

$

Not available

2

Honda 28410-ZV0-004

CASE, RECOIL STARTER

Note: Use from Engine SN 1213768.

$149.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZG0-004

REEL, RECOIL STARTER

Note: Use from Engine SN 1213768.

$35.99

$

Usually ships in 3-6 days

0

4

Honda 28422-896-010

SEE PART DETAILS - PRI; RATCHET, STARTER

Note: Use from Engine SN 1213768.

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-ZV0-004

PLATE, FRICTION

Note: Use from Engine SN 1213768.

$4.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZV0-004

SPRING, FRICTION

Note: Use from Engine SN 1213768.

$5.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

Note: Use from Engine SN 1213768.

$23.99

$

In Stock, only 1 left!

0

8

Honda 28443-ZV0-004

SPRING, RETURN

Note: Use from Engine SN 1213768.

$9.99

$

Usually ships in 3-6 days

0

9

Honda 28461-878-810

SEE PART DETAILS - PRI; KNOB, STARTER

Note: Use from Engine SN 1213768.

$

$

Not available

10

Honda 28462-ZV0-004

ROPE, RECOIL STARTER (#4X65") (NA USE ALT:08540-ZG921-11)

Note: Use from Engine SN 1213768.

$

$

Currently unavailable

11

Honda 90202-ZV0-000

NUT, CAP (6MM)

Note: Use from Engine SN 1213768.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 92101-06012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X20)

Note: Use from Engine SN 1213768.

$1.99

$

Usually ships in 3-6 days

0
