BF2 AK LA (BAEL) - Honda Outboard Engine, Made in Japan (SN: BAEL-1100001 - BAEL-9999999) CARBURETOR Parts Diagram

Outboard Engine, Made in Japan

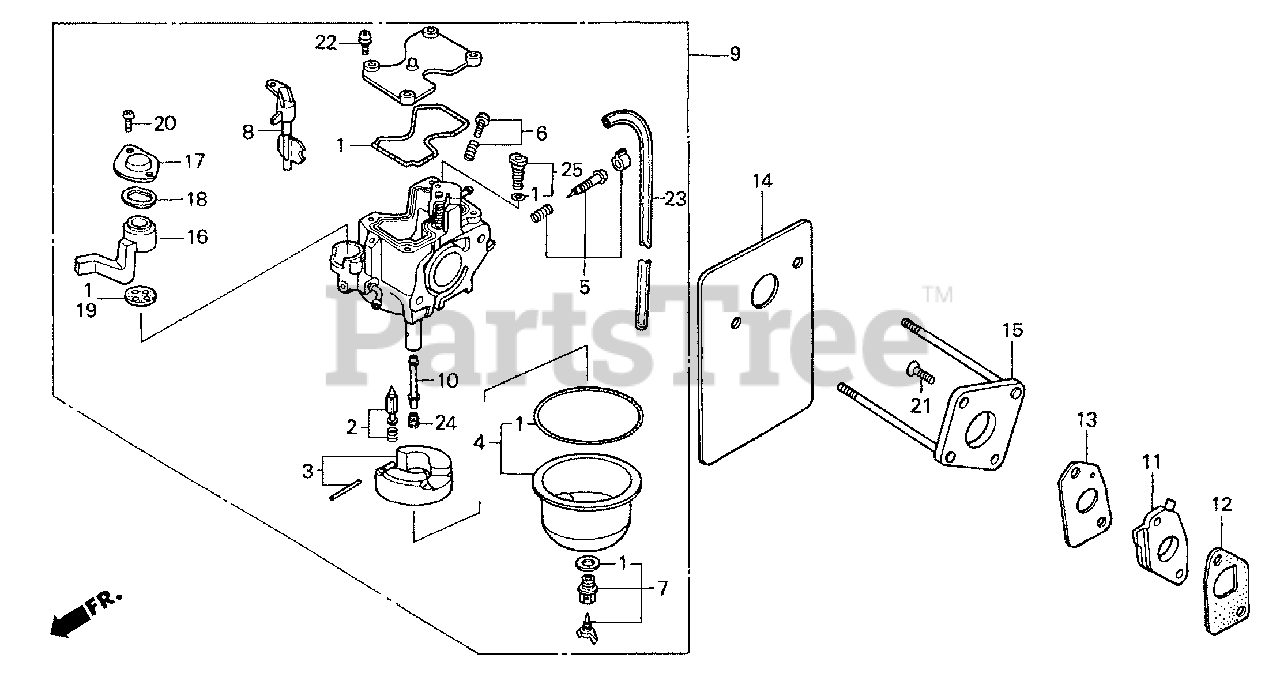

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZV0-015

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-ZV0-025)

Note: Use up to Engine SN BF22A E.

$21.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZV0-025

SEE PART DETAILS - PRI; GASKET SET

Note: Use up to Engine SN BF22A E.

$21.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZV0-025

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BF22A F.

$21.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZV0-005

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT

$

$

Currently unavailable

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

6

Honda 16016-ZV0-025

SEE PART DETAILS - PRI; SCREW SET

$

$

Not available

7

Honda 16029-ZV0-A00

SEE PART DETAILS - PRI; SCREW SET

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZV0-005

LEVER SET, CHOKE

$

$

Not available

9

Honda 16100-ZV0-A04

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF22B D)

$

$

Currently unavailable

9

Honda 16100-ZV0-075

SEE PART DETAILS - SUP; CARBURETOR ASSY.
(Superseded to 16100-ZV0-E21)

Note: Use up to Engine SN 1103218.

$80.99

$

In Stock, only 1 left!

0

10

Honda 16166-ZV0-015

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

11

Honda 16211-ZV0-000

INSULATOR, CARBURETOR

$

$

Not available

12

Honda 16212-ZV0-850

SEE PART DETAILS - PRI; GASKET, INSULATOR

$

$

Not available

13

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

14

Honda 16221-ZV0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZV0-850)

$

$

Not available

14

Honda 16221-ZV0-850

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$

$

Not available

15

Honda 16225-ZV0-000

PLATE, CARBURETOR JOINT

$

$

Not available

16

Honda 16953-ZV0-025

SEE PART DETAILS - SUP; LEVER, VALVE

$

$

Currently unavailable

17

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, VALVE LEVER

$3.99

$

In Stock, only 1 left!

0

19

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BF22A E.

$4.49

$

In Stock, Qty 7

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

Note: Use up to Engine SN BF22A E.

$4.49

$

In Stock, Qty 7

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

Note: Use from Engine SN BF22A F.

$4.49

$

In Stock, Qty 7

0

20

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8)

Note: Use up to Engine SN BF22A E.

$0.99

$

In Stock, Qty 8

0

20

Honda 93500-03008-0G

SEE PART DETAILS - PRI; SCREW, PAN (3X8)

Note: Use from Engine SN BF22A F.

$

$

Not available

21

Honda 93600-05020-0B

SCREW, FLAT (5X20)

$

$

Not available

22

Honda 93892-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 95003-09001-60M

SEE PART DETAILS - PRI; BULK HOSE, VINYL (4.5X8X1000) (4.5X8X750)

$5.49

$

Usually ships in 3-6 days

0

24

Honda 99101-187-0600

JET, MAIN (#60)

$9.49

$

Usually ships in 3-6 days

0

24

Honda 99101-187-0620

SEE PART DETAILS - SUP; JET, MAIN (#62)
(Superseded to 99101-ZG0-0620)

$7.99

$

In Stock, Qty 9

0

24

Honda 99101-187-0650

SEE PART DETAILS - SUP; JET, MAIN (#65)

$

$

Not available

25

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 1 left!

0
