BF2 AH LA (BAEL) - Honda Outboard Engine, Made in Japan (SN: BAEL-1000001 - BAEL-9999999) FUEL TANK Parts Diagram

Outboard Engine, Made in Japan

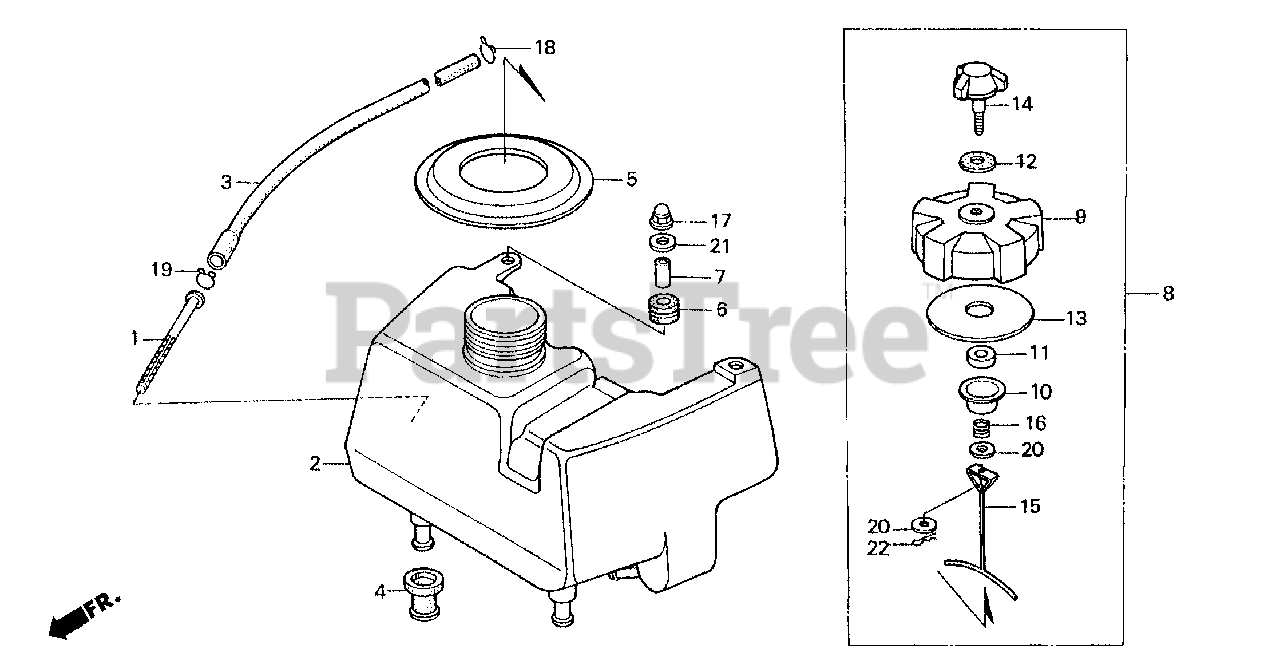

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL

$9.49

$

In Stock, only 2 left!

0

2

Honda 17510-ZV0-010

SEE PART DETAILS - PRI; TANK, FUEL

$

$

Not available

3

Honda 17512-ZV0-000

TUBE, FUEL

$

$

Not available

4

Honda 17514-ZV0-000

RUBBER C, TANK MOUNTING

$4.49

$

Usually ships in 3-6 days

0

5

Honda 17515-ZV0-000

RUBBER A, TANK MOUNTING

$7.99

$

Usually ships in 3-6 days

0

6

Honda 17516-ZV0-000

RUBBER B, TANK MOUNTING

$4.49

$

In Stock, only 2 left!

0

7

Honda 17517-ZV0-000

COLLAR, TANK MOUNTING

$4.49

$

Usually ships in 3-6 days

0

8

Honda 17620-ZV0-010

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZV0-050)

$20.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZV0-020

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZV0-050)

$20.99

$

Usually ships in 3-6 days

0

9

Honda 17621-ZV0-010

SEE PART DETAILS - SUP; BODY, FUEL CAP
(Superseded to 17621-ZV0-030)

$8.99

$

Usually ships in 3-6 days

0

9

Honda 17621-ZV0-020

SEE PART DETAILS - SUP; BODY, FUEL CAP
(Superseded to 17621-ZV0-030)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 17622-ZV0-000

INNER, FUEL CAP

$4.49

$

Usually ships in 3-6 days

0

11

Honda 17623-ZV0-000

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 3 left!

0

12

Honda 17624-ZV0-000

GASKET, VALVE

$1.99

$

Usually ships in 3-6 days

0

13

Honda 17625-ZV0-000

GASKET, FUEL CAP

$4.49

$

In Stock, only 3 left!

0

14

Honda 17626-ZV0-010

SEE PART DETAILS - SUP; VALVE, BREATHER

$7.99

$

Usually ships in 3-6 days

0

15

Honda 17628-ZV0-000

LINK, FUEL CAP

$4.49

$

Usually ships in 3-6 days

0

16

Honda 17629-ZV0-000

SPRING, FUEL CAP

$3.49

$

In Stock, only 1 left!

0

17

Honda 90202-ZV0-000

NUT, CAP (6MM)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90602-ZV0-000

CLIP, TUBE (B10)

$

$

Not available

19

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (C12)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94101-04200

WASHER, FLAT (4MM)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 94103-06200

WASHER, PLAIN (6MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94251-04000

PIN, LOCK (4MM)

$0.99

$

Usually ships in 3-6 days

0
