BF2.3 DK2 SCHA (BAVJ) - Honda Outboard Engine, Made in Japan (SN: BAVJ-2300001 - BAVJ-9999999) ENGINE COVER Parts Diagram

Outboard Engine, Made in Japan

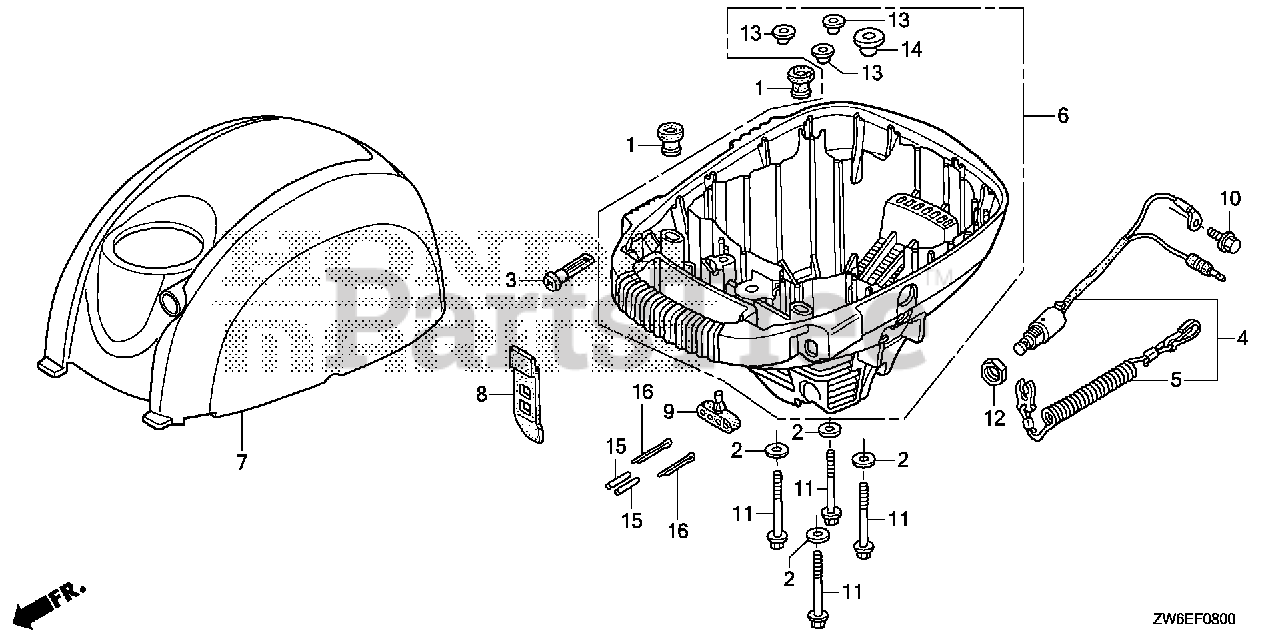

ENGINE COVER Parts Diagram

  • Title

1

Honda 17514-ZV0-000

RUBBER, TANK MOUNTING (C)

$4.49

$

Usually ships in 3-6 days

0

2

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

3

Honda 17951-ZG1-000

KNOB, CHOKE
(Superseded to 17951-ZVA-000)

$8.99

$

Usually ships in 3-6 days

0

4

Honda 35180-ZW6-023

SWITCH ASSY., EMERGENCY STOP

$79.99

$

Usually ships in 3-6 days

0

5

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

$24.99

$

Usually ships in 3-6 days

0

6

Honda 40100-ZVA-000

SEE PART DETAILS - PRI; CASE, ENGINE (LOWER)

$81.99

$

Usually ships in 3-6 days

0

6

Honda 40100-ZW6-050

SEE PART DETAILS - SUP; CASE, ENGINE (LOWER)
(Superseded to 40100-ZVA-000)

$81.99

$

Usually ships in 3-6 days

0

7

Honda 63100-ZW6-E40ZC

COVER, ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC)
(Superseded to 63100-ZVA-010ZA)

$156.99

$

Usually ships in 3-6 days

0

8

Honda 63103-ZV0-000

BELT, ENGINE COVER
(Superseded to 63103-ZVA-000)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 88111-ZV0-000

HOLDER, PARTS

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90019-ZW4-000

BOLT, FLANGE (5X10) (CT200)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90103-ZVA-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X60)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90103-ZW6-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X60)
(Superseded to 90103-ZVA-000)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

13

Honda 91551-ZW6-000

COLLAR (6X4)
(Superseded to 91551-ZVA-000)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 91552-ZW6-000

COLLAR, ENGINE CASE (LOWER)
(Superseded to 91552-ZVA-000)

$6.49

$

Usually ships in 3-6 days

0

15

Honda 58131-ZV0-000

PIN, SHEAR

Note: Use from Frame SN 2317651.

$4.49

$

In Stock, only 2 left!

0

15

Honda 58131-ZV0-000

PIN, SHEAR

Note: Use up to Frame SN 2317650.

$4.49

$

In Stock, only 2 left!

0

16

Honda 90757-ZV0-000

PIN, SPLIT (3MM)

Note: Use from Frame SN 2317651.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90757-ZV0-000

PIN, SPLIT (3MM)

Note: Use up to Frame SN 2317650.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 94201-30402

PIN, SPLIT (3.0)

Note: Use from Frame SN 2317651.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 94201-30402

PIN, SPLIT (3.0)

Note: Use up to Frame SN 2317650.

$2.99

$

Usually ships in 3-6 days

0
