BF2.3 DK2 LCHA (BAVJ) - Honda Outboard Engine, Made in Japan (SN: BAVJ-2300001 - BAVJ-9999999) CARBURETOR Parts Diagram

Outboard Engine, Made in Japan

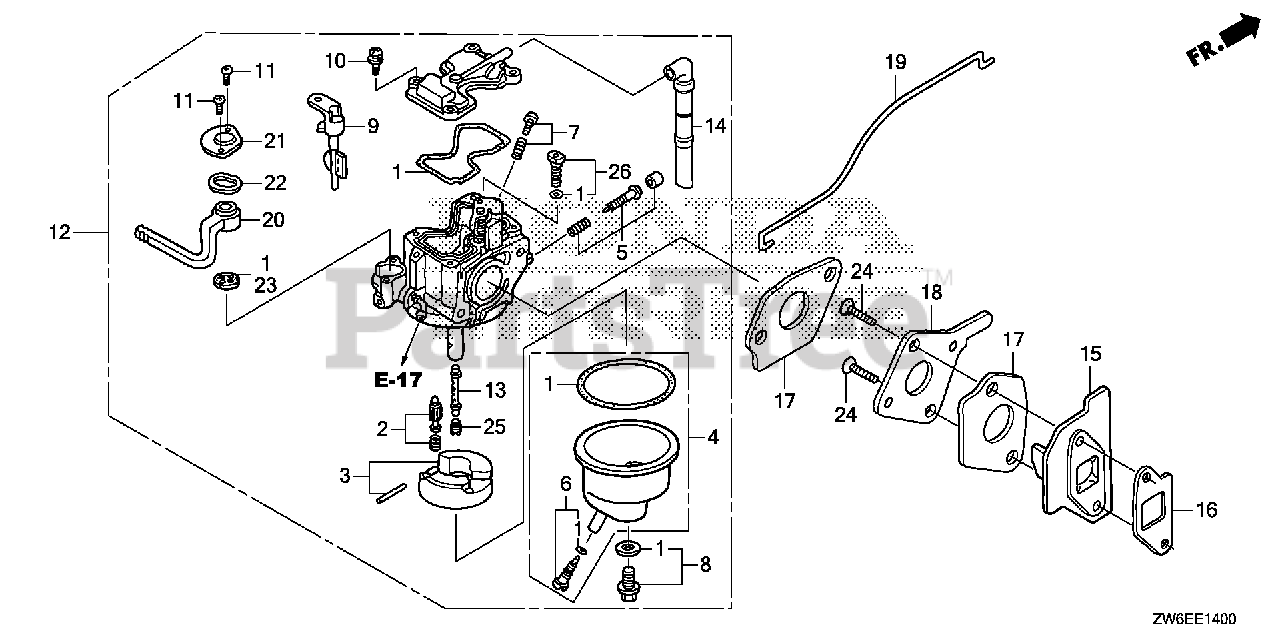

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZW6-611

GASKET SET

$16.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZW6-G01

CHAMBER SET, FLOAT

$39.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZW6-E11

SCREW SET

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZW6-621

SCREW SET

$13.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZW6-003

SCREW SET, DRAIN

$

$

Not available

7

Honda 16028-ZW6-003

SCREW SET

$13.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16044-ZV0-A01

LEVER SET, CHOKE

$34.99

$

Usually ships in 3-6 days

0

10

Honda 16081-ZV1-A00

SCREW, PAN

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16082-ZW6-003

SCREW, PAN (3X6)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 16100-ZW6-E11

CARBURETOR ASSY. (BF33L A)
(Superseded to 16100-ZW6-E12)

$117.99

$

Usually ships in 3-6 days

0

13

Honda 16166-ZW6-G01

NOZZLE, MAIN

$19.99

$

Usually ships in 3-6 days

0

14

Honda 16195-ZW6-000

TUBE ASSY., AIR VENT

$9.99

$

Usually ships in 3-6 days

0

15

Honda 16211-ZN4-000

INSULATOR, CARBURETOR

$9.49

$

In Stock, only 1 left!

0

16

Honda 16212-ZM7-000

GASKET, INSULATOR

$2.49

$

In Stock, Qty 5

0

17

Honda 16221-ZW6-000

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZVA-000)

$1.49

$

In Stock, only 2 left!

0

18

Honda 16225-ZW6-G00

PLATE, CARBURETOR JOINT
(Superseded to 16225-ZVA-000)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 16674-ZW6-000

ROD, CHOKE
(Superseded to 16674-ZVA-000)

$8.49

$

Usually ships in 3-6 days

0

20

Honda 16953-ZW6-003

LEVER, PETCOCK

$9.99

$

Usually ships in 3-6 days

0

21

Honda 16954-ZW6-003

PLATE, LEVER SETTING

$6.49

$

Usually ships in 3-6 days

0

22

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

In Stock, only 1 left!

0

23

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

24

Honda 90183-ZW4-000

SCREW, FLAT (5X20)
(Superseded to 90012-ZVA-000)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

25

Honda 99101-ZG0-0580

JET, MAIN (#58)

Note: (Optional).

$8.99

$

In Stock, Qty 12

0

25

Honda 99101-ZG0-0600

JET, MAIN (#60)

Note: (Optional).

$8.49

$

In Stock, only 2 left!

0

25

Honda 99101-ZG0-0620

SEE PART DETAILS - PRI; JET, MAIN (#62)

$7.99

$

In Stock, Qty 9

0

26

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 3 left!

0
