BF2.3 DH SCHA (BABC) - Honda Outboard Engine, Made in China (SN: BABC-1000001 - BABC-9999999) HANDLEBAR Parts Diagram

Outboard Engine, Made in China

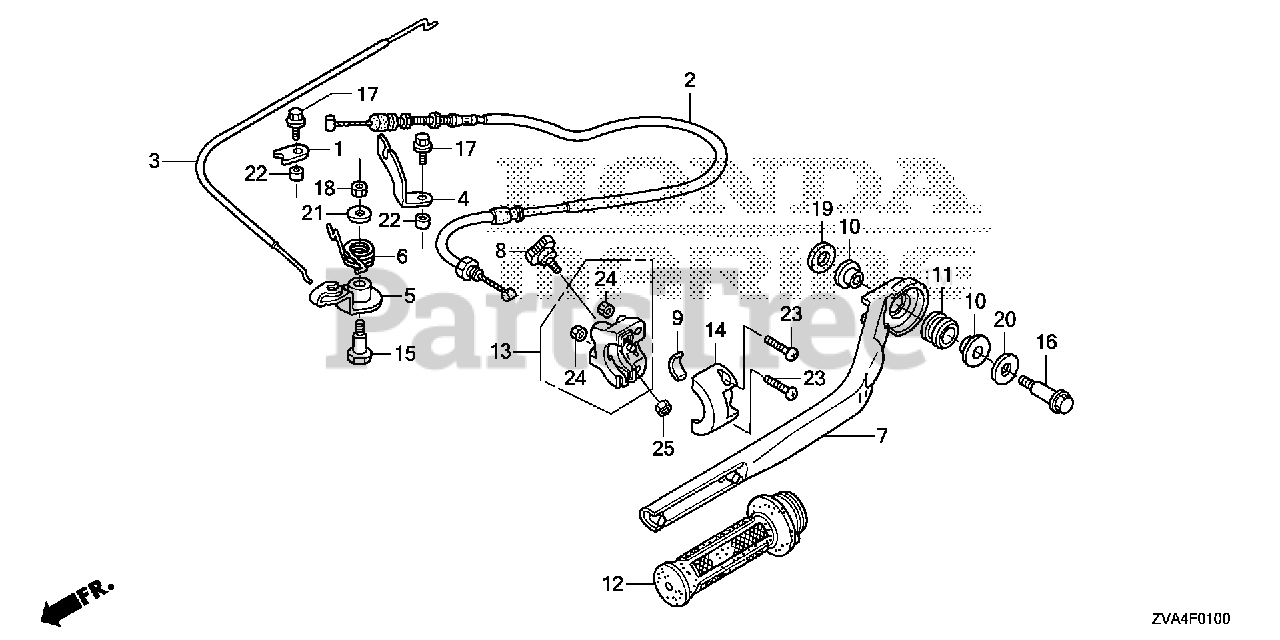

HANDLEBAR Parts Diagram

  • Title

1

Honda 16576-ZVA-000

HOLDER, CABLE

$4.49

$

Usually ships in 3-6 days

0

2

Honda 17910-ZVA-003

SEE PART DETAILS - PRI; CABLE A, THROTTLE

$48.99

$

Usually ships in 3-6 days

0

3

Honda 17920-ZVA-000

SEE PART DETAILS - PRI; CABLE B, THROTTLE

$8.99

$

Usually ships in 3-6 days

0

4

Honda 17921-ZVA-000

HOLDER, CABLE

$7.99

$

Usually ships in 3-6 days

0

5

Honda 17930-ZVA-000

ARM, THROTTLE

$24.99

$

Usually ships in 3-6 days

0

6

Honda 17932-ZVA-000

SPRING, THROTTLE ARM

$3.49

$

Usually ships in 3-6 days

0

7

Honda 53101-ZW6-C00ZA

SEE PART DETAILS - PRI; HANDLEBAR *NH246* (LOOSY GRAY)

$138.99

$

In Stock, only 1 left!

0

8

Honda 53104-ZVA-000

BOLT, FRICTION

$10.99

$

Usually ships in 3-6 days

0

9

Honda 53106-ZVA-000

BLOCK, THROTTLE FRICTION

$10.99

$

Usually ships in 3-6 days

0

10

Honda 53107-ZVA-000

COLLAR, HANDLE MOUNTING

$4.49

$

Usually ships in 3-6 days

0

11

Honda 53108-ZVA-000

RUBBER, HANDLE MOUNTING
(Superseded to 53108-ZVA-010)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 53108-ZVA-010

RUBBER, HANDLE MOUNTING

$3.49

$

Usually ships in 3-6 days

0

12

Honda 53140-ZVA-000

GRIP, THROTTLE

$27.99

$

In Stock, only 1 left!

0

13

Honda 53167-ZVA-000

HOUSING, THROTTLE (LOWER)

$18.99

$

Usually ships in 3-6 days

0

14

Honda 53168-ZVA-000

HOUSING, THROTTLE (UPPER)

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90101-ZVA-000

BOLT, HEX. (6X24)

$6.49

$

Usually ships in 3-6 days

0

16

Honda 90102-ZVA-000

BOLT, SPECIAL (8X42)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90117-ZVA-000

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90302-ZVA-000

NUT, HEX. (6MM)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90501-ZVA-000

WASHER, PLAIN (8MM)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90509-ZVA-000

WASHER (32MM)

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90511-ZVA-000

WASHER, PLAIN (6MM)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 91553-ZVA-000

COLLAR (6.2X8.5X5)

Note: Use up to Frame SN 1011008.

$1.99

$

Usually ships in 3-6 days

0

22

Honda 91553-ZVA-010

SEE PART DETAILS - PRI; COLLAR (6.2X8.5X5)

Note: Use from Frame SN 1011009.

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90108-ZVA-000

SCREW-WASHER (5X20)

Note: Use from Frame SN 1010408 to 1011429.

$

$

Currently unavailable

23

Honda 90108-ZVA-010

SCREW-WASHER (5X22)

Note: Use from Frame SN 1011430.

$2.99

$

Usually ships in 3-6 days

0

23

Honda 93500-05020-4J

SCREW, PAN (5X20)

Note: Use up to Frame SN 1010407.

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$3.49

$

In Stock, only 1 left!

0
